V/L
Vertical

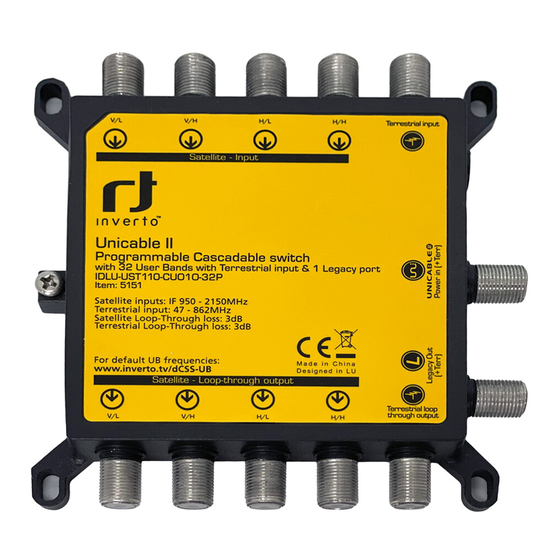

Unicable II Programmable/cascadable
multiswitch with 32UB, 4 Universal/
Wideband Satellite inputs & 1 Terrestrial input
IDLU-UWT110-CUO1O-32P
Item: 5294
Satellite inputs:
- Universal Quattro LNB: 950 - 2150MHz
- 2x Wideband LNBs: 300 - 2350MHz
Terrestrial input: 47 - 862MHz
Satellite Loop-Through loss: 3dB
Terrestrial Loop-Through loss: 3dB
For default UB settings:
www.inverto.tv/dCSS-UB
Vertical
V/L
Unicable
Programmable/cascadable multiswitch with 32 User Bands,
4 Universal/Wideband Satellite inputs & 1 Terrestrial input
IDLU-UWT110-CUO1O-32P
Item: 5294
Installation manual
V/H
H/L
A
Satellite
C
Vertical
Horizontal
Satellite - Input
Default setup
Programmable setup
Satellite - Loop-through output
Horizontal
Vertical
Satellite A or C
Satellite B or D
V/H
H/L
II Multiswitch
™
H/H
Terrestrial
input
B
Satellite
D
Horizontal
M a d e i n C h i n a
D e s i g n e d i n L U
Horizontal
Terrestrial loop
through output
H/H
1
Advertisement
Table of Contents
Related Manuals for Inverto Unicable II
Summary of Contents for Inverto Unicable II
- Page 1 Satellite Satellite Vertical Horizontal Vertical Horizontal Satellite - Input Unicable II Programmable/cascadable multiswitch with 32UB, 4 Universal/ Wideband Satellite inputs & 1 Terrestrial input IDLU-UWT110-CUO1O-32P Item: 5294 Satellite inputs: - Universal Quattro LNB: 950 - 2150MHz - 2x Wideband LNBs: 300 - 2350MHz...
-
Page 3: Warranty
Unicable/Unicable II (EN50494/EN50607) protocols, however it switches to operate in a Unicable II mode as soon as it receives a EN50494 or EN50607 DiSEqC command and the 32 User Bands will be shared over the two output ports (“shared User Bands”... - Page 4 Note: For optimal performances, the loop through outputs that are not used shall be terminated with 75ohm DC-decoupled terminating resistors. The following diagram describes a single satellite reception installation based on the default configuration of the product:...
- Page 5 Vertical Horizontal Vertical Horizontal Satellite - Input Unicable II Programmable/cascadable multiswitch with 32UB, 4 Universal/ Wideband Satellite inputs & 1 Terrestrial input The default frequencies, supported protocols and PINs of the User Bands are listed below (default IDLU-UWT110-CUO1O-32P Item: 5294...
- Page 6 Programmable configurations using Inverto’s programmer and PC software The following diagrams describe installation receiving two and four satellites using satellites over two wideband LNBs:...
- Page 7 Connect the cables from the Wideband LNBs to the input connectors marked with Sat A/C Vertical and Horizontal and Sat B/D Vertical and Horizontal (pay attention to identification of the Wideband LNB connectors). Note: The four satellite installation requires the output ports of the two Multiswitch units to be connected to an external combiner as shown in the diagram (to provide for DiSEqC 2.0 com- munication, the combiner should support bidirectional pass through for DC and 22kHz signals).
- Page 8 The following diagram describes reception of a single satellite feed by up to 16 Unicable (EN50494) receivers: For optimized performance, please follow the recommendations below: Use the highest frequency for a wall socket located the nearest to the multiswitch and use the lowest frequency for wall socket located farest to the multiswitch.
-
Page 9: Technical Parameters
Outputs 4 x Loopthrough satellite IF outputs 1 x Loopthrough terrestrial output 1 x Unicable II (dCSS/EN50607) output, dynamic mode by default, supporting up to 32 UBs. With combined terrestrial signal. 1 x Universal (Legacy) by default upon power up, auto switch to Unicable II upon receiving EN50494/ EN50607 command. -
Page 10: Troubleshooting
* For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as detailed data-sheets of the products. Inverto Digital Labs reserves the right to amend, omit or add products, product-lines, and/ or features without notice. - Page 12 FTA Communication Technologies S.a r.l. 18 Duchscherstrooss, L-6868 Wecker, Luxembourg Tel: +352 264 367 1, Fax: +352 264 313 68 info@inverto.tv www.inverto.tv...
