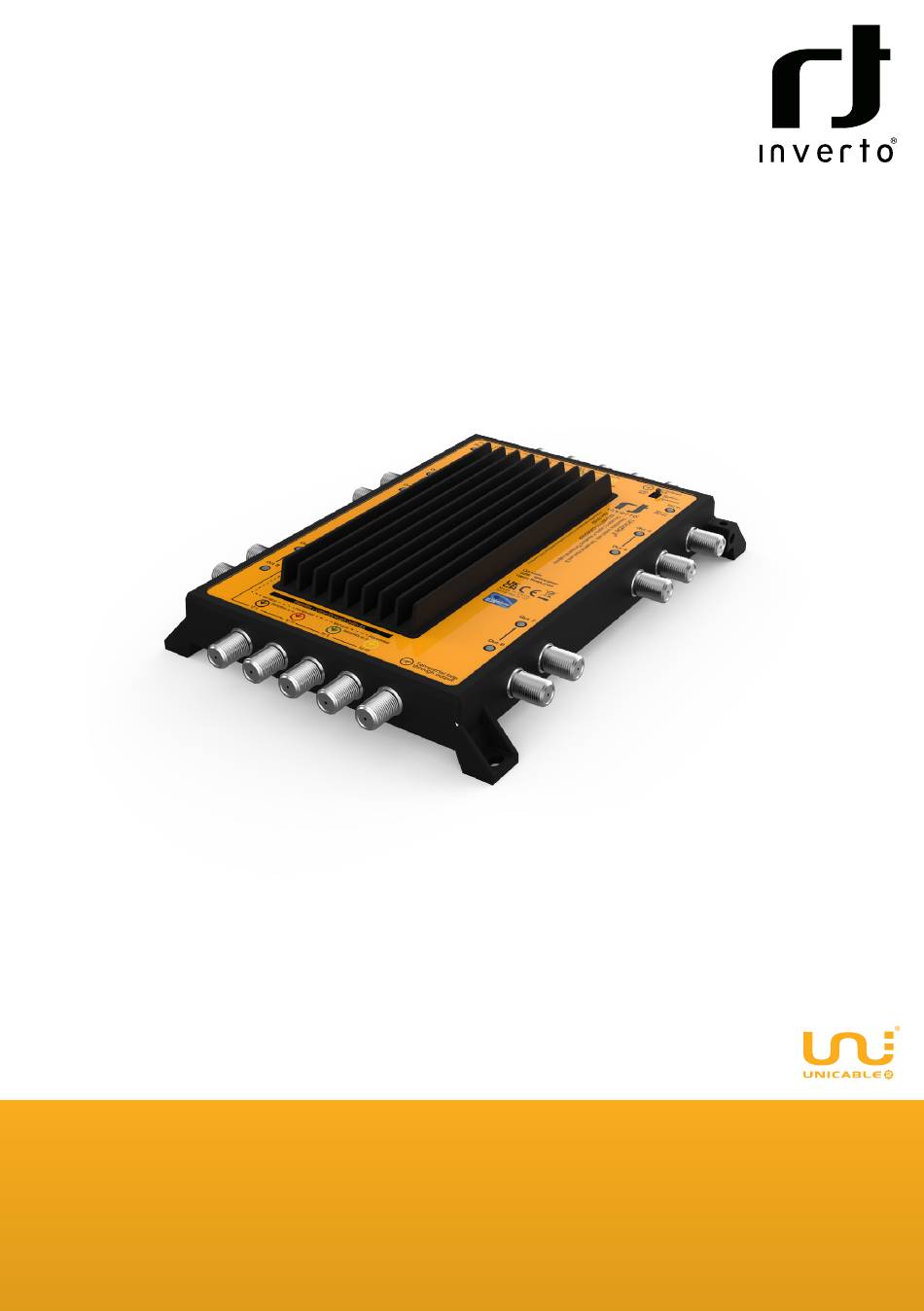

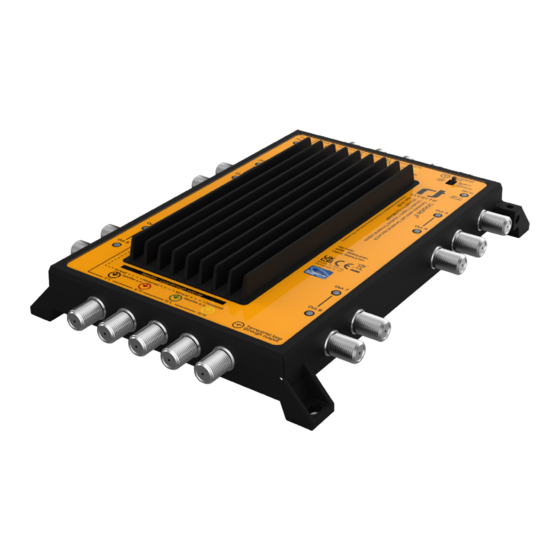

- Page 1 Multiswitch Unicable II ® Cascadable switch with Terrestrial input and 8 Unicable II ® /Legacy +equalized Terrestrial outputs IDLU-UST111-CUO8O-32P Item:6100 Installation manual...
-
Page 3: Warranty
Thank you for purchasing Inverto’s advanced Unicable II multiswitch and we are certain it will meet your expectations. Before installing and operating the product, please read the following instructions and recommendations. We suggest that you keep this manual for future use. -
Page 4: Product Configuration
The status LED identifies the mode of the port: - solid green = Legacy mode. - blinking green = Unicable (SatCR, EN50494) or Unicable II (dCSS, EN50607). - off = no voltage detected on the port (only terrestrial signal available on the port) All the eight STB output ports combine the Terrestrial input signal. - Page 5 The following diagram describes a typical single household installation of the product: DTT/DAB/FM Antenna Quattro Wideband AC/DC Terrestrial Adapter Trunk input Power Satellite Satellite Quattro type Wideband Vertical Satellite Inputs (LNB Trunk) Horizontal Vertical Horizontal DC in 3A max. Out 1 Out 3 Out 2 Out 4...
- Page 6 The following diagram illustrates reception of four satellites using wide-band LNBs. Each STB can access any transponder on any of the four satellites: Wideband LNB Wideband LNB Wideband LNB Wideband LNB SAT A - Hor./ Ver. SAT B - Hor./ Ver. SAT C - Hor./ Ver.
-
Page 7: Technical Parameters
The number and frequency of the 16 default User Bands available over each STB output port are the following: Default Unicable II dynamic user bands per output port EN50607+EN50494 (dCSS+SatCR): EN50607 (dCSS): UB1=1210MHz UB5=985MHz UB9=1340MHz UB13=1745MHz UB2=1420MHz UB6=1050MHz UB10=1485MHz UB14=1810MHz... -
Page 8: Troubleshooting
Output power: 19VDC, 940mA Item no.: 5639 Short circuit protection: Yes Power Inserter 5-2400MHz, 1000mA max Model no.: IDLU-PINS03-OOOOO-OBT Item no.: 5958 Unicable II 2-way splitter, 5-2400MHz Model: IDLU-USP1O5-OUO2O-OBT Item: 5660 Unicable II 4-way splitter, 5-2400MHz Model: IDLU-USP1O5-OUO4O-OBT Item: 5709... - Page 9 UK Radio Equipment Regulations 2017, Electrical Equipment (Safety) Regulations 2016 & Electromagnetic Compatibility Regulations 2016. Designated standards: EN303372-2, EN55032, EN55035, EN 62368 The full text of the UKCA declaration of conformity is available at: www.inverto.tv/support_dc * DiSEqC™ is a registered trademark of Eutelsat...
- Page 10 Notes ........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 12 For purpose of brevity, some product descriptions in this sheet remain at platform level and may not be referred to as de- tailed datasheets of the products. Inverto Digital Labs reserves the right to amend, omit or add products, product-lines, and / or features without notice.
