Unicable

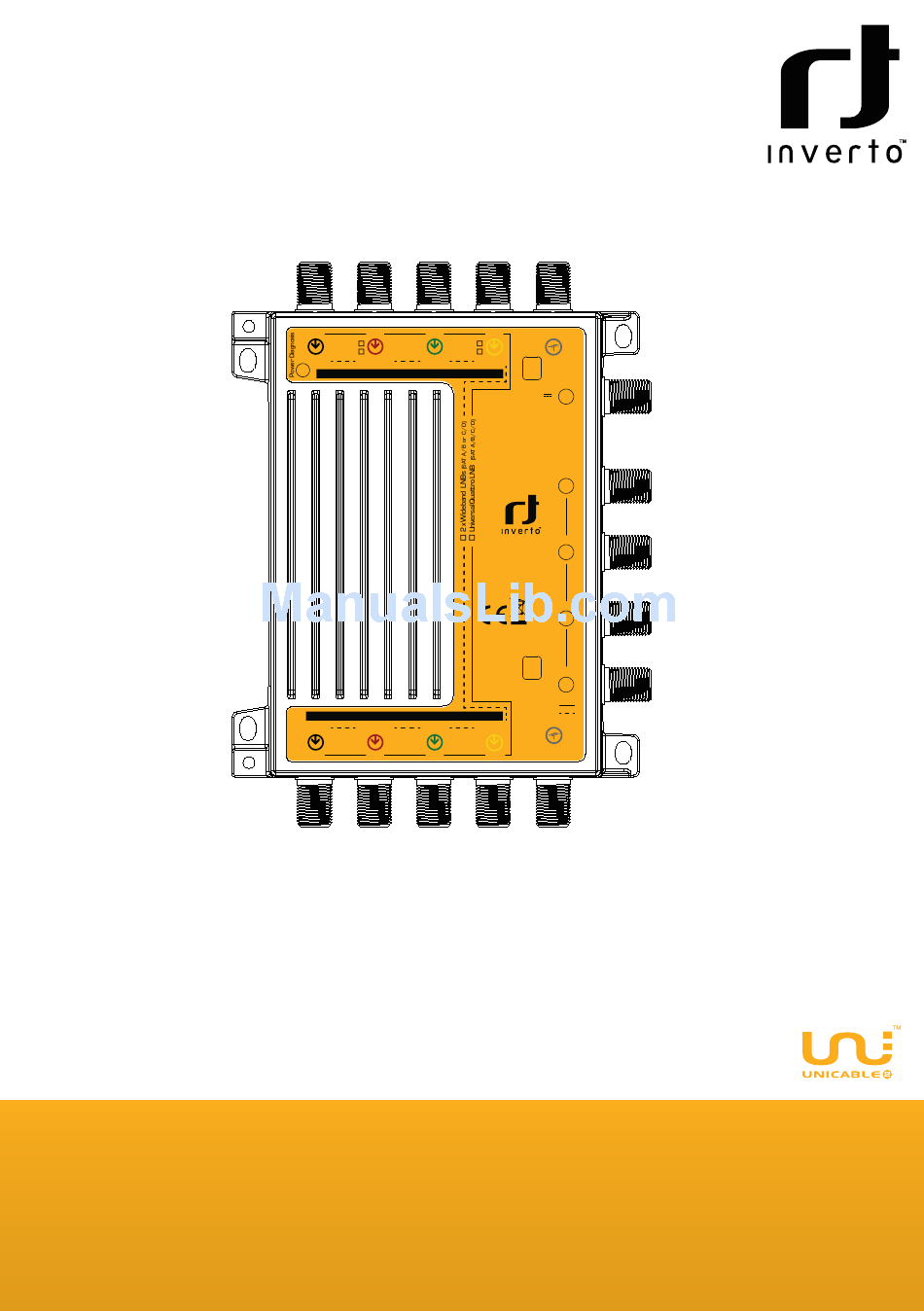

Unicable II Cascadable switch with Terrestrial input and
4xUnicable II/Legacy + Terrestrial outputs
IDLU-UST110-CUO4O-32P
Item: 5413
Installation manual
V/L
V/H
H/L
A
B
Satellite
Satellite
C
D
Vertical
Vertical
Horizontal
Horizontal
Satellite Inputs (LNB Trunk)
Satellite - Loop-through outputs
Vertical
Horizontal
Vertical
Horizontal
Satellite A or C
Satellite B or D
V/L
V/H
H/L
II Multiswitch
™
H/H
Terrestrial input
Off
On
DC in
19V
3.5A max.
Unicable II
Cascadable switch
with Terrestrial input and
4x Unicable II/Legacy+Terr
outputs
IDLU-UST110-CUO4O-32P
Item: 5413
Out 1
Out 2
Out mode:
dCSS:
Blinking green
Legacy:
Steady green
Power Test: Blinking green/red
Out 3
M a d e i n C h i n a
D e s i g n e d i n L U
Off
STB DC pass
to LNB trunk
Out 4
On
Default setup
Programmable
setup
Terrestrial loop
through output
H/H
1
Advertisement
Table of Contents
Related Manuals for Inverto 5413
Summary of Contents for Inverto 5413
- Page 1 Satellite Inputs (LNB Trunk) DC in 3.5A max. Unicable II Cascadable switch with Terrestrial input and 4x Unicable II/Legacy+Terr outputs IDLU-UST110-CUO4O-32P Item: 5413 Out 1 Out 2 Out mode: dCSS: Blinking green Legacy: Steady green Power Test: Blinking green/red Out 3...
-
Page 2: Warranty
Thank you for purchasing Inverto’s advanced Unicable II multiswitch and we are certain it will meet your expectations. Before installing and operating the product, please read the following instructions and recommendations. We suggest that you keep this manual for future use. - Page 3 All the four STB output ports combine the Terrestrial input signal. Note: The default configuration of the Multiswitch can be updated using Inverto’s Programmer de vice (not supplied with the product and sold as a separate accessory) and a PC Windows soft-...
- Page 4 The following diagram describes a typical single household installation based on the default configuration of the product: Connect the cables from the Quattro LNB to the input connectors marked with LNB V/L, V/H, H/ Land H/H inputs (pay attention to identification of the Quattro LNB connectors). The multiswitch is equipped with Terrestrial input.
- Page 5 The following diagram illustrates reception of two satellites using wide-band LNBs. Each STB can access any transponder on any of the two satellites: AC/DC power adapter Set-top-box MSW = Multiswitch...
- Page 6 The following diagram illustrates reception of four satellites using wide-band LNBs. Each STB can access any transponder on any of the four satellites: Wideband LNB Wideband LNB Wideband LNB Wideband LNB SAT A - Hor./ Ver. SAT B - Hor./ Ver. SAT C - Hor./ Ver.
-
Page 7: Technical Parameters
Unicable II Cascadable switch Default Unicable II dynamic user bands per output port with Terrestrial input and 4x Unicable II/Legacy+Terr outputs EN50607+EN50494 (dCSS+SatCR): EN50607 (dCSS): IDLU-UST110-CUO4O-32P Item: 5413 Out 1 UB1=1210MHz UB5=985MHz UB9=1340MHz UB13=1745MHz UB2=1420MHz UB6=1050MHz UB10=1485MHz UB14=1810MHz... - Page 8 Power consumption 500-1100mA @10~20VDC Power supply to LNB 500mA max., 18VDC Dimensions (W x H x D mm) W=110.24 H=151.86 D=26.00 Temperature range -20°C ~ +50°C Ingress Protection IP54 Optional accessories (not supplied, sold separately): MDU AC/DC power adapter (EU plug) Input voltage: 100-240VAC, 50/60Hz Model: IDLU-ADPT03-19342-OPP Output voltage: 19VDC...
-
