Introduction To The Esprftesttool - Espressif ESP32 Manual

!
3.
The EspRFtestTool includes the following features:
Configurable download addresses of firmware, including RAM and flash
•
Three RF test items: Wi-Fi, BT and manually-input-command tests
•
Log output can be printed or saved
•
• Online help documentation

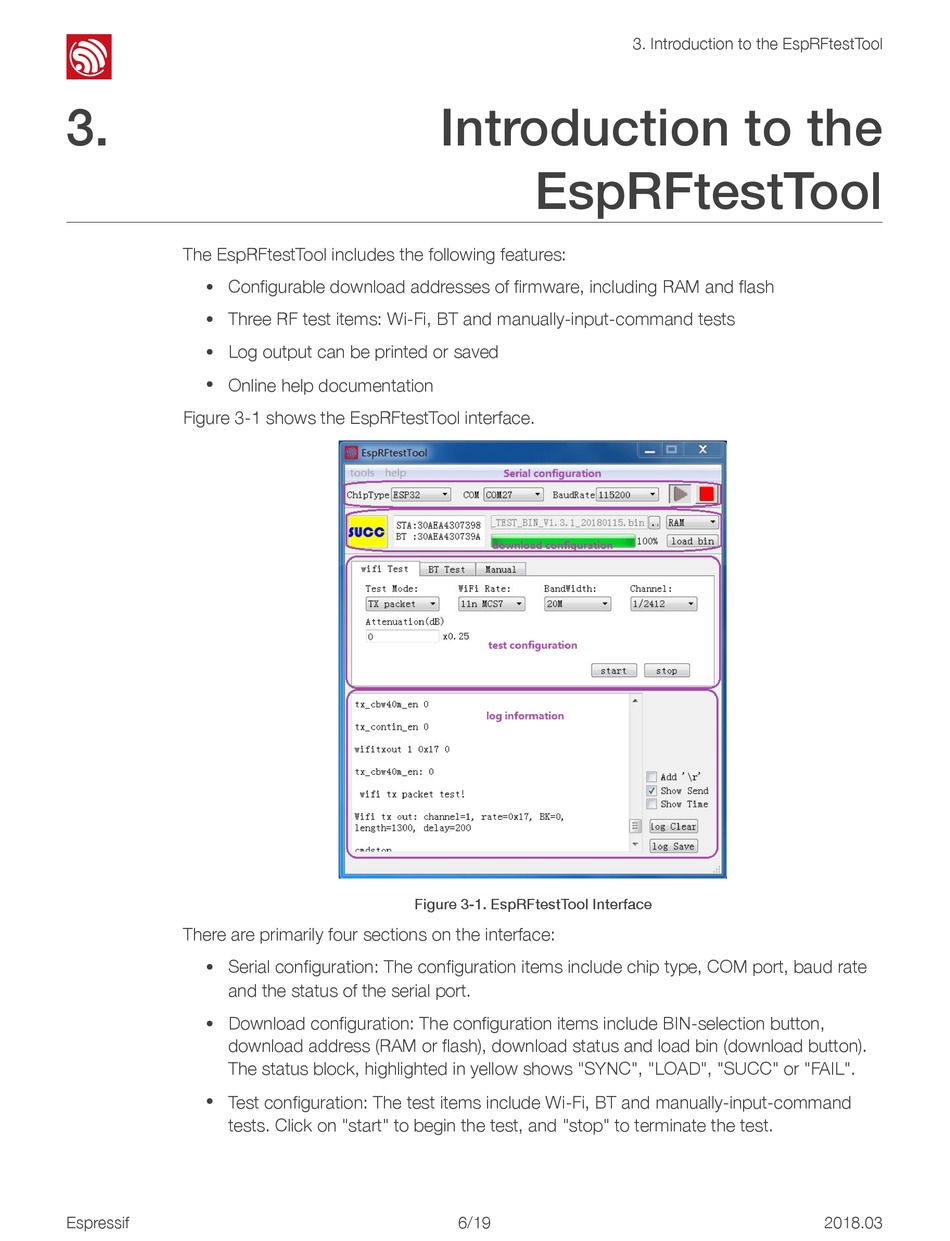

Figure 3-1 shows the EspRFtestTool interface.
There are primarily four sections on the interface:
Serial configuration: The configuration items include chip type, COM port, baud rate
•
and the status of the serial port.
Download configuration: The configuration items include BIN-selection button,
•
download address (RAM or flash), download status and load bin (download button).
The status block, highlighted in yellow shows "SYNC", "LOAD", "SUCC" or "FAIL".
• Test configuration: The test items include Wi-Fi, BT and manually-input-command
tests. Click on "start" to begin the test, and "stop" to terminate the test.
Espressif
Introduction to the
!
Figure 3-1. EspRFtestTool Interface
! /! 6 19

3. Introduction to the EspRFtestTool

EspRFtestTool
2018.03
