II. Appendix - ESP32 & ESP8266
Modulation/Data rate
802.11n MCS0/6.5M/7.2M
802.11n MCS1/13M/14.4M
802.11n MCS2/19.5M/21.7M
802.11n MCS3/26M/28.9M
802.11n MCS4/39M/43.M
802.11n MCS5/52M/57.8M
802.11n MCS6/58.5M/65M
802.11n HT20 MCS7/65M/72.2M
802.11n HT40 MCS0/6.5M/7.2M
802.11n HT40 MCS1/13M/14.4M
Espressif
RF Test Target Values

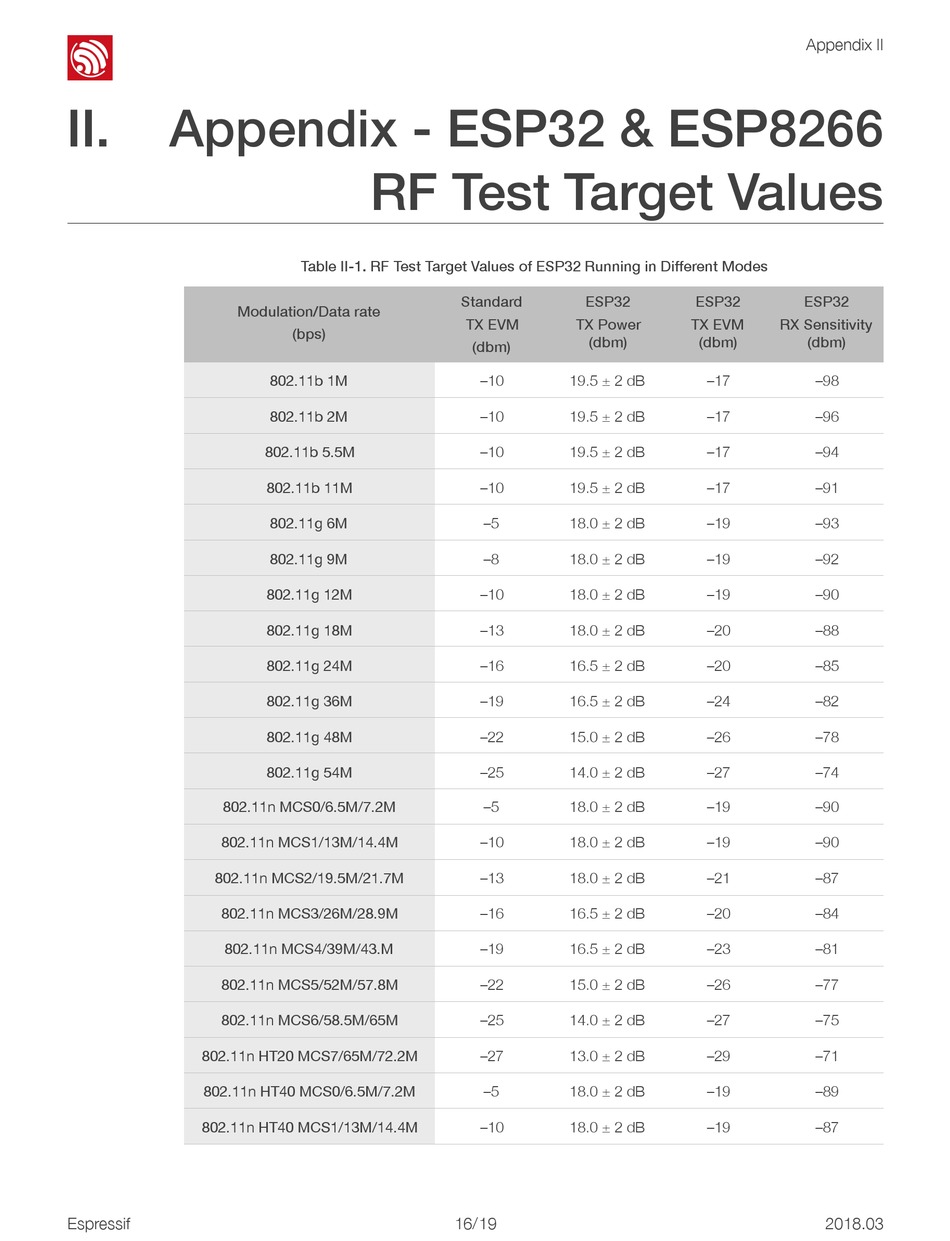

Table II-1. RF Test Target Values of ESP32 Running in Different Modes
(bps)
802.11b 1M
802.11b 2M
802.11b 5.5M
802.11b 11M
802.11g 6M
802.11g 9M
802.11g 12M
802.11g 18M
802.11g 24M
802.11g 36M
802.11g 48M
802.11g 54M
Standard ESP32
TX EVM TX Power
(dbm)
(dbm)
–10 19.5 ± 2 dB
–10 19.5 ± 2 dB
–10 19.5 ± 2 dB
–10 19.5 ± 2 dB
–5 18.0 ± 2 dB
–8 18.0 ± 2 dB
–10 18.0 ± 2 dB
–13 18.0 ± 2 dB
–16 16.5 ± 2 dB
–19 16.5 ± 2 dB
–22 15.0 ± 2 dB
–25 14.0 ± 2 dB
–5 18.0 ± 2 dB
–10 18.0 ± 2 dB
–13 18.0 ± 2 dB
–16 16.5 ± 2 dB
–19 16.5 ± 2 dB
–22 15.0 ± 2 dB
–25 14.0 ± 2 dB
–27 13.0 ± 2 dB
–5 18.0 ± 2 dB
–10 18.0 ± 2 dB
! 16 19 /!
Appendix II
ESP32 ESP32
TX EVM RX Sensitivity
(dbm) (dbm)
–17 –98
–17 –96
–17 –94
–17 –91
–19 –93
–19 –92
–19 –90
–20 –88
–20 –85
–24 –82
–26 –78
–27 –74
–19 –90
–19 –90
–21 –87
–20 –84
–23 –81
–26 –77
–27 –75
–29 –71
–19 –89
–19 –87
2018.03
