- The second parameter, based on the hexadecimal system, indicates the number
- The last parameter, based on the hexadecimal system, indicates the number of bit
- The second-to-last parameter, based on the hexadecimal system, indicates the
3.5 Manually-input-command test
Choose "Manual" in the test configuration section. Make sure you check "Add '\r'"
before sending commands.
4. Get RF test results
Set the right test configurations (e.g., 11n MCS7, channel 1) on the tester interface. The
tester will present the RF test results, as shown in the picture below.
Espressif
of received packets at the corresponding data rate.
errors.
total number of received bits at the corresponding data rate.
!

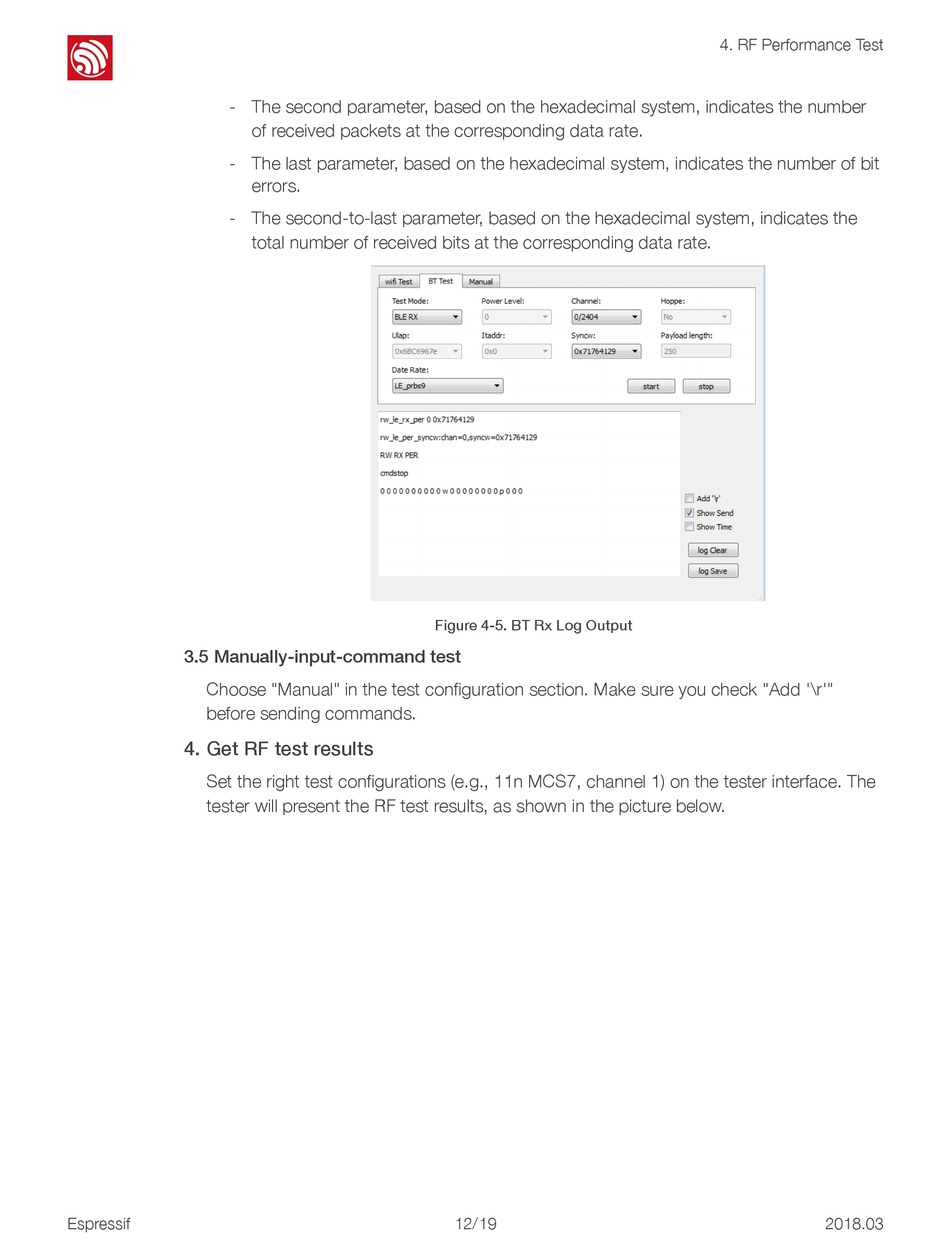

Figure 4-5. BT Rx Log Output
