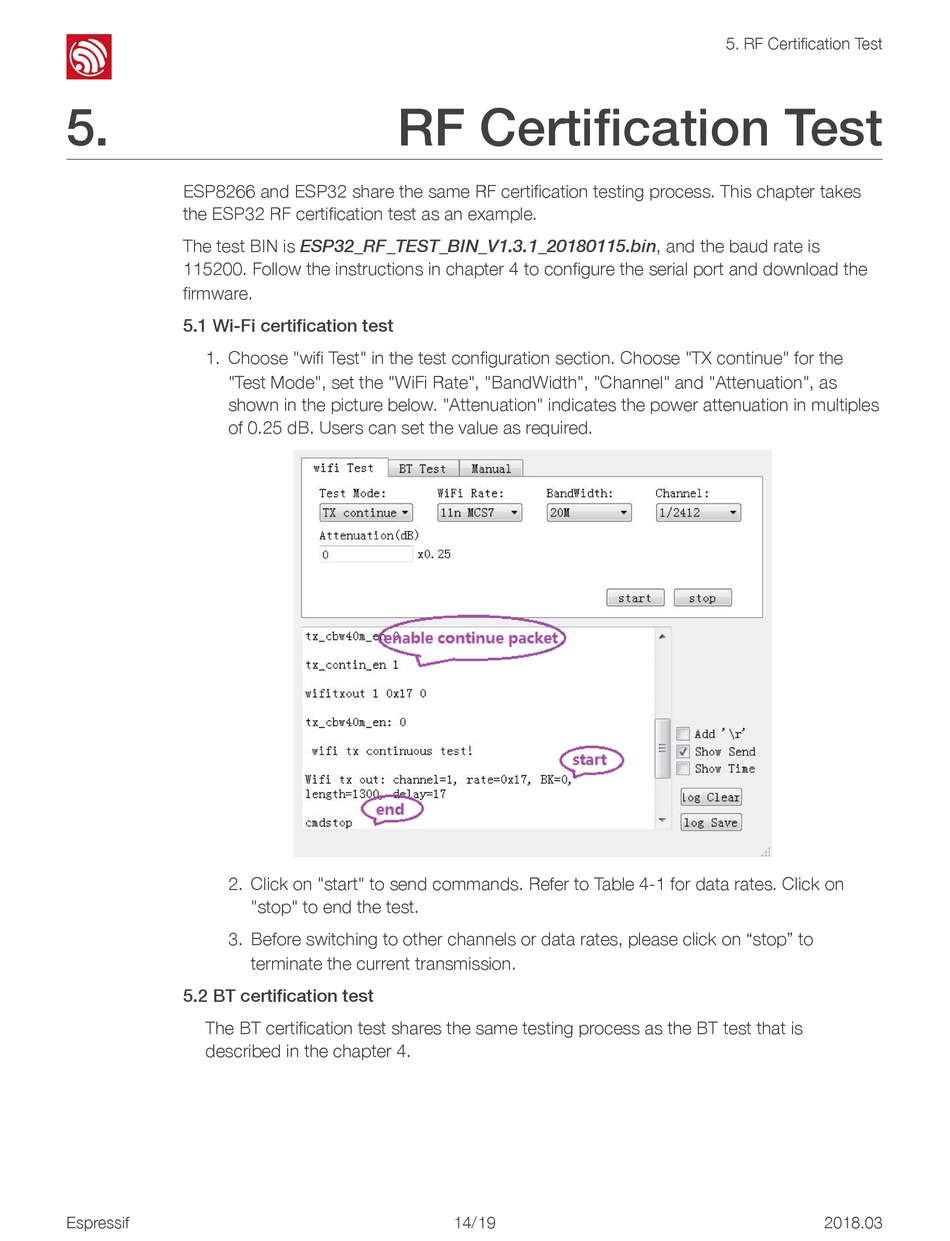

5.
ESP8266 and ESP32 share the same RF certification testing process. This chapter takes
the ESP32 RF certification test as an example.
The test BIN is ESP32_RF_TEST_BIN_V1.3.1_20180115.bin, and the baud rate is
115200. Follow the instructions in chapter 4 to configure the serial port and download the
firmware.
5.1 Wi-Fi certification test
1. Choose "wifi Test" in the test configuration section. Choose "TX continue" for the
"Test Mode", set the "WiFi Rate", "BandWidth", "Channel" and "Attenuation", as
shown in the picture below. "Attenuation" indicates the power attenuation in multiples
of 0.25 dB. Users can set the value as required.
2. Click on "start" to send commands. Refer to Table 4-1 for data rates. Click on
3. Before switching to other channels or data rates, please click on "stop" to
5.2 BT certification test
The BT certification test shares the same testing process as the BT test that is
described in the chapter 4.
Espressif
RF Certification Test
!
"stop" to end the test.
terminate the current transmission.
14 19 ! /!
5. RF Certification Test
2018.03
