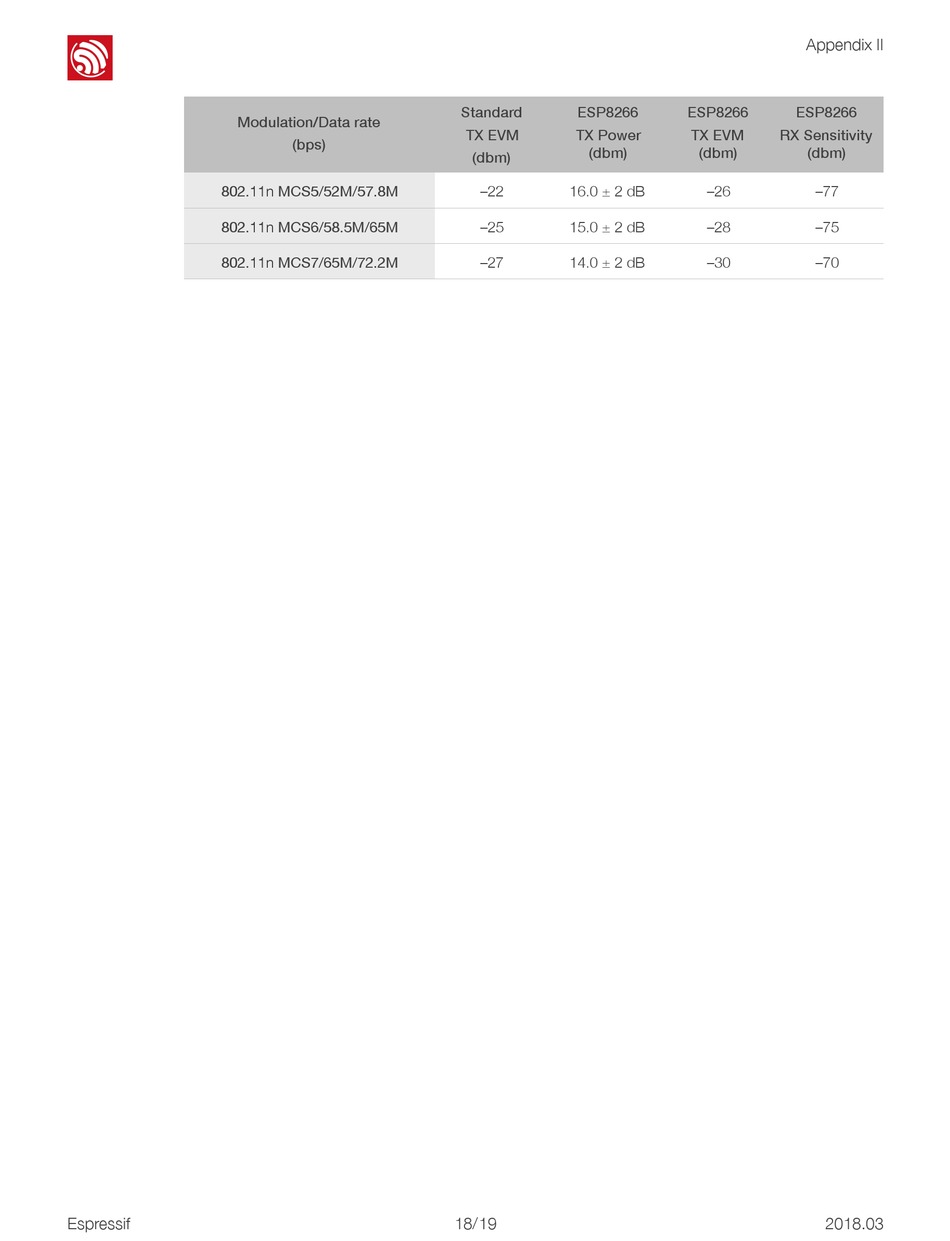

Modulation/Data rate
802.11n MCS5/52M/57.8M
802.11n MCS6/58.5M/65M
802.11n MCS7/65M/72.2M
Espressif
Standard
TX EVM
(bps)
(dbm)
18 19
!
/!
ESP8266
TX Power
(dbm)
–22
16.0 ± 2 dB
–25
15.0 ± 2 dB
–27
14.0 ± 2 dB
Appendix II
ESP8266
ESP8266
TX EVM
RX Sensitivity
(dbm)
(dbm)
–26
–77
–28
–75
–30
–70
2018.03
