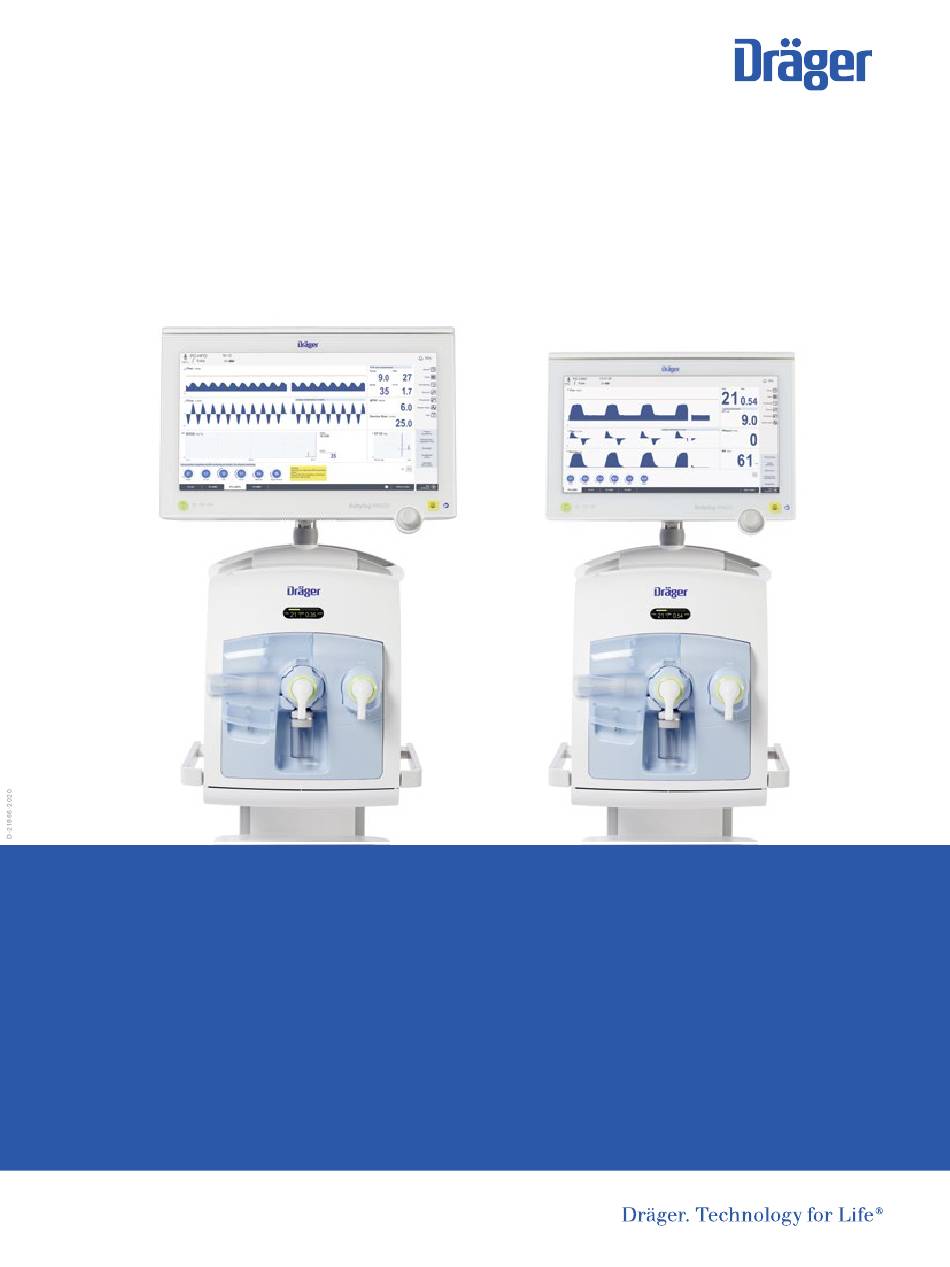

- Page 1 Pocket Guide Babylog® VN800 / Babylog® VN600 Software version 1.n...
-
Page 2: Table Of Contents
QUICK GUIDE BABYLOG® VN800 / BABYLOG® VN600 02 | Content Product description Operating concept Getting started Operation Alarms Monitoring The Babylog® VN800 / VN600 Pocket Guide is not a replacement or substitute for the Instructions for Use. It is for informational purposes only. Any use of the device requires full understanding and strict observation of the Instruction for Use. - Page 3 | 03 Intended use The intensive care ventilator Babylog is intended for the ventilation of neonates, infants, and children from 0.4 kg (0.88 lbs) up to 20 kg (44 lbs) or up to 6 years of age. This device provides mandatory ventilation modes and ventilation modes for supporting spontaneous breathing and also ventilation monitoring.
-
Page 4: Product Description
QUICK GUIDE BABYLOG® VN800 / BABYLOG® VN600 04 | Product description Intensive care Ventilator Display unit Ventilation unit Gas supply unit GS500 Power supply unit PS500 Trolley with 4 brakes Babylog® VN800... - Page 5 | 05 Product description Display unit, front Alarm bar Touch screen ON/OFF switch Indicator for power Rotary knob Alarm silence and batteries touch – turn – confirm 2 minutes...
- Page 6 QUICK GUIDE BABYLOG® VN800 / BABYLOG® VN600 06 | Product description Display unit, rear COM ports USB ports HDMI port USB port USB port LAN port Swiveling of display unit...
- Page 7 | 07 Product description Ventilation unit, front Flap Operation display of ventilation Expiration valve Exhaust Muffler Inspiration valve Emergency air intake Nebulizer port Water trap...
-
Page 8: Operating Concept
QUICK GUIDE BABYLOG® VN800 / BABYLOG® VN600 08 | Operating concept Screen, general structure Header Monitoring area Main menu Therapy... - Page 9 | 09 Operating concept Main screen Patient Ventilation mode / Power supply / Alarm messages Buttons to open the category Therapy type charge status – Alarms dialog – Views dialog indicator of – Trends/data dialog battery – Sensors dialog – Procedures dialog –...
- Page 10 QUICK GUIDE BABYLOG® VN800 / BABYLOG® VN600 10 | Operating concept Using the screen − Colours Alarms The following colours are used to identify the priority of alarms: Colour Alarm priority Action required High !!! Immediate action is necessary in order to avert an acute danger Yellow Medium !! Prompt action is necessary in order to avert a danger...
- Page 11 | 11 Operating concept Using the screen − Colours Rotary knob If the device is turned on, the rotary knob is back lit with a colour. Orange The selected function or setting must be confirmed by pressing the rotary knob. 10 seconds before the time during which the confirmation may be performed ends, the background lighting flashes.
-
Page 12: Getting Started
QUICK GUIDE BABYLOG® VN800 / BABYLOG® VN600 12 | Getting started Turning on the device Prerequisites: The accessories needed Ventilation unit, for operations on the patient left side: are connected. Main switch The mains power supply and the gas supply are connected. ... - Page 13 | 13 Getting started System test Starting the system test 1. Touch the Start button in the System test line. 2. Confirm with the rotary knob. 3. Answer the questions in the information field by touching the Yes or No button. After a successful system test has been performed, a message appears for continuing the breathing...
- Page 14 QUICK GUIDE BABYLOG® VN800 / BABYLOG® VN600 14 | Getting started Starting the therapy (based on the patient height) 1. Touch the button for the relevant patient category. 2. Confirm with the rotary knob. 3. Touch the button for weight. 4.
- Page 15 | 15 Getting started Therapy Quick start ventilation In an emergency situation, therapy can be started immediately without operational readiness being checked. 1. Touch the button Quick start ventilation. The patient and therapy step is displayed. 2. Press the rotary knob. The therapy is started.
-
Page 16: Operation
QUICK GUIDE BABYLOG® VN800 / BABYLOG® VN600 16 | Operation Changing the ventilation mode 1. Touch the relevant tab. 2. The colour of the tab turns orange (if necessary, adjust the ventilation parameter). 3. Confirm with the rotary knob. The color of the tab turns white. Setting ventilation parameters 1. - Page 17 | 17 Operation Advanced settings 1. Touch the button Advanced settings. The advanced settings of the selected ventilation mode are displayed and can be configured. 2. The current settings are displayed in an information field next to the button. Changing the therapy type during therapy 1.
- Page 18 QUICK GUIDE BABYLOG® VN800 / BABYLOG® VN600 18 | Operation Non-invasive ventilation (NIV) In the Adult and Pediatric patient patient categories, all the ventilation modes can be selected. In the Neonate patient category, only the SPN-CPAP and PC-CMV ventilation modes can be selected. therapy Patient-side accessories such as oxygen masks or nasal cannulas...
- Page 19 | 19 Operation Interrupting therapy 1. Touch the button Stop ventilation in the therapy bar. A pop-up window opens. 2. Touch the button Stop ventilation. 3. Confirm with the rotary knob. 4. The following message is displayed in the header bar: Standby mode activated.
-
Page 20: Alarms
QUICK GUIDE BABYLOG® VN800 / BABYLOG® VN600 20 | Alarms Display of alarms – Optical and acoustic alarm signals Alarm bar Alarm message field More alarms Alarm reset Blinking parameter field The primary acoustic alarm system produces different alarm signals. The acoustic alarm signal can be suppressed for 2 minutes maximum. - Page 21 | 21 Alarms Set alarm limits 1. Touch the Alarms button in the main menu bar. The Alarm limits dialog page is preselected. 2. Touch the corresponding button for the upper or lower alarm limit. 3. Set the value by turning the rotary knob and confirm.
-
Page 22: Monitoring
QUICK GUIDE BABYLOG® VN800 / BABYLOG® VN600 22 | Neonatal flow monitoring The flow sensor must be manually calibrated at least once a day and in the following cases as well: − During the system test and before use − After replacing the following components: –... - Page 23 | 23 Neonatal flow monitoring Calibrating the neonatal flow sensor Performing the calibration, open the dialog page 1. Touch the Sensors button in the main menu bar. 2. Touch the Neonatal flow sensor tab. 3. Select the sensor type used in the The following neonatal flow sensors are available: line Sensor type.
- Page 24 Not all products, features, or services are for sale in all countries. Mentioned Trademarks are only registered in certain countries and not necessarily in the country in which this material is released. Go to www.draeger.com/trademarks to find the current status. CORPORATE HEADQUARTERS Drägerwerk AG &...
