LOOK / COOL
BOLLARD

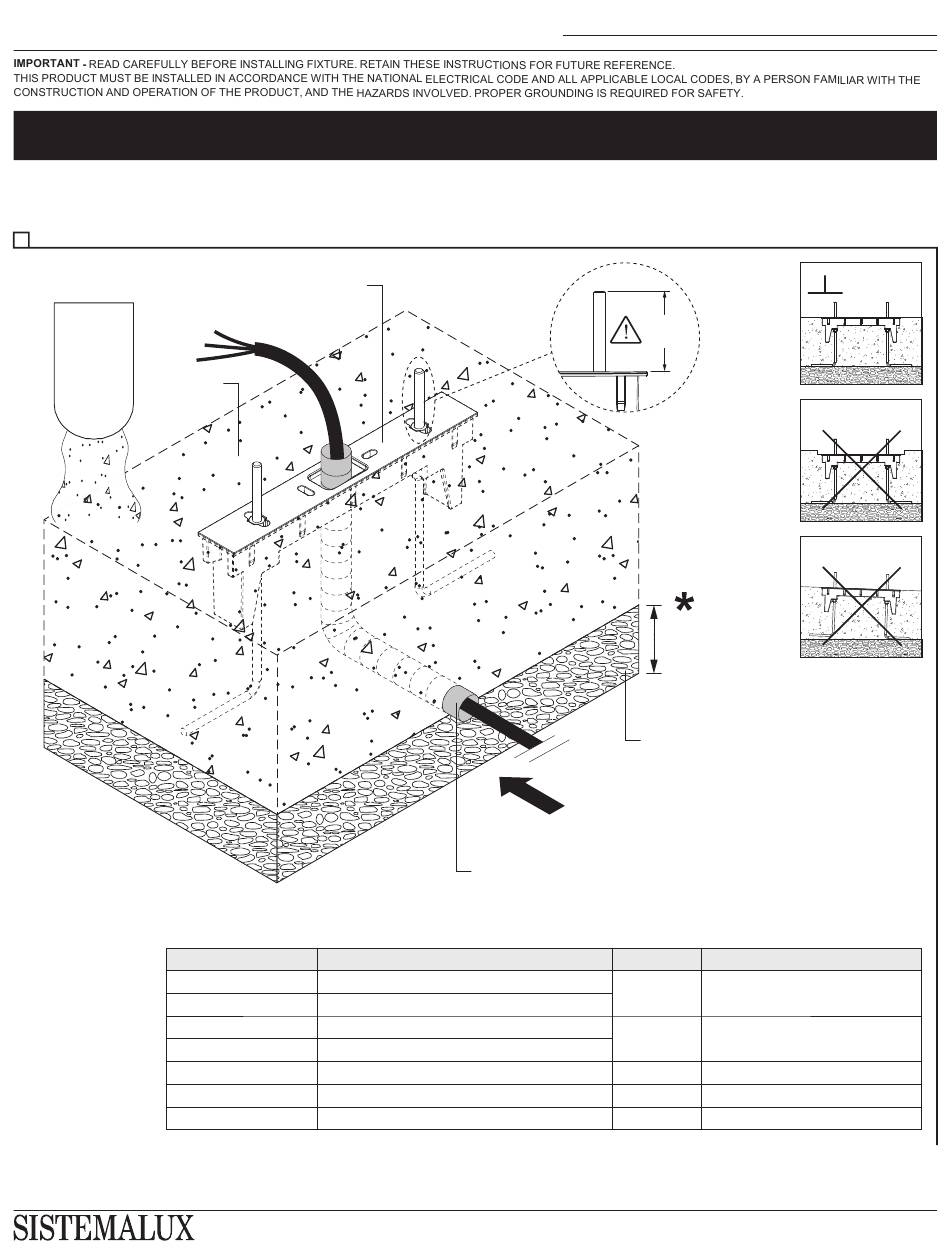

GROUND INSTALLATION IN CONCRETE WITH FLANGE.
INTEGRAL DRIVER 120-277V (UNV)
A- DIG A HOLE (SEE DIMENSION BELOW), PUT THE FLANGE AND ELECTRICAL CONDUIT INTO THE GROUND. POUR CONCRETE AND MAKE
SURE IT IS LEVELED WITH THE FLANGE.
*MINIMUM OF 12" OF GRAVEL IS REQUIRED BELOW THE LUMINAIRE TO ALLOW PROPER DRAINAGE).
A
CONCRETE
MICRO COOL SQUARE
MINI COOL SQUARE
INS-532
FLANGE
Model
MINI LOOK
S7206, S7211, S7215, S7220, SL9206, SL9211
MINI COOL
LOOK
S7260, S7261, S7262, S7265, S7266, S7267
COOL
COOL SQUARE
ELECTRICAL CONDUIT
Model Code
S7236, S7241, SL9236, SL9241
S7245, S7246
S7287
S7286
S7285
INSTRUCTIONS SHEET
MIN
56mm
MIN
12"
(305mm)
GRAVEL
Flange code
S7249
8½" x 1¼" x 9¼" (217 x 33 x 235mm)
S7269
8½" x 1¾" x 9¼" (290 x 43 x 231mm)
S7284
3¾" x 1¾" x 6⅝" (96 x 45 x 167mm)
S7288
5⅝" x 3⅝" x 9⅞ (149 x 66 x 251mm)
S7289
8½" x 3⅜" x 9⅞ (217 x 85 x 250mm)
Last update: Avril 11, 2022
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
PAGE: 1 of 3
OK
90°
NO!
NO!
Flange dimensions
DM - R4
