Sistemalux MINICOOL SQUARE Instruction Sheet

MINICOOL SQUARE
MODEL : S7281
DIRECT FEED INSTALLATION (DF) - LOW VOLTAGE (24V) REMOTE DRIVER (REM)

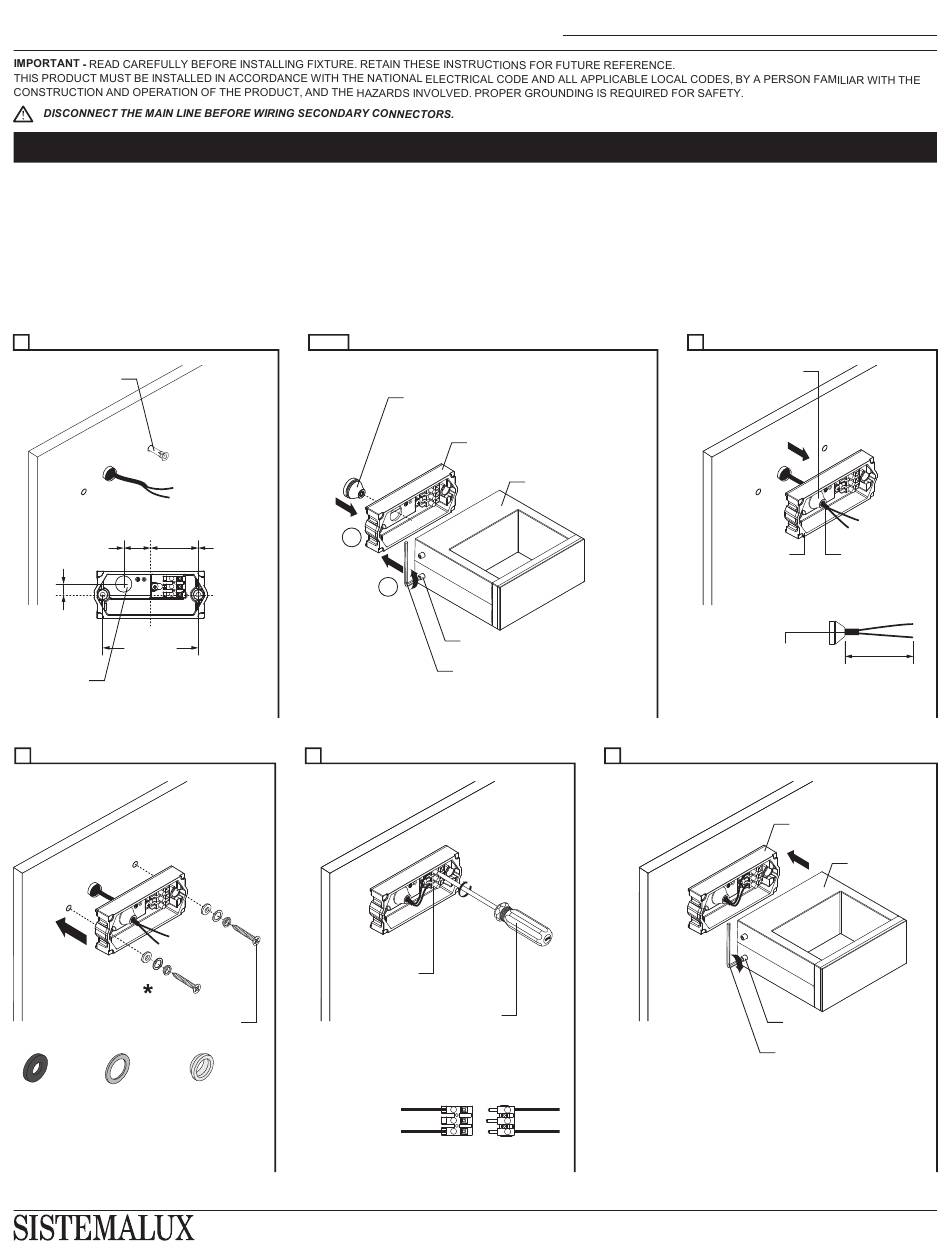

A- PREPARE SURFACE FOR INSTALLATION (SEE DIMENSIONS BELOW). *INSERT (2) ANCHOR SCREWS (NOT INCLUDED) IF NECESSARY.
B- UNFASTEN THE SET SCREWS WITH AN ALLEN KEY (INCLUDED) TO REMOVE THE FIXTURE FROM THE BASE.
DO NOT COMPLETELY REMOVE THE SET SCREWS.
C- INSERT THE LIQUID TIGHT GROMMET INTO FIXTURE BASE.
D- PASS EXTERIOR CABLE THROUGH LIQUID TIGHT GROMMET.
E- USING (2) #8 COUNTERSINK SCREWS (NOT INCLUDED) AND (6) WASHERS (INCLUDED), INSTALL THE FIXTURE BASE TO THE WALL.
*TO GUARANTEE A WATERTIGHT INSTALLATION, MAKE SURE TO INSERT THE WASHERS IN THE CORRECT ORDER (SEE BELOW).
F- MAKE ALL NECESSARY WIRE CONNECTIONS INTO THE CONNECTOR BLOCK USING A SCREWSDRIVER (SEE WIRING DIAGRAM BELOW).
G- FASTEN THE FIXTURE ON ITS BASE WITH THE SET SCREWS WITH AN ALLEN KEY (INCLUDED).
A
*ANCHOR
SCREWS
(NOT INCLUDED)
1.32"
(33.6mm)
0.53"
(13.4mm)
4.72"
(120mm)
FEED
POSITION
E
1
2
3
#8 COUNTERSINK SCREWS
(NOT INCLUDED)
1 2 3
2 x 2 x 2 x
RUBBER METAL NYLTITE
WASHER WASHER WASHER
*ORDER MUST BE RESPECTED TO GUARANTEE
WATERTIGHT INSTALLATION
INS-479
B + C
C
2.36"
(60mm)
B
F
CONNECTOR
BLOCK
SCREWSDRIVER
INSTRUCTIONS SHEET
LIQUID TIGHT
GROMMET
(INCLUDED)
FIXTURE
BASE
FIXTURE
SET SCREWS
ALLEN KEY
(INCLUDED)
FLAT HEAD
CONNECTOR BLOCK
WIRING DIAGRAM (24V)
+ LED +
- LED -
D
LIQUID TIGHT
GROMMET
FIXTURE
BASE
Ø3/16" - 3/8"
(Ø5 - 9mm)
G
ALLEN KEY
(INCLUDED)
Last update: February 18, 2020
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
PAGE: 1 of 5
EXTERIOR
CABLE
5"
(127mm)
FIXTURE
BASE
FIXTURE
SET SCREWS
JP - R2
