Sistemalux MINI LOOK Instruction Sheet

LOOK / COOL
MODEL : LOOK / MINI LOOK / COOL / COOLSQUARE / MINI COOL
MINI COOL SQUARE MICRO COOL SQUARE BOLLARD

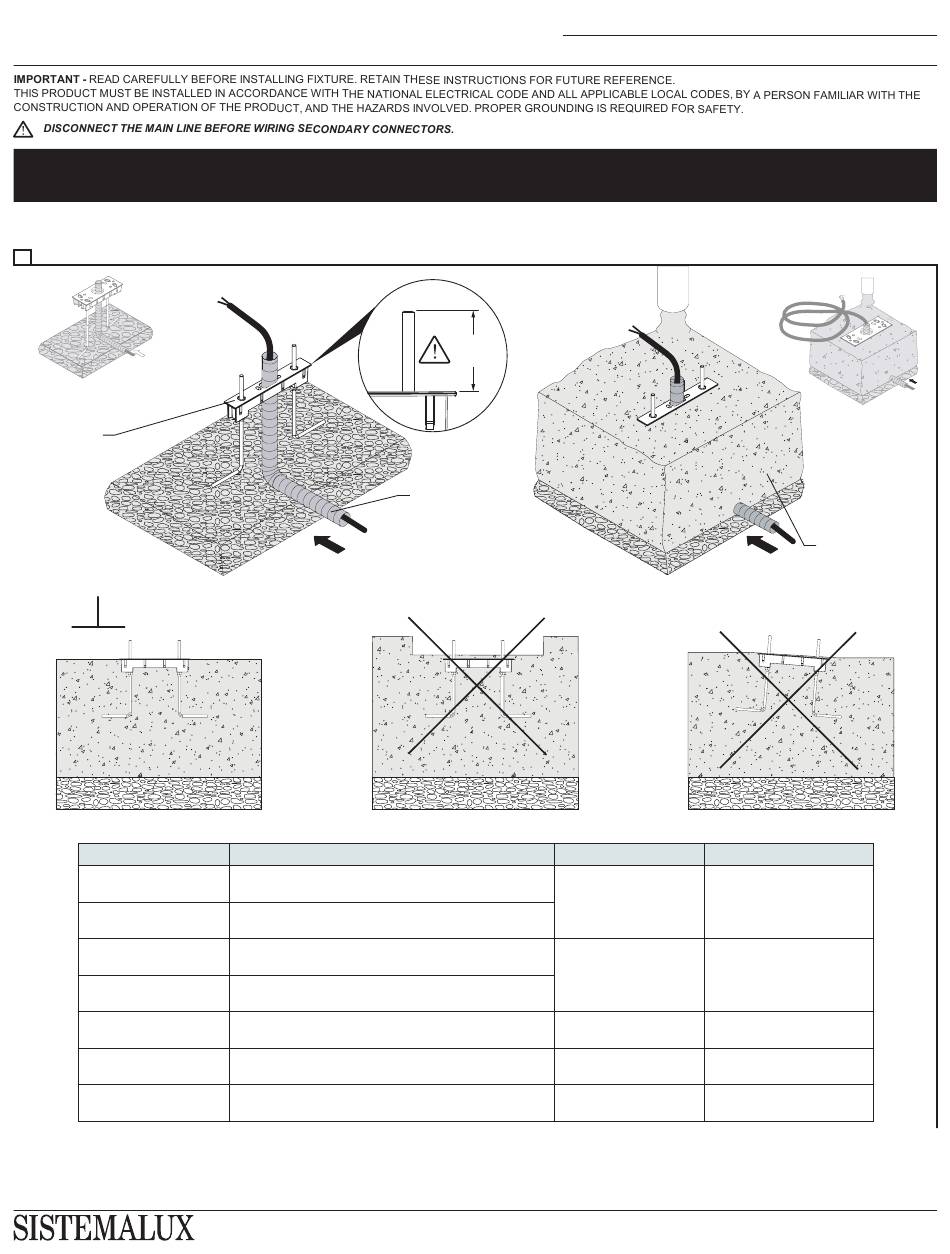

INSTALLATION IN CONCRETE WITH FLANGE
REMOTE DRIVER (REM)
A- INSTALL FLANGE ACCESSORY (TO BE ORDERED SEPARATELY) IN CONCRETE FLUSH WITH THE MOUNTING SURFACE (
12" OF GRAVEL IS REQUIRED BELOW THE LUMINAIRE TO ALLOW PROPER DRAINAGE).
A
FLANGE
ACCESSORY
OK
90°
Model
MINI LOOK
MINI COOL
LOOK
COOL
MICRO COOL SQUARE
MINI COOL SQUARE
COOL SQUARE
INS-767
CONDUIT
MAX Ø 30mm
Model Code
S.7206, S.7211, S7215, S.7220, S.L9206, S.L9211
S.7236, S.7241,
S.7260, S.7261, S.7262, S.7265, S.7266, S.7267
S.7245, S.7246
S.7287
S.7286, S.L9236, S.L9241
S.7285
INSTRUCTIONS SHEET
MIN
56MM
NO!
Flange accessory code
S7249
S7269
S7284
S7288
S7289
CONCRETE
NO!
Flange dimensions
8½" x 1¼" x 9¼"
(217mm x 33mm x 235mm)
8½" x 1¾" x 9¼"
(290mm x 43mm x 231mm)
3¾" x 1¾" x 6⅝"
(96mm x 45mm x 167mm)
5⅝" x 3⅝" x 9⅞
(149mm x 66mm x 251mm)
8½" x 3⅜" x 9⅞
(217mm x 85mm x 250mm)
Last update: August 19, 2020
