Sistemalux MINIREEF Instruction Sheet

MINIREEF / REEF
MODELS : S5210, S5213, S5223, S5233 / S5217, S5227, S5237, S5277

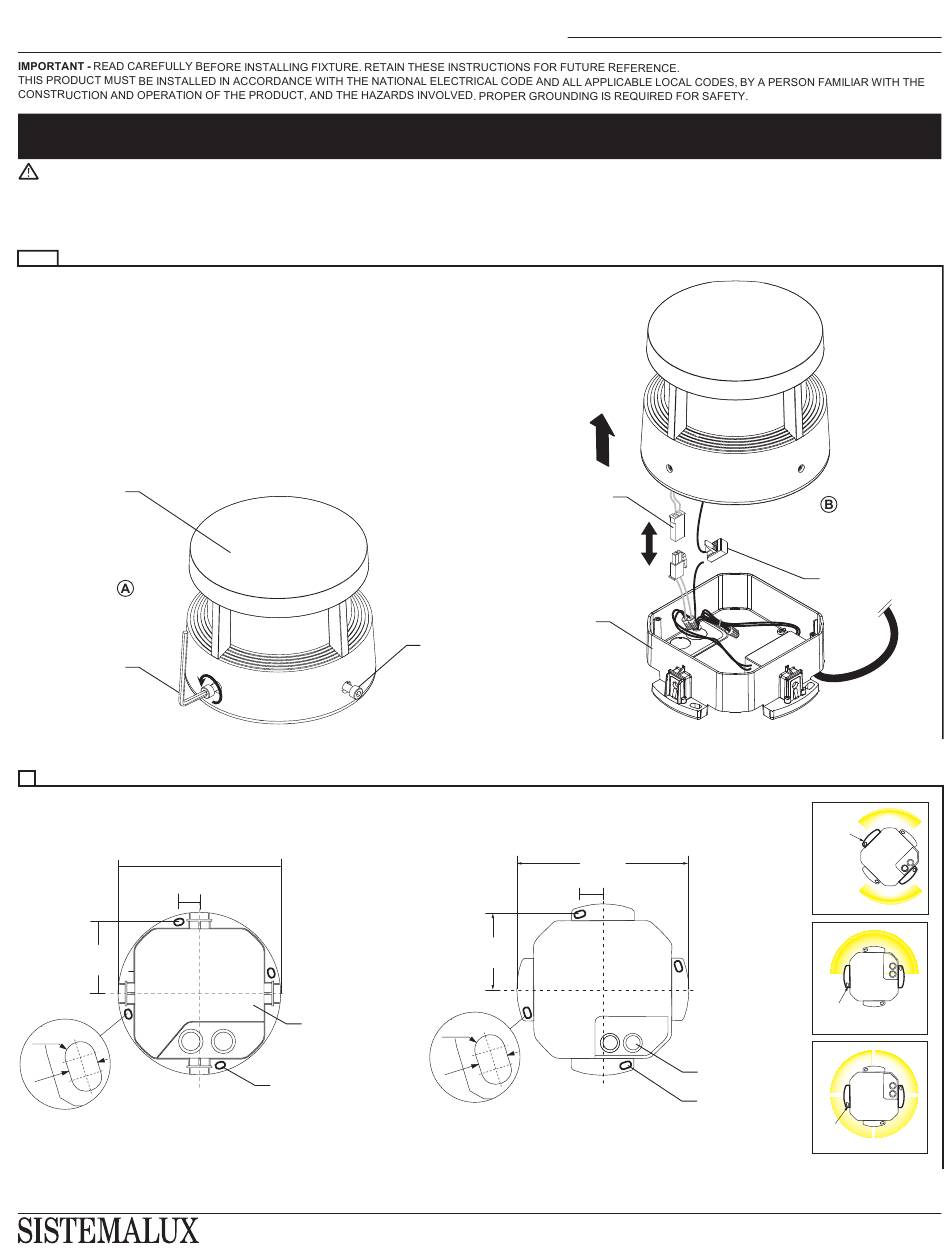

SURFACE INSTALLATION ON 4" JUNCTION BOX.

INTEGRAL DRIVER (120V - 277V)
DISCONNECT THE MAIN LINE BEFORE INSTALLATION TO AVOID ELECTRICAL SHOCK OR DAMAGE TO LED ARRAY.
A- UNSCREW THE (4) SCREWS AROUND THE HEAD FIXTURE USING THE ALLEN KEY (INCLUDED).
B- REMOVE THE HEAD FIXTURE SLOWLY FROM THE BASE AND DISCONNECT THE LED QUICK CONNECTOR AND GROUND.
C- PREPARE SURFACE FOR INSTALLATION (SEE DRAWING BELOW FOR ORIENTATION).
A + B
FIXTURE HEAD
ALLEN KEY
(INCLUDED)
C
MINIREEF
180mm
(7
22.5mm
(⅞")
79mm
(3⅛")
R4
9mm
(⅜")
INS-587
⁄
1 ")
16
2 CABLE
ENTRIES
4 FIXING
HOLES
INSTRUCTIONS SHEET
LED QUICK
CONNECTOR
FIXTURE
BASE
SCREWS
REEF
242mm
(9½")
32mm
(1¼")
107mm
(4¼")
R4
9mm
(⅜")
GROUND
CONNECTOR
2x90°
180°
360°
2 CABLE
ENTRIES
4 FIXING
HOLES
