MEGAZIP
WALK-OVER ROUND MODELS: S8500, S8501, S8502, S8568, S8570, S8571, S8572, S8578
WALK-OVER SQUARE MODELS: S8580, S8581, S8582, S8588, S8590, S8591, S8592, S8598

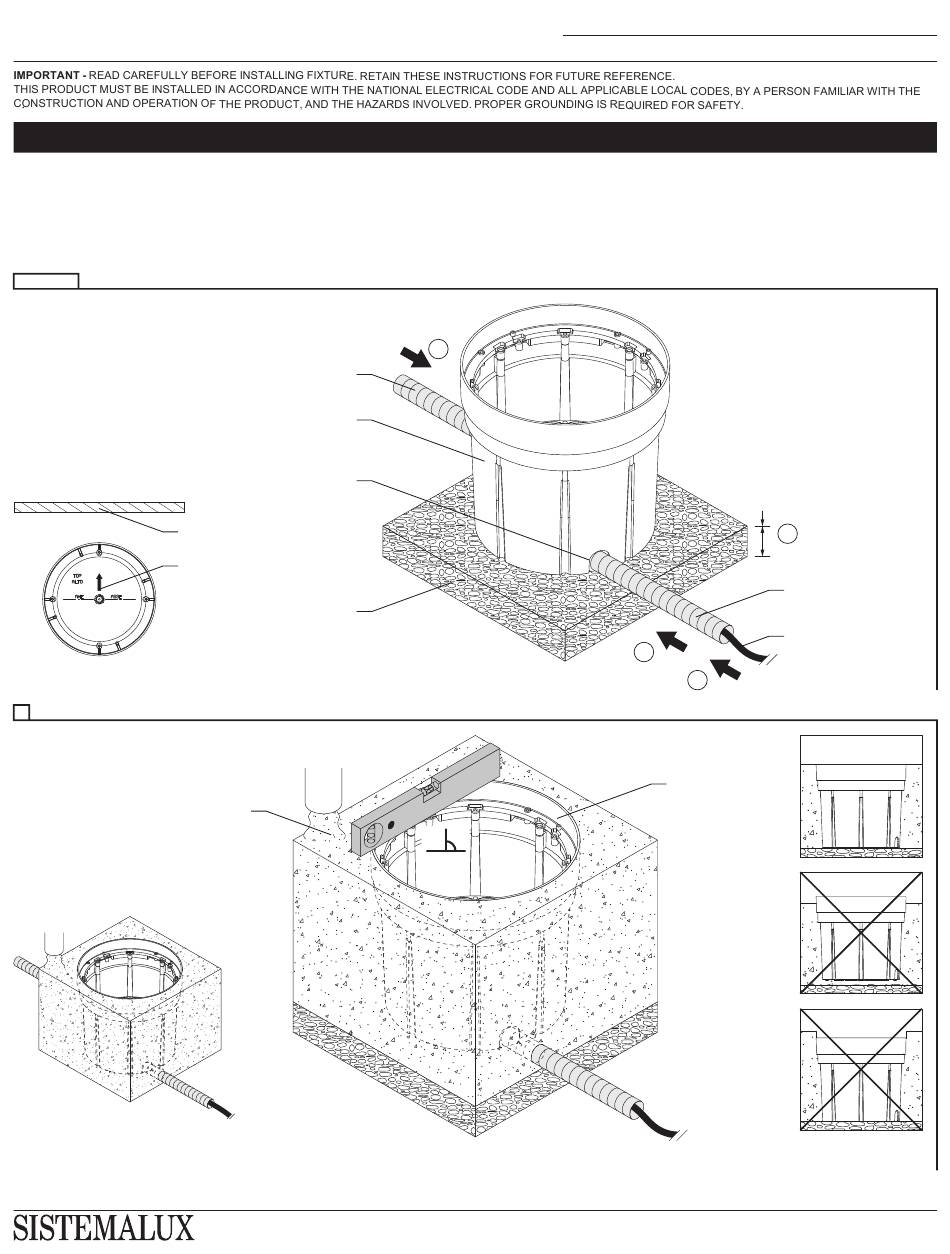

BACK BOX INSTALLATION
A- PREPARE THE DESIRED DRAINING EQUIPMENT TO ENSURE COMPLETE BACK BOX DRAINAGE IN UNDER 30 MINUTES:
NEW INSTALLATION: 8" TO 12" (20-30cm) OF GRAVEL UNDER THE BACK BOX.
OVER EXISTING SURFACES: INSTALL A DRAINING PIPE TO THE BACK BOX.
B- REMOVE THE DESIRED KNOCKOUT AND INSTALL AN APPROPRIATE ELECTRICAL CONDUIT (NOT INCLUDED) INTO THE BACK BOX.
C- FEED CABLE THROUGHT THE ELECTRICAL CONDUIT.
D- POUR CONCRETE IN AND MAKE SURE THAT THE BACK BOX OPENING IS FLUSH WITH THE CONCRETE.
A + B + C
SPOT, NARROW FLOOD,
FLOOD & ASSYMETRIC OPTIC
BEAM ORIENTATION
WALL
BEAM
ORIENTATION
D
CONCRETE
CONCRETE WITH DRAINING PIPE
INS-685
A
DRAINING PIPE
BACK BOX
KNOCKOUT
GRAVEL
90°
CONCRETE WITH GRAVEL
INSTRUCTIONS SHEET
(20 - 30cm)
B
C
BACK BOX
Last update: April 28, 2021
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
PAGE: 1 of 2
8" - 12"
A
ELECTRICAL CONDUIT
(NOT INCLUDED)
CABLE
OK!
NO!
NO!
JP - R0
