SKILL
MODEL: S6350, S6360
IMPORTANT - READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE NATIONAL ELECTRICAL CODE AND ALL APPLICABLE LOCAL CODES, BY A PERSON FAMILIAR WITH THE
CONSTRUCTION AND OPERATION OF THE PRODUCT, AND THE HAZARDS INVOLVED. PROPER GROUNDING IS REQUIRED FOR SAFETY.

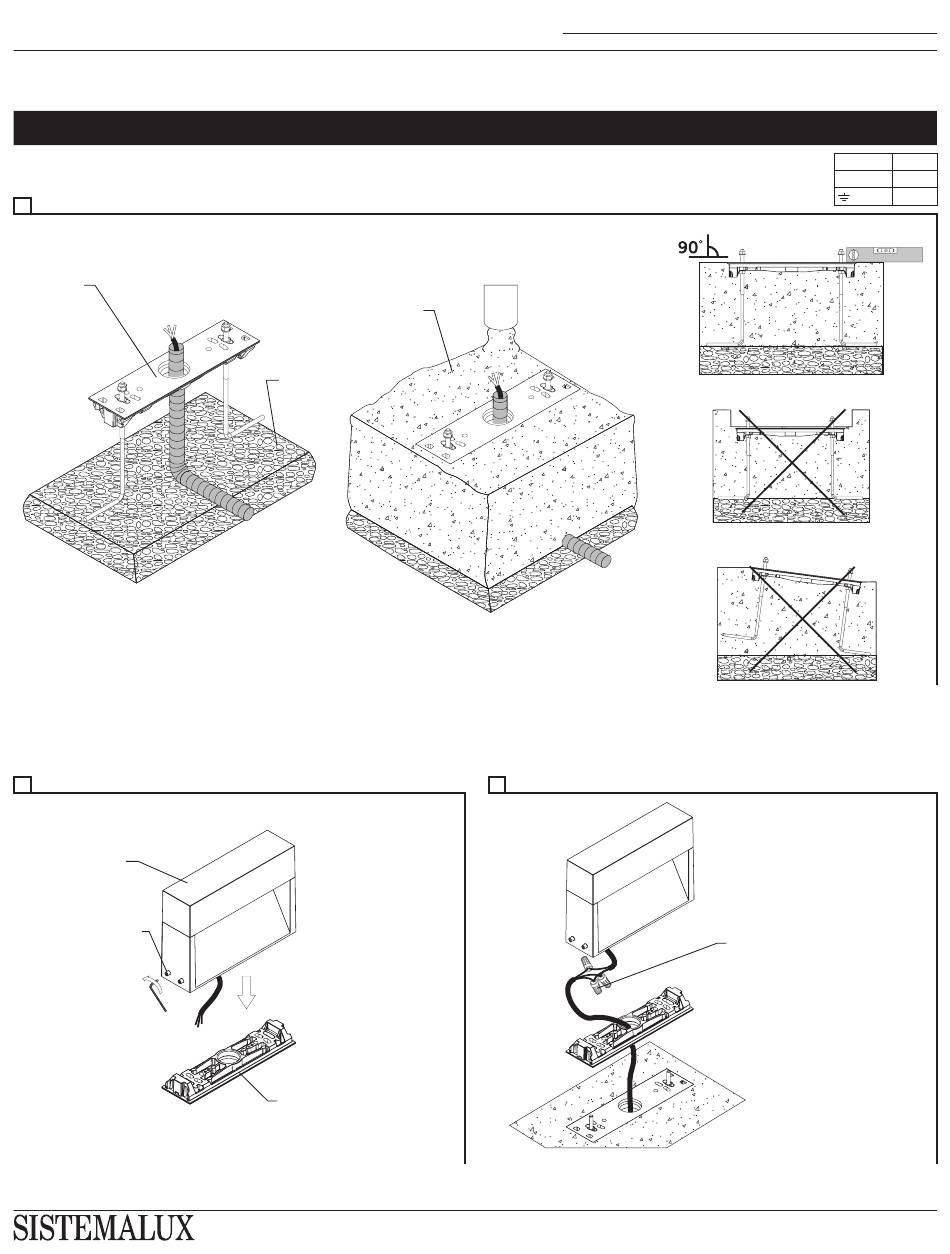

INSTALLATION IN CONCRETE WITH FLANGE - WITH INTEGRAL DRIVER (120-277V)
A- INSTALL FLANGE ACCESSORY (S6359) IN CONCRETE FLUSH WITH THE MOUNTING SURFACE.
A
FLANGE
(S6359)
B- UNFASTEN THE SET (4) SCREWS WITH THE ALLEN KEY (INCLUDED) AND PULL MOUNTING BASE OFF THE MAIN BODY. DO NOT
COMPLETELY REMOVE SCREWS
C- MAKE ALL WIRE CONNECTIONS (FOLLOWING POLARITY MARKING) WITH WATERTIGHT TWIST CONNECTORS (NOT INCLUDED).
PLACE THEM INTO THE MAIN BODY.
B
MAIN BODY
SET SCREWS
INS-547
CONCRETE
ROCK
MOUNTING BASE
INSTRUCTIONS SHEET
C
Last update: July 21, 2020
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
LIVE
NEUTRAL
OK
NO!
NO!
WATERTIGHT
TWIST
CONNECTORS
(NOT INCLUDED)
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
PAGE: 1 of 2
BLACK
WHITE
GREEN
JP - R2
