Sistemalux MINI LOOK Instruction Sheet

LOOK / COOL
BOLLARD

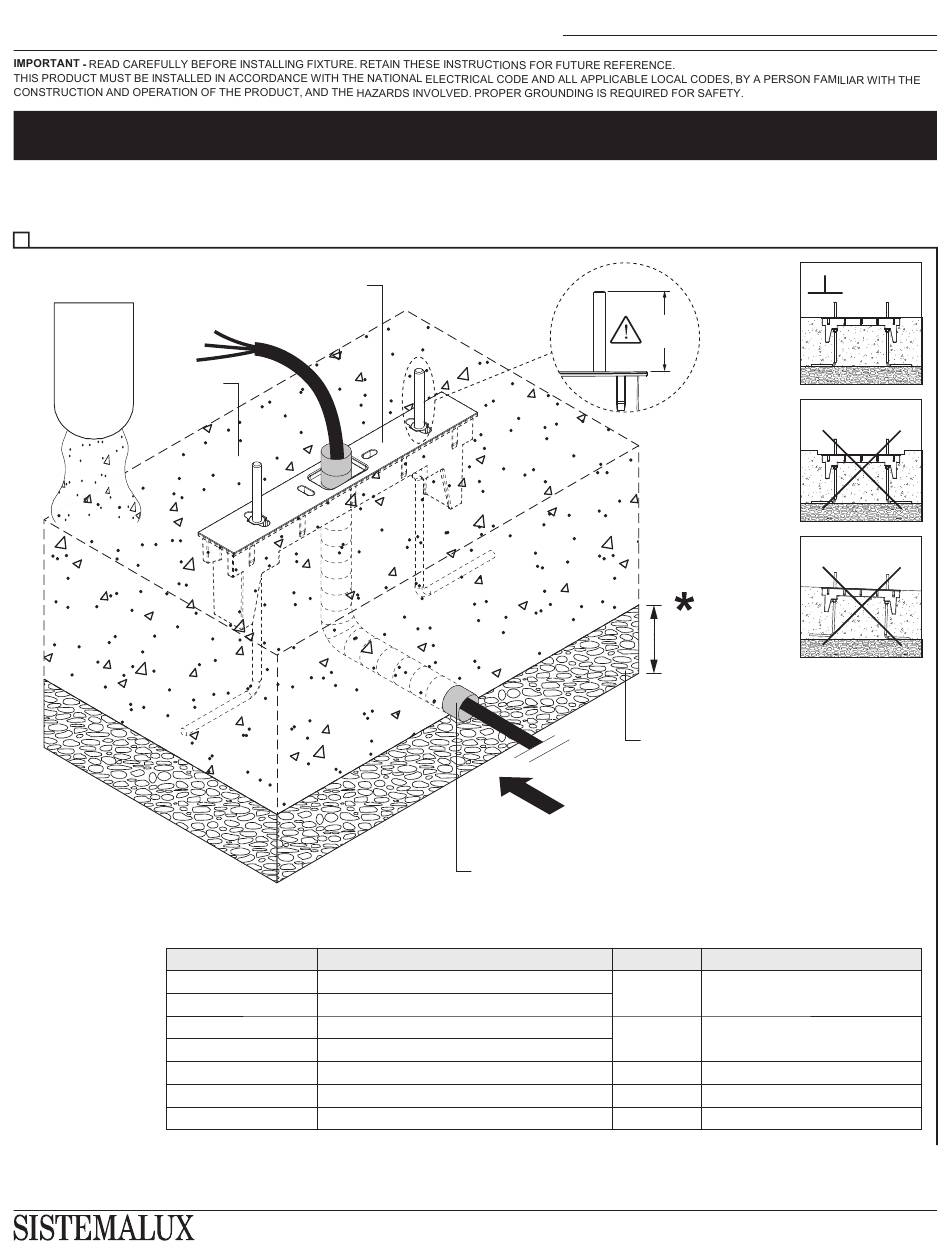

GROUND INSTALLATION IN CONCRETE WITH FLANGE.
INTEGRAL DRIVER 120-277V (UNV)
A- DIG A HOLE (SEE DIMENSION BELOW), PUT THE FLANGE AND ELECTRICAL CONDUIT INTO THE GROUND. POUR CONCRETE AND MAKE
SURE IT IS LEVELED WITH THE FLANGE.
*MINIMUM OF 12" OF GRAVEL IS REQUIRED BELOW THE LUMINAIRE TO ALLOW PROPER DRAINAGE).
A
CONCRETE
MICRO COOL SQUARE
MINI COOL SQUARE
INS-532
FLANGE
Model
MINI LOOK S.7206, S.7211, S7215, S.7220, S.L9206, S.L9211
MINI COOL S.7236, S.7241, S.L9236, S.L9241
LOOK S.7260, S.7261, S.7262, S.7265, S.7266, S.7267
COOL
COOL SQUARE
INSTRUCTIONS SHEET
ELECTRICAL CONDUIT
Model Code
S.7245, S.7246
S.7287
S.7286
S.7285
MIN
56mm
MIN
12"
(305mm)
GRAVEL
Flange code Flange dimensions
S7249
8½" x 1¼" x 9¼" (217 x 33 x 235mm)
S7269 8½" x 1¾" x 9¼" (290 x 43 x 231mm)
S7284
3¾" x 1¾" x 6⅝" (96 x 45 x 167mm)
S7288
5⅝" x 3⅝" x 9⅞ (149 x 66 x 251mm)
S7289
8½" x 3⅜" x 9⅞ (217 x 85 x 250mm)
Last update: February 18, 2020
9320 Boul. St-Laurent, suite 100, Montréal (Québec) Canada H2N 1N7
P.: 514.523.1339 F.: 514.525.6107 www.sistemalux.com
PAGE: 1 of 3
OK
90°
NO!
NO!
JP - R3
