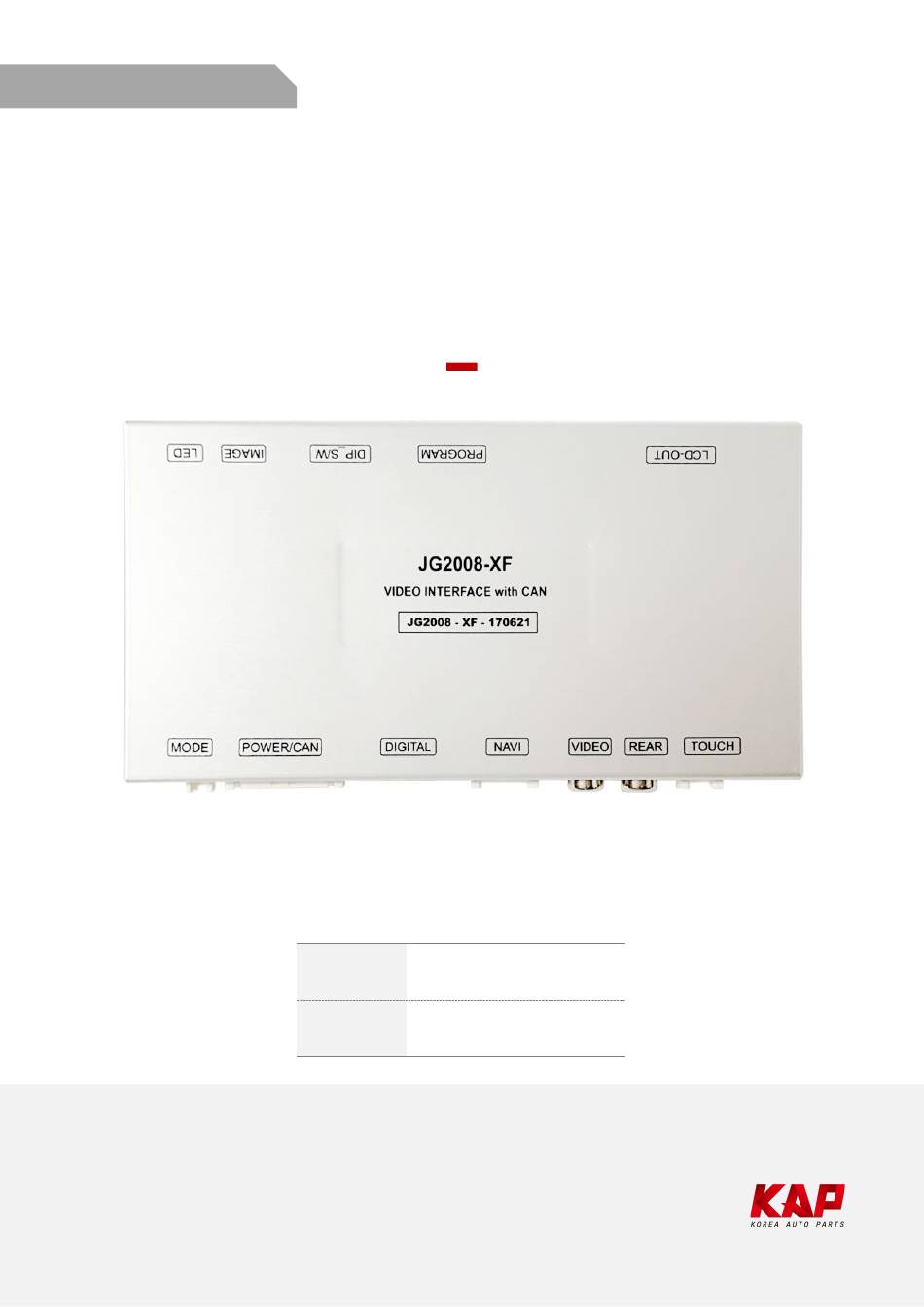

- Page 1 Instruction Manual JAGUAR 2008 - XF VIDEO INTERFACE with CAN VIDEO INTERFACE JG2008-XF-170621 MODEL. 2020.04.23 D A T E . Korea Auto Parts www.kaptrade.com...
- Page 2 Serviceable Model Jaguar XF - Old Model ( ~ 2010) WORK JAGUAR (~2008) XF (Old Model) NOT WORK JAGUAR (2009 ~ 2015) XF (New Model) : The appearance of the headlights is not the same. WORK NOT WORK JAGUAR (~2010) XF JAGUAR (2009 ~ 2015) XF (Old Model) (New Model)
- Page 3 Spec 1. Input Spec. (MULTI VIDEO INTERFACE) • 1 x Digital RGB Input (Navigation System output) • 1 x Analog RGB Input (Navigation System output) • 1 x CVBS(REAR CAMERA) Input. (Rear camera source) • 1 x CVBS(FRONT CAMERA) Input. (Front camera source) •...
-
Page 4: External Appearance

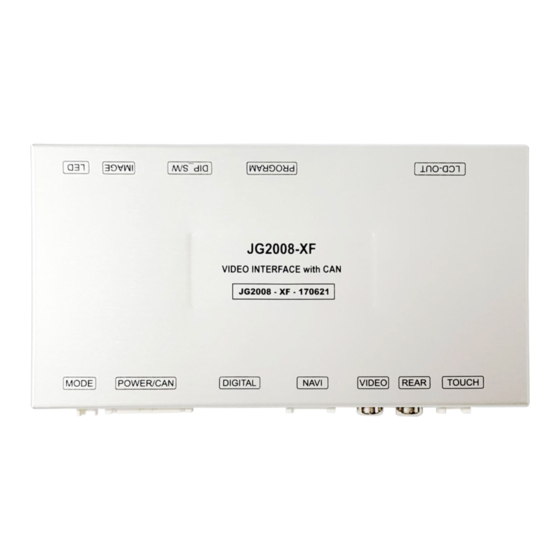

External Appearance IMAGE DIP S/W PROGRAM LCD OUT Mode S/W POWER/CAN Digital Analog FRONT REAR Touch... -
Page 5: Connector Pin Assignment
Connector Pin Assignment Power/CAN Analog RGB Touch NAVI Connect Touch Connect POWER Connect ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ① ② ③ ④ ⑤ ⑥ ⑦ ① ② ③ ④ ① ACC (Red) ① R DATA (Red) ①... -
Page 6: Product Composition
Product Composition Board Sub Board Power Cable 4x110x1.0xP7 (Forward) 40x50x0.5xP7 (Forward) LVDS Cable Touch FPC Cable(110mm) FFC Cable RGB NAVI Cable Mode Switch OSD Board... -
Page 7: Dip Switch Setting
Dip Switch Setting OFF : ▲UP ON : ▼DOWN FUNCTION DIP S/W Selection ON : Not Used NAVI OFF : Used ON : Not Used DVB-T(AV1) OFF : Used ON : Not Used DVD(AV2) OFF : Used Car Type Select Bottom Picture Car Type Select JAGUAR (~2010) -
Page 8: Mode Change
Mode Change Mode Switch Control Mode Change • You can change the mode by connecting the mode switch to the board and pressing the button Mode Change Sequence DVBT NAVI VIDEO (ROiK-10) (DVBT or DVD) -
Page 9: Osd Control
OSD Control OSD(On Screen Display) Control Board MENU DOWN • The OSD screen can be switched ON/OFF MENU • Return to previous menu • Select the currently active item • If the OSD screen is off, mode changes can be made. •... - Page 10 OSD Control Config First Menu Second Menu Third Menu Description DIGTAL-INAVI NAVI-RGB Setting the Connected NAVI Model Config Reset Execute Reset to default value of Config menu...
- Page 11 OSD Control Option First Menu Second Menu Third Menu Description Original Camera RearCam-Type ExtDevice Equipped with external camera + 12V continuous supply RearCam-Power AUTO + 12V supply only in Rear camera mode + 12V off GEAR Not Used RearCam-Det WIRE Detected by Rear-Det Wire Original Camera FrontCam-Type...
- Page 12 OSD Control Option ▶ FrontCam-RcvOpt Front Camera Auto Mode OEM or REAR FRONT OEM or INTERFACE CAMERA CAMERA INTERFACE Select time of display 0~30 second 0 second FrontCam-RcvOpt Menu OFF 1~30 second FrontCam-RcvOpt Menu ON & time control...
- Page 13 OSD Control Image NAVI – RGB Menu First Menu Second Menu Third Menu Description Brightness Adjust the value of brightness Contrast Adjust the value of contrast Color-RED Adjust the value of RED Image Color-GREEN Adjust the value of GREEN Color-BLUE Adjust the value of BLUE Reset Execute...
- Page 14 OSD Control Screen First Menu Second Menu Third Menu Description Horizontal Output screen horizontal movement Vertical Output screen vertical movement Scale X Up Reduce / increase output screen width Screen Scale X Down Scale Y Up Reduce / Increase Output Screen Height Scale Y Down Reset Screen menu all reset...
- Page 15 OSD Control Parking First Menu Second Menu Third Menu Description Warnings Lang Set warning text language Horizontal Moving a parking line horizontally Parking Vertical Moving a parking line vertically Transparency Parking line transparency Reset Parking menu all reset...
- Page 16 OSD Control First Menu Second Menu Third Menu Description value Horizontal OSD Menu Horizontal Shift value Vertical OSD menu vertical Shift value Display Time OSD Menu Display Time (in seconds) value OSD menu transparency Transparency Language OSD menu display language Reset Execute Initialize OSD settings...
- Page 17 OSD Control Utility First Menu Second Menu Third Menu Description Factory Reset Execute Initialize all settings Utility FDS302KRX-171004 Version (Check for future upgrades) • Last Source : FDS302KRX-171004 FD S3 02 KR X - 17 10 04 Motor Model Hardware National Special Software...
- Page 18 Install Manual 1-1. Installation ROiK Navigation Connection • Connect INTERFACE [DIGITAL] ROIK [LVDS OUT] with an HDMI cable • Connect the INTERFACE Power Cable and the ROiK-10 Power Cable(3PIN) • Please check the ROIK-10 version. • If version of ROiK is not 1.6V, please refer to homepage (NOTICE) JAGUAR2008XF VIDEO INTERFACE with CAN...
-
Page 19: Interface Settings
Install Manual 1-2. Installation ROiK Navigation Connection • After connecting the cables, you need to set the OSD INTERFACE Settings Config ▶ NAVI RGB ▶ DIGITAL-ROIK NAVIGATION Settings Device Setting → Select Interface→... - Page 20 Install Manual 2. Installation Navigation Connection JAGUAR2008XF VIDEO INTERFACE with CAN REAR TOUCH MODE POWER/CAN DIGITAL NAVI VIDEO ① R DATA (Red) ② G DATA (Green) ③ B DATA (Blue) ④ SYNC (White) ⑤ GND (Black) ⑥ N.C ⑦ N.C Analog RGB Resistive Touch Navigation...
- Page 21 Install Manual 3. Installation External Front Camera Connection OSD Screen selection WIRE JAGUAR2008XF VIDEO INTERFACE with CAN REAR TOUCH MODE POWER/CAN DIGITAL NAVI FRONT ① ACC (Red) ② GND (Black) ③ N.C ④ N.C ⑤ REAR PWR (Red) ⑥ N.C ⑦...
- Page 22 Install Manual 4. Installation External Reverse(Rear) Camera Connection OSD Screen selection WIRE JAGUAR2008XF VIDEO INTERFACE with CAN REAR TOUCH MODE POWER/CAN DIGITAL NAVI FRONT ① ACC (Red) ② GND (Black) ③ N.C ④ N.C REAR-POWER (Red) ⑤ REAR PWR (Red) ⑥...
- Page 23 Install Manual 5. LVDS FPC Cable Connection ▲ Connect the provided FFC cable. ▲ Connect original FFC cable. ▲ Connect the original touch cable to the provided FFC cable. ▲ Connect the provided FFC cable.
- Page 24 A-912 RM Tera-Tower2, 201 Songpa-Daero, Songpa-gu, Seoul, Korea F. (+82) 6204-0913 E. kap@kaptrader.com...
