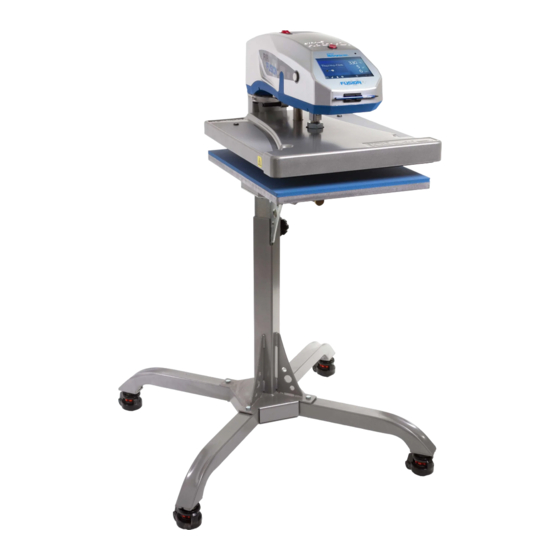

Air Fusion (Model XRF)
Circuit Breaker Replacement
2016-03-01
3
2
1
Technical Assistance: 1-(800)-727-8520
Manuals: hotronix.com/heat-press-manuals

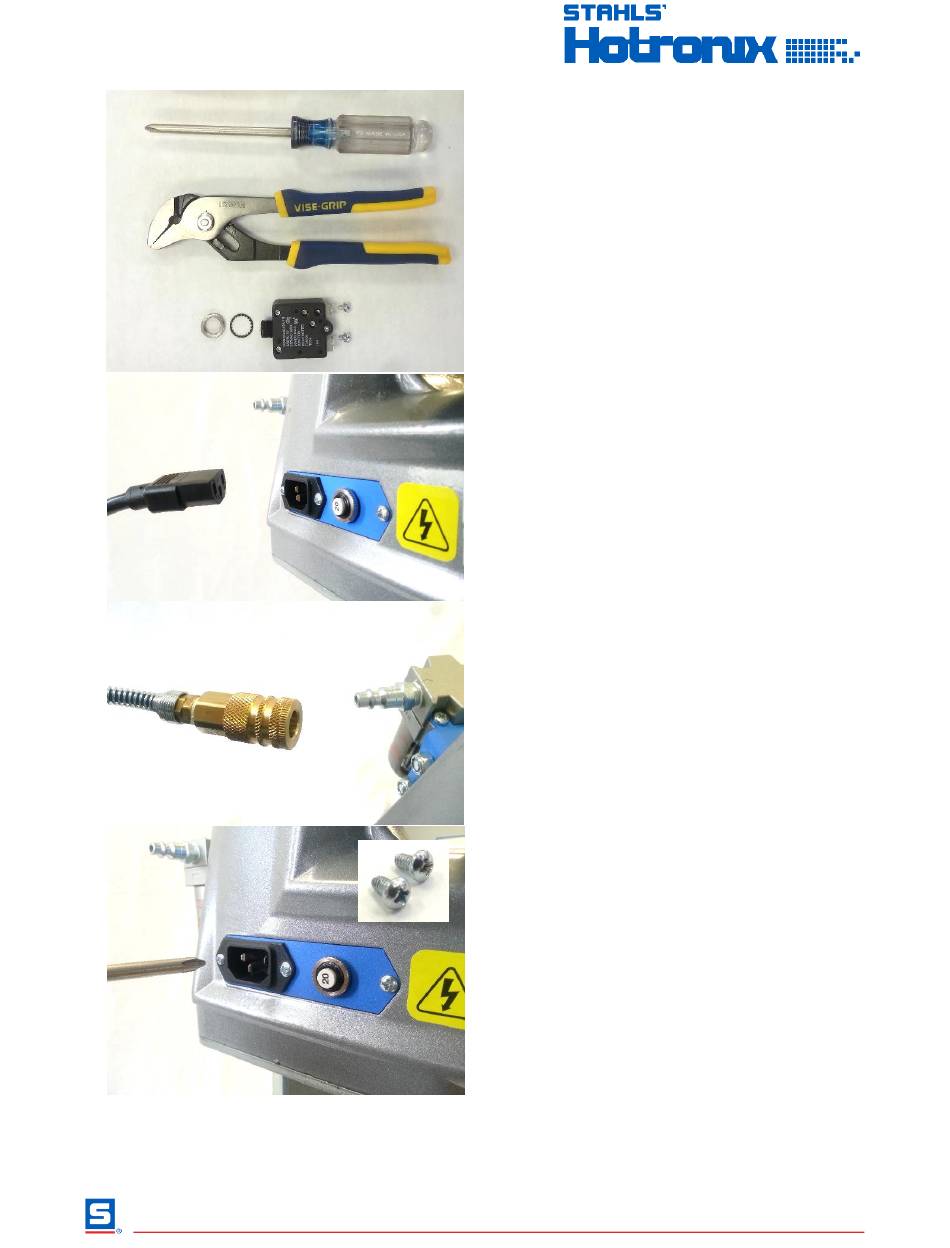

Included Parts:
1. Circuit Breaker
(20A P/N: 1-1331 for 120V)
(10A P/N: 1-1331-2 for 220V-240V)
Required Tools:
2. Pliers
3. #2 Phillips Screwdriver
CAUTION: Detach power cord before
proceeding
CAUTION: Detach main air supply line
before proceeding
Remove Left I/O Panel by unscrewing two
#6-32 x 1/4" Screws using #2 Phillips
Screwdriver
Page 1 of 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stahls Hotronix Air Fusion XRF
Summary of Contents for Stahls Hotronix Air Fusion XRF
- Page 1 Air Fusion (Model XRF) Circuit Breaker Replacement 2016-03-01 Included Parts: 1. Circuit Breaker (20A P/N: 1-1331 for 120V) (10A P/N: 1-1331-2 for 220V-240V) Required Tools: 2. Pliers 3. #2 Phillips Screwdriver CAUTION: Detach power cord before proceeding CAUTION: Detach main air supply line before proceeding Remove Left I/O Panel by unscrewing two #6-32 x 1/4”...
- Page 2 Air Fusion (Model XRF) Circuit Breaker Replacement 2016-03-01 Transfer wire terminals one at a time from old Circuit Breaker to new using #2 Phillips Screwdriver, noting terminal connections and circuit breaker orientation are correct as shown Remove old Circuit Breaker and discard by unscrewing silver mounting ring, using pliers if necessary Install new Circuit Breaker by screwing on...
- Page 3 Air Fusion (Model XRF) Circuit Breaker Replacement 2016-03-01 Repeat process for Right I/O Panel NOTE: 220V Models Only Plug in press and turn ON to verify proper operation Technical Assistance: 1-(800)-727-8520 Manuals: hotronix.com/heat-press-manuals Page 3 of 3...
