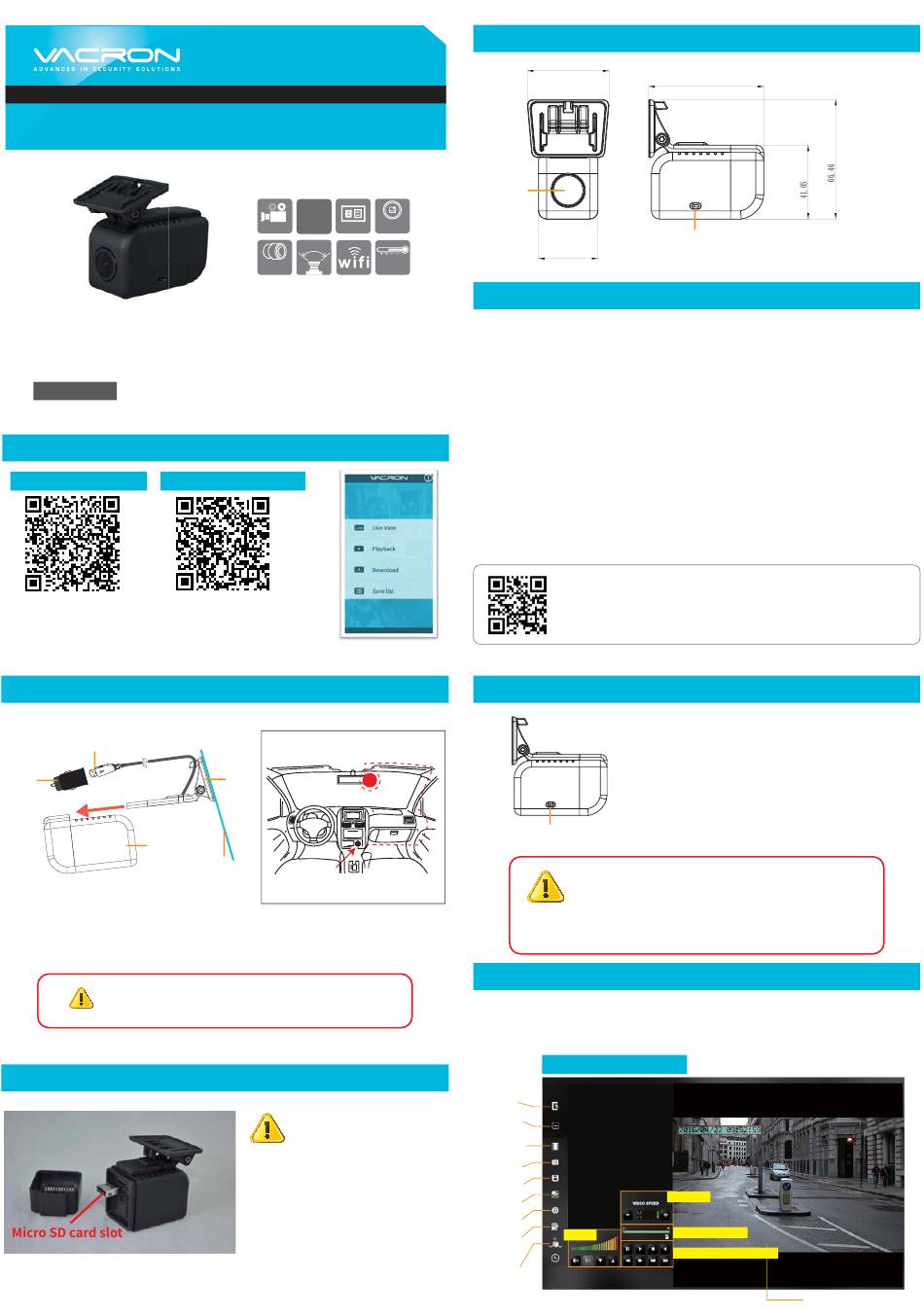

Vacron VVG-CBE57 Quick Start Manual

H.26 Full HD 1080P
Vehicle Video Recorder
WiFi
Please check every accessory we listed below, make sure everything is
included in the product package before use. If you found anything is
missing, please contact the local distributor.

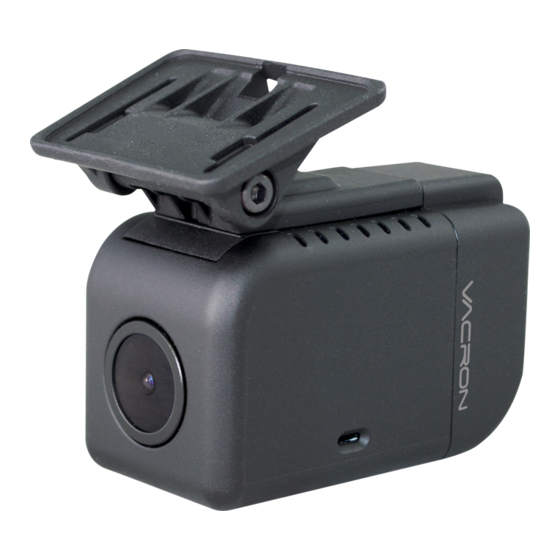

1. DVR Host
Standard Set
2. Bracket holder with 4-meter power cable
3. 5V / 2A cigarette power adaptor
Mobile APP conect
VACRON MOTO FOR IOS VACRON MOTO FOR ANDROID
．Search and download "VACRON MOTO" in Apple store.
．Visit Google play store, search for "VACRON MOTO" and
download.
Installation diagram
Power USB cable
Power
adaptor
DVR host
windshield
Install the device in windshield position.，connect the power USB cable to the
power adaptor, and plug it in the cigarette adapter. When the engine turns on,
the DVR starts recording. The DVR can be removed from the bracket holder if
no uses.
1. Machine should be installed in the area where the wipers
can be cleaned.
(2)Formatted the SD card by initial machine power on.
Attention
Micro SD Card
When the user to purchase a new memory card, or
use their existing card, is required after the first card
is formatted before use.
Full
HD
1/2.7"
DC5V
car cam
CMOS
110˚
LENS
-10~60°C
3.3mm
※Memory card optional.
Installation diagram
Bracket Bracket
holder holder
Best installation position Best installation position
Connect car charger Connect car charger Connect car charger
1.Backup the data before format
the Micro SD Card.
2.Make sure if SD Card is on
unlock mode before executing
Attention
the format.
3.Please execute format as
administrator if fail to format SD card which
is on un-lock mode.
4.Suggest using class 10, 8GB above SD card
5.All memory disks have a limited lifespan.
Please regularly watch videos on the PC
and check the memory disk to ensure
proper functioning.
6.Not support hot-plugging, please power
off the device before removing the SD
card.
Appearance/ Dimensions
45.37
Lens
33
Safety Precautions
Please contact your local distributor if you meet any questions or need any assistance.
We will offer you complete and in time service via a local distributor. However, we still
have the rights to upgrade software and hardware without any kind notice beforehand.
Please read this manual carefully before use of this product.
• Before installation, please ensure wires and cables connect correctly.
• Device has to install in a ventilated environment and the installation has to be guided or
helped by any professional device installer.
• Please use a storage device that recommended by the manufacture, and purchase the
storage device from the official purchase channel.
• Please contact local distributor and technical support service if you have any question and
need any help during product usage.
• Please avoid any solid or liquid drop into the inner components.
• Please have the DVR under the recommended temperature and set it away from the sun
and heating source.
• Please keep this equipment away from the humid surrounding.
• Please keep this equipment away from the smoke and dust environment.
• Please avoid strong collision and do not drop the equipment.
More information about products. Please visit our website
http://www.vacron.com.tw
Made in Taiwan
FUHO Technoloyg Co., Ltd.
Record / Stop record
LED indicator
(1). The device will not work properly without Micro SD Card.
(2). Please format the SD card before use.
(3). It takes around 60s for first power on with new a SD Card,
during this period the RED LED is lighted constantly, after that
Attention
the system will reboot, the RED LED will be flashing, it means
system work properly.
Playback
System will auto create Player.e57 link on SD Card. File name: Player.e57.
Use USB Card Reader and connect to PC for playback.
Click the link to download the Player to playback the video with specific file format.
VACRON Viewer Player
Close
Minimal
window
Select and
playback file
Calendar
Backup
Screen shot
Setting
Volume
Format
& language
G-Sensor
64.03
LED indicator
Dimension：mm
●REC. Indicator
．Power on, around 15s, Red LED Flashing
means continuous recording.
．RED LED is lighted constantly means
systems error.
1. Make sure if SD card is plugged.
2. Verify SD cards health statues.
●WIFI indicator
Green LED flashing means WIFI connected.
Play speed
Time bar/ File mark
Operation control interface
Video playback
2020 APR. V1.0
H11A0E5700
