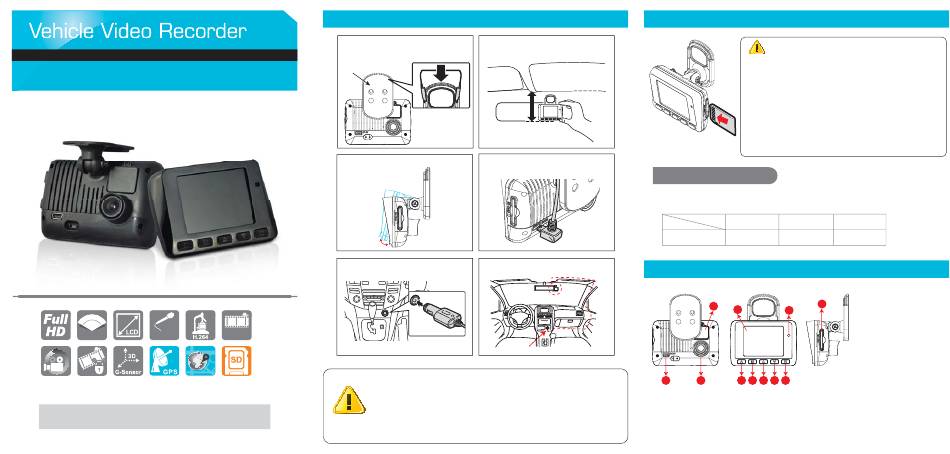

Vacron VVG-CBN13 (G) Quick Start Manual

FullHD / H.264 / Light And Compact
Quick Start Guide
Wit With GPS / W/O GPS
2 5" 2.5"
MIC
view 105º
Built-in
Please review the contents prior to use. Please contact your local dealer
if something not found in the box.
Accessories: Cigar Lighter Adapter / Bracket / Software CD / Bracket /
Remote Control / Quick User Guide
※Storage card is not included in the box as free provision.

Installation Guide

1. Install the device on the windshield
by "Stick-Holder" type
Sticker Adhesive Spot
3. Adjust the view angle properly.
5. Plug in the Cigarette charger.
t h h GPS PS / W/O GPS
30 / 25
FPS
(a) This device should be installed in the windshield of clean and dry.
OPTIONAL
(b) Formatting SD card on the device before beginning to use.
(c) The best location must be in the range of the moving wipes.
(d) Format the memory card in the DVR prior the very first recording.
(e) Set time zone and timing on OSD.OSD.
Notice
(f) NTSC or PAL setting through OSD.NTSC
(g) GPS Mouse performance should be affected by window film more or less.
2. Find the optimal position of
device on the windshield.
Stick-Holder
4. Plug in the DC5V Power Supply.
6. VVR Installation.
Best location
Cigar lighter

SD Card Installation

Warning
(1). Recommend Memory Card "SanDisk" or "Transcend" Class 10
or above. (Minimum of 4GB)
(2). If the memory card is not formatted by our exclusive player, the
device will automatically erase all the data inside of the memory
card after inserting it, start recording at default setting.
(3). Please don't convert Micro SD to SD card to begin recording,
to avoid the damage during recording.
(4). Since memory cards have the writing endurance situation, we
recommend to inspect the memory card and use pc for playback
regularly, to ensure that the memory card can read and write.

Record time estimation

The chart below is for reference only. The length of time recorded
can be varied due to variation in image size may be different.
Capacity
8GB 16GB
Quality
120 Minutes 240 Minutes
High

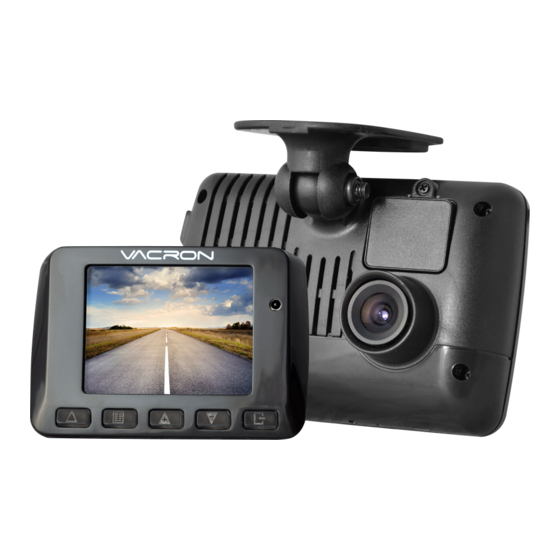

Structure of Product

11
3
4 5
1 2 6 7 8 9 10
Light Indicator:
Red – Recording blinks（Emergency blinks frequently）
Blue - GPS (Not Positioned – Blinks / Positioned – Always Blue)
Green – Night Mode Shimmering Light
32GB
480 Minutes
1. DC5V Power In
2. Lens
3. Battery
4. TFT LCD
5. IR Receiver
6. Emergency Record
7. Menu/Left & Right
8. Up/Volume＋
9. Down/Volume -
10. Enter/Play
11. SD Card Slot
