AXi-HA20-R INSTALLATION MANUAL
PLEASE REVIEW THIS INSTALLATION MANUAL
CAREFULLY BEFORE BEGINNING ANY WORK
!!!DO NOT CONNECT AXI-HA20-R BEHIND NAVIGATION SCREEN, THIS
WILL DAMAGE AXXESS.i INTERFACE IMMEDIATELY!!!

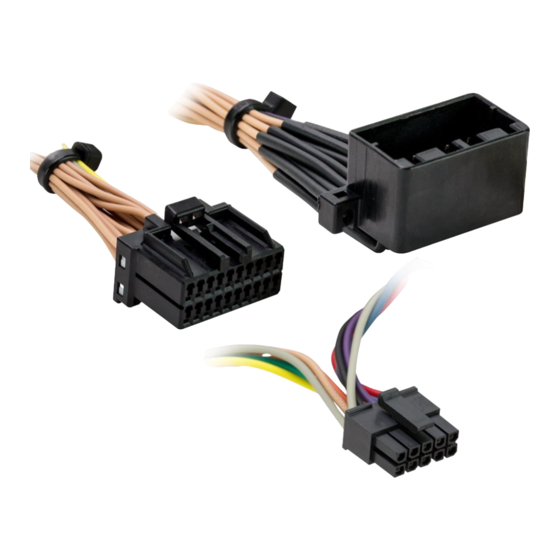

PLUG & PLAY WIRING HARNESS COMPATIBLE WITH
AXi-RGB1
AXi-RGB2
AXi-RGB3
Tech Support: 844-AXX-ESSI WWW.AXXESSINTERFACES.COM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axxess AXi-HA20-R
Summary of Contents for Axxess AXi-HA20-R
- Page 1 AXi-HA20-R INSTALLATION MANUAL PLEASE REVIEW THIS INSTALLATION MANUAL CAREFULLY BEFORE BEGINNING ANY WORK !!!DO NOT CONNECT AXI-HA20-R BEHIND NAVIGATION SCREEN, THIS WILL DAMAGE AXXESS.i INTERFACE IMMEDIATELY!!! PLUG & PLAY WIRING HARNESS COMPATIBLE WITH AXi-RGB1 AXi-RGB2 AXi-RGB3 Tech Support: 844-AXX-ESSI WWW.AXXESSINTERFACES.COM...
- Page 2 Table Of Contents ………………………………….………. COMPATIBLE VEHICLES/WIRING LOCATIONS…..3 PRECAUTIONS.……………………………………..……...4 WIRING CONNECTIONS……………………….…...…..5 PLUG & PLAY HARNESS INSTALLATION……...6 TESTING OPERATION………………………….……...…..7 VEHICLE REASSEMBLY CHECKLIST…………...…..8 IMPORTANT WARNING This product includes instructions for installation which must be carefully followed. The instructions are worded in such a manner to assume that the installer is capable of completing these type of electronic installations.
- Page 3 COMPATIBLE VEHICLES MAKE MODEL YEAR ACURA 2003-2006 …….………. ACURA 2007-2009 ACURA 2007-2009 ACURA 2004 ACURA 2005-2008 ACURA 2004-2008 ACURA 2004-2008 HONDA ACCORD 2003-2007 HONDA ODYSSEY 2005-2007 HONDA PILOT 2006-2008 HONDA RIDGELINE 2006-2008 ACCESSORY GROUND REVERSE LOCATION MAKE MODEL YEAR ACCESSORY GROUND REVERSE ACURA...
- Page 4 Using protective blankets to cover front seats, interior of the vehicle and center console. Always install a fuse 6-12 inches away from AXXESS.i interface, 5 amp fuse should be used. Always secure AXXESS.i interface with Velcro or double side tape to prevent rattling of the interface.
- Page 5 Simply tap in to the factory video signal with the RCA wire and connect that RCA wire to video 1 input of an AXXESS.i AXi-RGB1/AXi-RGB2/AXi-RGB3 video interface.
- Page 6 5 for the DVD-ROM location. Step 2: Disconnect black 20‐pin connector from back of the navigation DVD‐ROM computer. Step 3: Insert male connector of AXi-HA20-R plug‐and‐play harness back into the navigation DVD‐ROM computer. Step 4: Insert previously disconnected factory 20‐pin connector into female connector of AXi-HA20-R plug‐and‐play harness.
- Page 7 OFF, please see installation manual of the (AXi-RGB1/AXi-RGB2/AXi-RGB3) interface you are installing for details. After The Installation • Test all functions of AXXESS.i Interface. • Check operation of all dashboard components such Heat and AC controls, hazard lights, headunit operation etc. ...
- Page 8 Vehicle Reassembly Checklist When performing vehicle reassembly, please make sure to go over the list and checkoff check mark boxes : Check to see if all connectors behind the screen, radio, HVAC etc. were reconnected. Check that LCD screen shuts off with key off, and turns back on with key on. Check touch‐screen operation.
