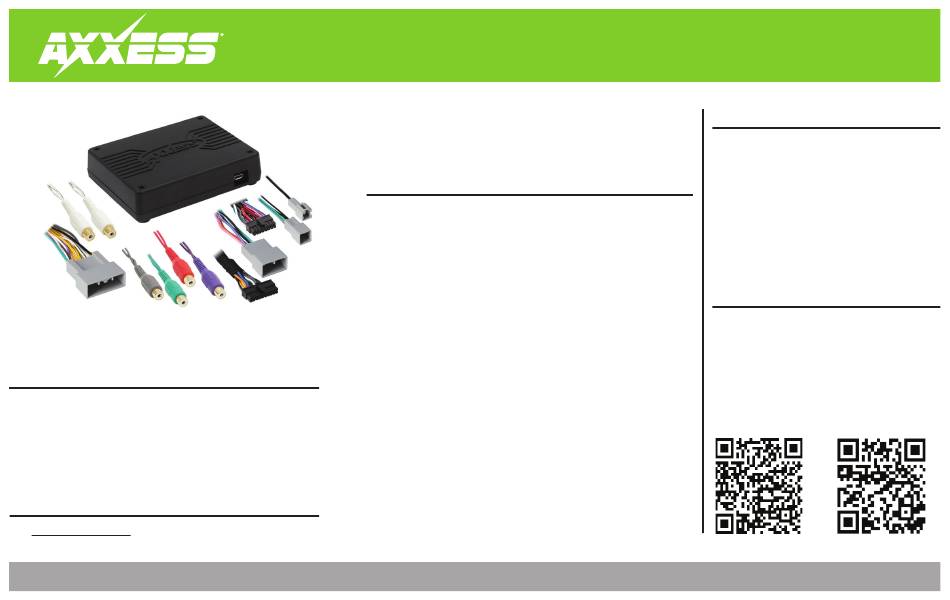

Axxess AXDSPL-HN3 Installation Instructions Manual

For honda dsp interface with amp bypass harness 2016-up
Hide thumbs

Advertisement

Quick Links

Download this manual

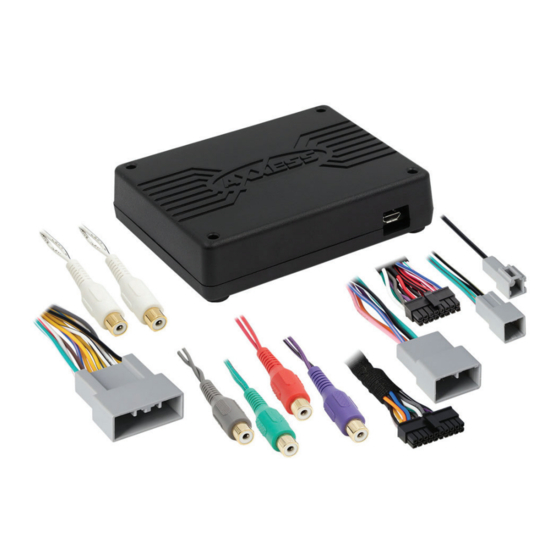

INTERFACE COMPONENTS
• AXDSPL-HN3 interface
• AXDSPL-HN3 interface harness
• AXDSPL-HN3 amp bypass harness
APPLICATIONS
Visit axxessinterfaces.com for current application list
AxxessInterfaces.com
Honda DSP Interface With Amp Bypass Harness
2016-Up
INTERFACE FEATURES
• Includes a DSP (Digital Signal Processor)
• 15 Band graphic EQ
• 6 outputs including front, rear, and subwoofer
• Independent equalization for front, rear, and sub
• Selectable low pass, band pass, and high pass filters
• Selectable crossover slopes; 12db, 24db, 36db, 48db
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits
• Designed for amplified models
• Includes an amp bypass harness
• Internal header port for adding interface modules
• Retains level control of subwoofer through the factory radio
• Settings adjusted via Bluetooth
in a smart device application (tablet
®
or mobile phone), compatible with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• Micro-B USB updatable
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
AXDSPL-HN3
I N S T A L L A T I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
AXDSPL-BT Installation...........................................4
AXDSPL-SP Installation...........................................5
Mobile App ........................................................6-14
Specifications ........................................................15
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
Apple App Store
Google Play Store
iOS 12.1 or higher
REV. 3/2/20 INSTAXDSPL-HN3

Advertisement

loading
Need help?

Need help?

Do you have a question about the AXDSPL-HN3 and is the answer not in the manual?

Questions and answers

Related Manuals for Axxess AXDSPL-HN3

Summary of Contents for Axxess AXDSPL-HN3

  • Page 1: Table Of Contents

    • AXDSPL-HN3 interface harness Google Play Store • Retains level control of subwoofer through the factory radio iOS 12.1 or higher • AXDSPL-HN3 amp bypass harness • Settings adjusted via Bluetooth in a smart device application (tablet ® or mobile phone), compatible with both Android and Apple devices •...

  • Page 2: Connections

    CONNECTIONS White / Front Left Woofer + Yellow/Blue / Front Left Tweeter + Brown/White / Center + White/Black / Front Left Woofer - Yellow/Black / Front Left Tweeter - Blue/Pink / Center - Gray / Front Right Woofer + Yellow/Red / Front Right Tweeter + Green/White / Subwoofer + Gray/Black Front Right Woofer - Yellow/Orange Front Right Tweeter -...

  • Page 3: Installation

    INSTALLATION 1. Locate the factory amp in the passenger side kick panel. Unplug and remove the amp. 2. Install the AX-DSPX-HN3 amp bypass harness to the vehicle and make all necessary connections, but leave the amp turn-on wire disconnected. 3. Connect the AX-DSPX-HN3 amp bypass harness to the AX-DSPX-HN3 interface. 4.

  • Page 4: Axdspl-Bt Installation

    BLUETOOTH STREAMING INTERFACE • The AXDSPL-BT Bluetooth streaming interface can be used to stream media directly to the interface. • While streaming media the volume on the phone will be used. As an option, the 16-pin Header AXBK-1 (sold separately) can be used to control the volume. AX-DSPL-BT 1.

  • Page 5: Axdspl-Sp Installation

    TOSLINK DIGITAL OUTPUT • The AXDSPL-SP Toslink digital output can be used for adding a digital output to the interface. AX-DSPL-SP 1. Important! Unplug the interface from the vehicle. 16-pin Header 16-pin Header 2. Remove (4) Phillips screws securing the interface, then remove the top cover, exposing AX-DSPL-BT the circuit board within.

  • Page 6: Mobile App

    MOBILE APP Setup Instructions • General information tab for installing the interface. Continued on the next page...
  • Page 7 MOBILE APP (CONT.) Bluetooth Connection • Scan - Press this button to start the Bluetooth pairing process, then select the interface • Disconnect - Disconnects the interface from the app. once it is found. “Connected” will appear in the top left corner of the app once paired. Note: The ignition must be cycled on during this process.
  • Page 8 MOBILE APP (CONT.) Configuration • Identify - Click this button to send a test tone to the front left speaker. • Recall Configuration - Recalls a configuration from the mobile device. • Reset to Defaults - Resets the interface to factory settings. During the reset process the amp(s) •...
  • Page 9 MOBILE APP (CONT.) Outputs Output Channels • Location - Location of speaker. • Invert - Will invert the phase of the speaker. • Group - Used to join channels together for simple equalization. Example, left • Mute - Will mute desired channel(s) for tuning individual channels. front woofer/midrange and left front tweeter will be considered simply left front.
  • Page 10 MOBILE APP (CONT.) Crossover Adjust • Select the desired crossover filter per channel, low pass, band pass, or high pass • Select the desired crossover slope per channel, 12db, 24db, 36db, or 48db • Select the desired crossover frequency per channel, 20hz to 20khz Note: The front and rear channels default to a 100Hz high pass filter to keep the low frequency signals out.
  • Page 11 MOBILE APP (CONT.) Equalizer Adjust • All channels can be adjusted independently within this tab with 15 bands of available equalization. It is best to tune this by using an RTA (Real Time Analyzer). • The Gain slider on the far left is for the channel selected. Continued on the next page REV.
  • Page 12 MOBILE APP (CONT.) Delay Adjust • Allows a delay of each channel. If a delay is desired, first measure the distance (in inches) from each speaker to the listening position, then enter those values to the corresponding speaker. Add (in inches) to the desired speaker to delay it.
  • Page 13 MOBILE APP (CONT.) Inputs/Levels • Chime Volume - Not applicable in this application. • Amp Turn On • Signal Sense - Will turn the amp(s) on when an audio signal is detected, and keep on for • Clipping Level - Use this feature to protect sensitive speakers like tweeters from 10 seconds after the last signal.
  • Page 14 MOBILE APP (CONT.) Locking Down Data Last and the most important. You must lock down your configuration and cycle the key!!!

  • Page 15: Specifications

    SPECIFICATIONS Input Impedance 1M Ohm Sampling 48kHz Input Channels S/N Ratio 105dB @ 5-volts RMS Input Options High Level or Low Level Operating Voltage 10-16 volts DC Input Type Differential balanced Standby Current Draw Input Voltage 0 - 28-volts (peak-to-peak) Operation Current Draw 150mA (high level range)
  • Page 16 AXDSPL-HN3 I N S T A L L A T I O N I N S T R U C T I O N S Having difficulties? We’re here to help. Contact our Tech Support line at: 386-257-1187 Or via email at: techsupport@metra-autosound.com...
