j.
The "Advanced Settings..." button enables the user to set the Advanced Parameters (see
AC or BLDC/AC (Trapezoidal Driven) Motor Advanced Settings, page
k. The "Generate Source Files" button enables the user to generate the GUI configuration .h files. A
"Save" dialog window will appear, where the user can select in which folder to create the file as well
as the "Source" directory in the software library path (see
Libraries, page
16).

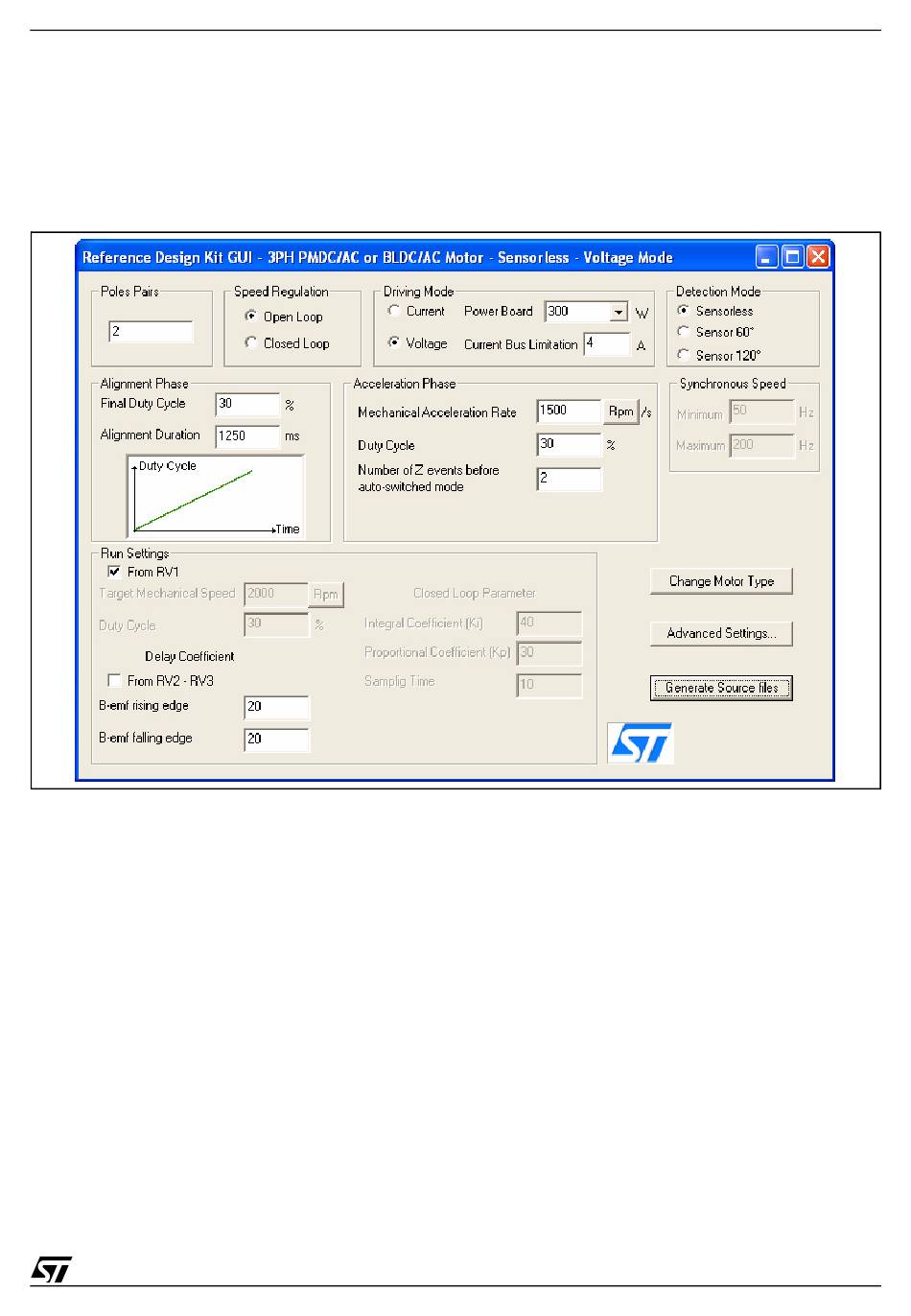

Figure 2. 3PH PMDC/AC or BLDC/AC (Trapezoidal Driven) Motor Basic Parameter Window
UM0121 - USER MANUAL
6).
Compiling the Standalone RDK
3PH PMDC/
5/21
