Page 1: Quick Start Guide

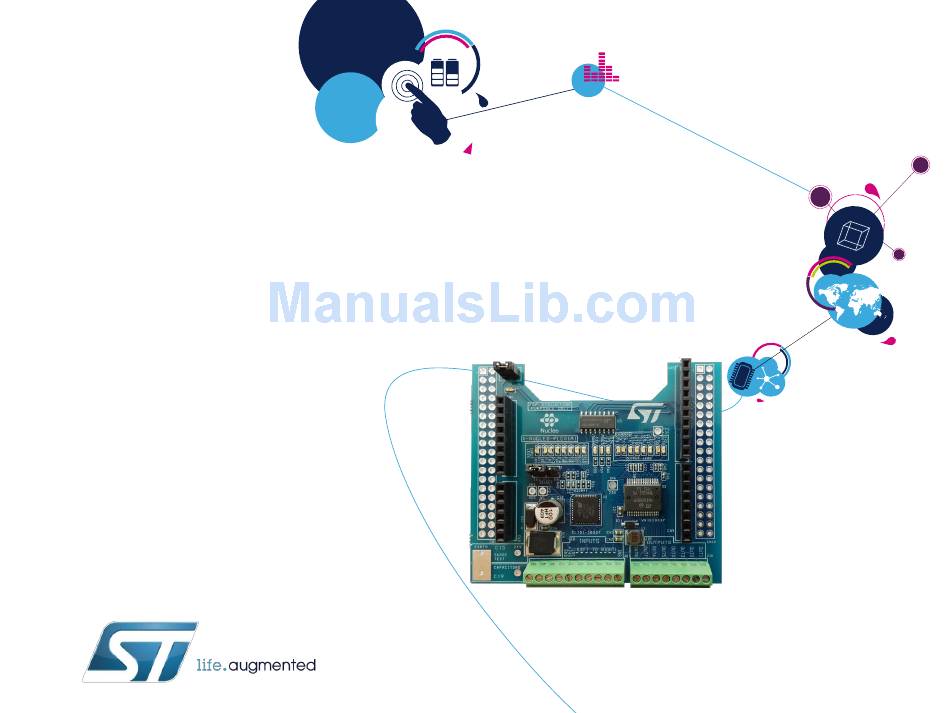

Quick start guide Industrial input/output expansion board based on CLT01-38SQ7 and VNI8200XP for STM32 Nucleo (X-NUCLEO-PLC01A1) Version 1.0 (September 02, 2015) - Page 2 Overview Introduction to the STM32 Open Development Environment STM32 Nucleo industrial input/output expansion board • Hardware overview • Software overview Documents & related resources Setup & demo examples...
- Page 3 Overview Introduction to the STM32 Open Development Environment STM32 Nucleo industrial input/output expansion board • Hardware overview • Software overview Documents & related resources Setup & demo examples...
- Page 4 The STM32 Open Development Environment (ODE) consists of a set of stackable boards and a modular open SW environment designed around the STM32 microcontroller family. STM32Cube development software STM32 Nucleo expansion boards STM32Cube STM32 Nucleo development boards expansion software Compatibility with multiple Development environments www.st.com/stm32ode...
-
Page 5: Development Boards
Power supply STM32 microcontroller through USB or external source Integrated debugging Complete product range and programming from ultra-low power to high-performance ST-LINK probe ST Morpho and Arduino™ UNO R3 extension headers www.st.com/stm32nucleo... -
Page 6: Expansion Boards
Boards with additional functionality that can be plugged on top of the STM32 Nucleo development board directly or stacked onto another expansion board. Connect Power Move/Actuate Interact Sense Motion MEMS sensors X-NUCLEO-IKS01A1 Environmental sensors DIL24 support for new devices www.st.com/x-nucleo... -
Page 7: Software Components
CUBE HAL, which provides abstracted access to board functionalities through high-level APIs. • Compatibility with multiple Development Environments • The STM32 Open Development Environment is compatible with a number of IDEs including IAR EWARM, Keil MDK, and GCC-based environments. www.st.com/stm32cube... - Page 8 NFC, Wi-Fi, GNSS Audio amplifier ACCESS Touch controller Translate Operation Amplifier CREATE Stepper motor driver Move / Actuate DC & BLDC motor driver Industrial input / output POWER Power Energy management & battery General-purpose microcontrollers PROCESS Process Secure microcontrollers Software www.st.com/stm32ode...
- Page 9 Overview Introduction to the STM32 Open Development Environment STM32 Nucleo industrial input/output expansion board • Hardware overview • Software overview Documents & related resources Setup & demo examples...
-
Page 10: Hardware Overview
Hardware overview Arduino UNO R3 connector X-NUCLEO-PLC01A1 hardware description • The X-NUCLEO-PLC01A1 is an industrial input/output evaluation board designed around the CLT01-38SQ7 and VNI8200XP devices, allowing the expansion of the STM32 Nucleo boards. • The CLT01-38SQ7 and the VNI8200XP communicate with the STM32 Nucleo board through a SPI link available on the Arduino UNO R3 connector. -
Page 11: Software Overview
X-CUBE-PLC1 software description • The X-CUBE-PLC1 is a software package which provides drivers running on the STM32 microcontroller for the CLT01-38SQ7 and the VNI8200XP devices. It is expansion software for the STM32Cube tool that eases portability across different STM32 MCUs. •... - Page 12 Overview Introduction to the STM32 Open Development Environment STM32 Nucleo industrial input/output expansion board • Hardware overview • Software overview Documents & related resources Setup & demo examples...
- Page 13 DB2622: Industrial input/output expansion board based on VNI8200XP and CLT01- 38SQ7 for STM32 Nucleo – Databrief • UM1918: Getting started with the industrial input/output expansion board based on VNI8200XP and CLT01-38SQ7 for STM32 Nucleo – User manual X-CUBE-PLC1: Product webpage (Link) •...
- Page 14 Overview Introduction to the STM32 Open Development Environment STM32 Nucleo industrial input/output expansion board • Hardware overview • Software overview Documents & related resources Setup & demo examples...
-
Page 15: Hardware Prerequisites
Setup & demo examples Hardware prerequisites • STM32 Nucleo industrial input/output expansion board (X-NUCLEO-PLC01A1) • STM32 Nucleo board (NUCLEO-F030R8, NUCLEO- F103RB NUCLEO-F401RE) • Standard Type A / mini B USB cable • External power supply, 24V... -
Page 16: Software Prerequisites
Setup & demo examples Software prerequisites • ST-LINK/V2-1 USB driver (Link) • ST-LINK/V2-1 firmware upgrade (Link) • X-CUBE-PLC1 (Link) • Copy the .zip file content into a folder on your PC • The package contains the source code example (Keil, IAR, SW4STM32) based on... - Page 17 Start coding in just a few minutes with X-CUBE-PLC1 Use NUCLEO-F030R8 or NUCLEO-F103RB or NUCLEO-F401RE with X-CUBE-PLC1 package X-CUBE-PLC1 package www.st.com/x-nucleo Go to Generic Nucleo docs Select CLT01-38SQ7 SPI driver X-NUCLEO-PLC01A1 VNI8200XP SPI driver PLC interface example Application examples Download and unpack X-CUBE-PLC1...
- Page 18 www.st.com/stm32ode...
