LEGS
CONNECTOR
STEP-I
Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the
Wood.
NOTE: During assembly of the furniture please match joints with the corresponding
letters or numbers stamped on wood.
STEP-II
Carefully lay the TOP upside down on your clean surface, insert and attach the legs as shown
in the assembly photographs using the M6 x 50mm bolts provided. You may need to wiggle
the legs as you finish tightening the bolts to make sure they are fully secured.
NOTE: DO NOT USE POWER TOOLS AS IT MAY DAMAGE THE ITEM.
ASSEMBLY INSTRUCTIONS FOR THE LO41
TOP
HARDWARE
Advertisement
Table of Contents
Related Manuals for kingsley-bate LO41
Summary of Contents for kingsley-bate LO41

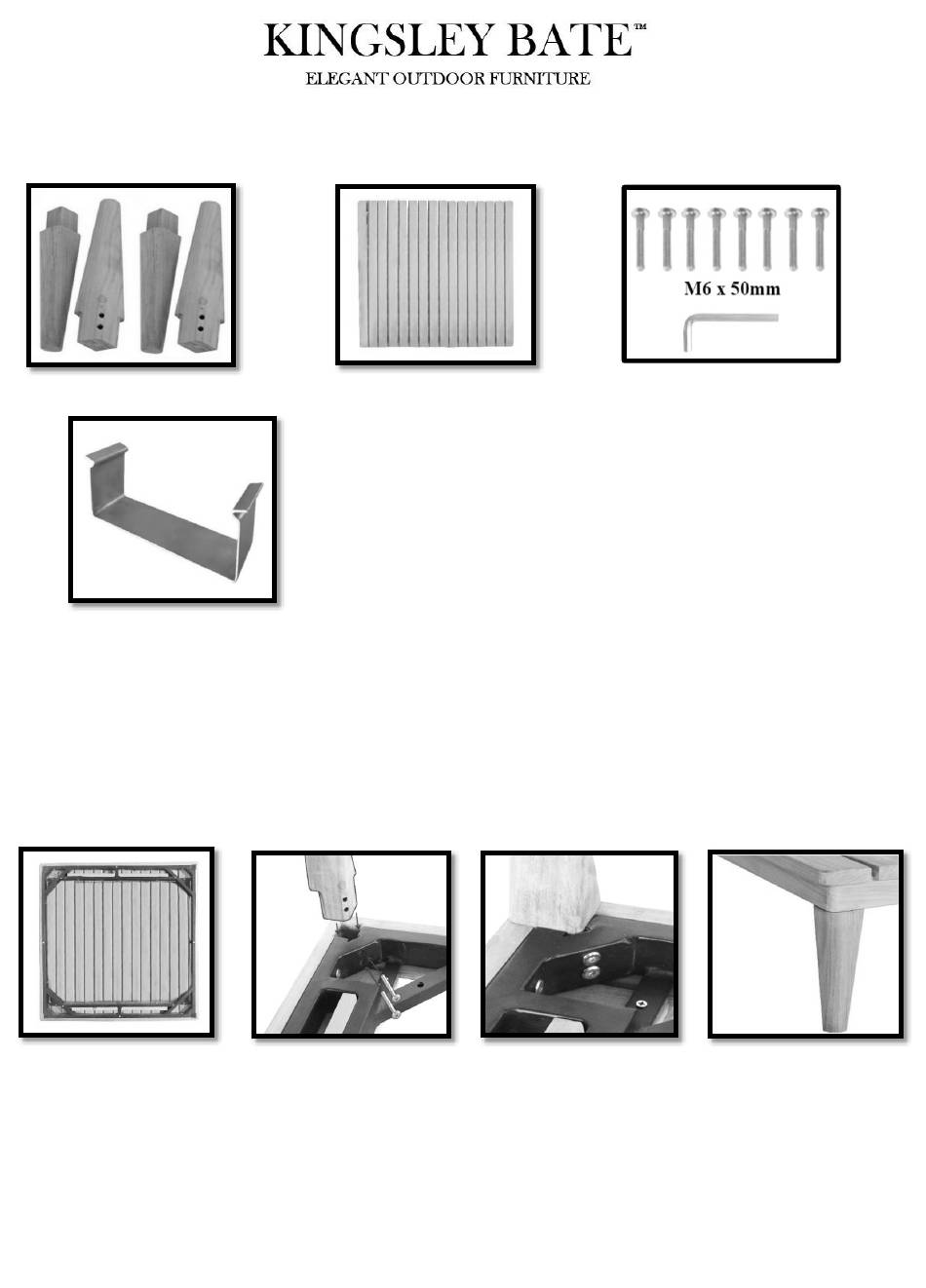

- Page 1 ASSEMBLY INSTRUCTIONS FOR THE LO41 LEGS HARDWARE CONNECTOR STEP-I Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the Wood. NOTE: During assembly of the furniture please match joints with the corresponding letters or numbers stamped on wood.
