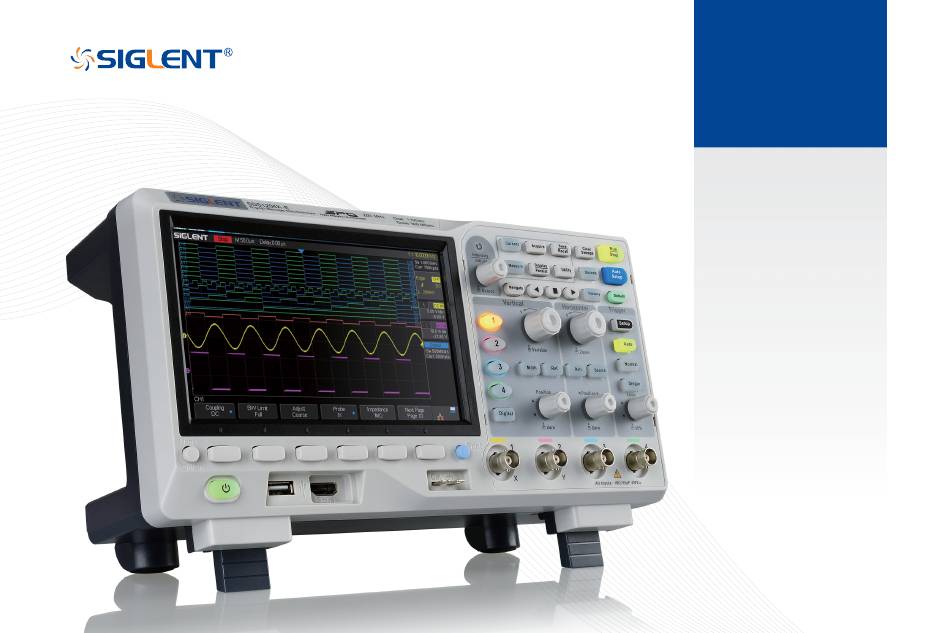

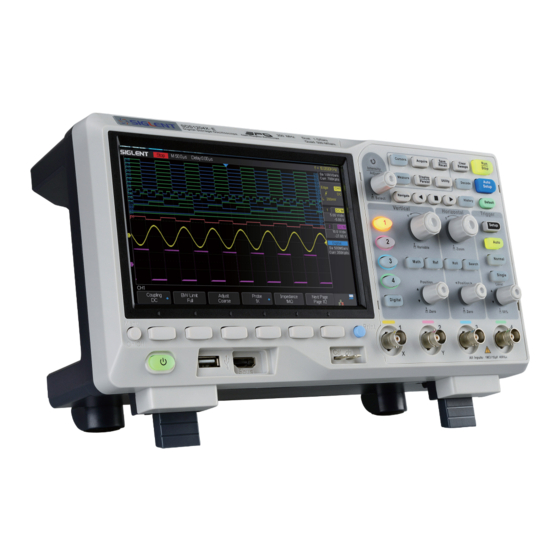

- Page 1 SDS1000X-E Series SDS1000X-U Series Super Phosphor Oscilloscope Quick Start July,2020...
-
Page 2: Copyright Information
SIGLENT products are protected by patent law in and outside of P.R.C. SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at company’s sole decision. Information in this publication replaces all previously corresponding material. -
Page 3: General Safety Summary
General Safety Summary Use Proper Overvoltage Protection Carefully read the following safety precautions to avoid any personal injury or damage to the instrument and any products connected to it. To avoid Make sure that no overvoltage (such as that caused by a thunderstorm) can potential hazards, please use the instrument as specified. - Page 4 Safety Terms and Symbols General Care and Cleaning Terms on the product. These terms may appear on the product: Care Indicates direct injuries or hazards that may happen. Do not store or leave the instrument in direct sunshine for long periods of DANGER time.
-
Page 5: Table Of Contents
Contents Copyright Information............................General Safety Summary............................Quick start................................The Front Panel ..............................The Rear Panel..............................Front Panel Overview............................. User Interface............................... Using Security Lock..............................Troubleshooting..............................Contact SIGLENT..............................1-SDS1000X-E & SDS1000X-U Series Digital Oscilloscope... -
Page 6: Quick Start
Please check the accessories according to the Figure 3 2-Channel Scope Top View Figure 4 4-Channel Scope Top View packing list. If the accessories are incomplete or damaged, please contact your SIGLENT sales representative. SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -2... - Page 7 Channel Scope) Channel Scope) Note: If at any time the fuse requires replacement, please replace only with a fuse of the same rating as the original. If there are questions, please contact Siglent directly. 3- SDS1000X-E & SDS1000X-U Series Digital Oscilloscope...
- Page 8 User Interface displays immediately. Connect the Probe Compensation Signal Output Terminal SIGLENT provides passive probe for the SDS1000X-E and SDS1000X-U series oscilloscope. Please refer to Ground Terminal corresponding Probe User Manual for detailed technical information. Connect the probe: 2-channel scope 1.Connect the BNC terminal of the probe to one of the channel BNC connector of the front panel.
- Page 9 Quick Start Probe Compensation You should properly compensate the probe at first use of it. Non-compensated or inadequate compensated probe may cause inaccurate measurement. The following steps are about probe compensation: 1. Perform step 1, 2 , 3 and 4 of “Functional Inspection”. 2.
-
Page 10: The Front Panel
13. Trigger Control 20. SBUS Digital Inputs ① 7. Auto Setup 14. Menu on/off 21. Probe Compensation/ Ground Terminal ① WARNING: Non-standard HDMI interface, Siglent device ONLY, or you will damage your devices. SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -6... - Page 11 SDS1002X-E Front Panel 1.User Interface 6.Trigger Control 11.USB Host 2.Universal Knob 7.Horizontal Control 12.Function Menu Softkeys 3.Function Menus 8.Channel Vertical Control 13.Menu On/Off 4.Run/Stop 9.Probe Compensation 14.Power On/Off 5.Auto Setup 10.Analog Channel Inputs 7- SDS1000X-E & SDS1000X-USeries Digital Oscilloscope...
- Page 12 SDS1000X-U Front Panel 15. Menu Softkey 1. LCD Display 8.Navigate 16. One- Button shortcut for Save 2. Universal Knob 9.History 17. Analog Channel 3. Common Function Menus 10. Default 4. Clear Sweeps 18. Power Button 11. Vertical Control, Math and REF 19.
-
Page 13: The Rear Panel
SDS1004X-E Rear Panel 1.Handle Pull up the handle vertically for easy carrying of the instrument. When you do not need the handle, press it down. 2.LAN Interface The instrument can be connected to network via this interface to perform remote control. 3.USB Device The oscilloscope support SCPI remote control commands, user can control the oscilloscope through this interface... - Page 14 SDS1002X-E Rear Panel 1. Handle Pull up the handle vertically for easy carrying; press it down if you do not need the handle. 2.Safety Lock Hole You could lock the instrument in a fixed location using a security lock (please buy it yourself ) via the lock hole 3.
- Page 15 SDS1000X-U Rear Panel 1.Handle Pull up the handle vertically for easy carrying of the instrument. When you do not need the handle, press it down. 2.LAN Interface The instrument can be connected to network via this interface to perform remote control. 3.USB Device The oscilloscope support SCPI remote control commands, user can control the oscilloscope through this interface...
-
Page 16: Front Panel Overview
Front Panel Overview Horizontal Control Trigger Control Quickly enter into the Roll mode. The timebase range is from 50 ms/div to 100 s/div. E n a b l e o r d i s a b l e s e a r c h function. - Page 17 Interval Trigger Runt Trigger Runt trigger includes positive runt trigger and negative runt trigger.This mode The time interval from the rising edge (or falling edge) of input signal passes is used to trigger pulses that pass through one trigger level but fails to pass through the trigger level to the next rising edge(or falling edge) passes through the other trigger level as shown in the figure below.
- Page 18 Pattern Trigger IIC Trigger After setting the serial 1 or 2 to IIC type in trigger menu, you can use Identify a trigger condition by looking for a specified pattern. This pattern universal knob to set to trigger on start/stop condition, restart, no is a logical combination (AND/OR/NAND/NOR) of the two channels.
- Page 19 SPI Trigger After setting the serial trigger to SPI type in trigger menu, you can select to trigger on MISO data or MOSI data. The data length are variable to set from 4 to 96. UART/RS232 Trigger After setting the serial trigger to UART/RS232 type in trigger menu, you can select to trigger on start , stop, checksum error or data. The data width are variable to set from 5 to 8bits.
- Page 20 Vertical Control SDS1000X-E 4-channel scope SDS1000X-E 2-channel scope SDS1000X-U scope Analog input channels. The four channels are marked by different colors which are also used to mark both the waveforms on the screen and the Vertical POSITION Set the vertical offset of current waveform. channel input connectors.
- Page 21 Run Control Press the button to enable the waveform auto setup function. The oscilloscope will automatically adjust the horizontal time base, vertical scale and trigger mode according to the input signal to provide a triggered stable display. Press the button to set the state of the instrument to “RUN” or “STOP”. In the “RUN” state, the button glows yellow; In “STOP” state, the button glows red.
- Page 22 Universal Knob Function Menus Adjust Waveform Intensity/ Graticule/ Transparence 4-channel scope You can press → Intensity and use the knob to adjust waveform intensity (0% ~ 100%). To adjust graticule (0% ~ 100%) or transparency(20% ~ 80%) ,please operate in the same way as waveform intensity. Universal Knob In menu operation, when the light below the knob is lit, you could turn the knob to select between submenus under the current menu and press it down...
- Page 23 Press the button to open the cursor function. It provides manual and track cursor mode. Press the button to enter the display menu and quickly enabled the persist function. User can set the grid, intensity, graticule, transparency. Press the button to enter the utility menu to set system functions or parameters, such as IO set, sound, language. In addition, some advanced functions (such as Pass/Fail, Do Self Cal, install option function and Update) are also supported.
-
Page 24: User Interface
User Interface 1. Product Logo SIGLENT is the registered trademark of our company. 2. Channel Label/Waveform Different channels are marked by different colors and the color of the waveform complies with the color of the channel. 3. Working state Available states include Arm, Ready, Trig’d, Stop, Auto. - Page 25 6. Trigger Position Display the trigger position of the waveform on the screen. 7. Frequency Counter Display the firmware frequency of current waveform. 8. Sample Rate/Memory Depth Display the current sample rate and memory depth of the oscilloscope. Use horizontal SCALE knob to modify the parameter. 9.
-
Page 26: Using Security Lock
Using Security Lock If needed, you could use the security lock (please buy it yourself) to lock the instrument in a fixed location. The method: align the clock with the clock hole and plug it into the lock hole vertically, turn the key clockwise to lock the instrument and then pull the key out. Security lock hole SDS1000X-E &... -
Page 27: Troubleshooting
(2) Check if the power switch is faulted. (3) Check whether the fuse is burned out. If the fuse needs to be changed, please contact SIGLENT as soon as possible and return the instrument to the factory to have it repaired by service personnel authorized by SIGLENT. - Page 28 (3) Make sure the USB disk being used is of flash type, the instrument does not support USB of hardware type. (4) Restart the instrument and then insert the USB to check it. (5) If it is still in abnormal use, please contact with SIGLENT. SDS1000X-E & SDS1000X-U Series Digital Oscilloscope -24...
-
Page 29: Contact Siglent
Contact SIGLENT America SIGLENT Technologies America, Inc 6557 Cochran Rd Solon, Ohio 44139 Tel: 440-398-5800 Toll Free:877-515-5551 Fax: 440-399-1211 info@siglent.com www.siglentamerica.com Headquarters SIGLENT TECHNOLOGIES CO., LTD. Blog No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao’an District, Shenzhen, 518101, China. - Page 30 www.siglent.com...
