- Page 1 Quick Start SDS1000CML/CNL/DL Series Digital Oscilloscope V1.1 2013 SIGLENT TECHNOLOGIES CO., LTD...
- Page 2 CO., LTD Declaration SIGLENT products are protected by patent law in and outside of P.R.C. SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at company’s sole decision. Information this...
-
Page 3: Safety Requirement
SIGLENT Safety Requirement General Safety Summary Carefully read the following safety precautions to avoid personal injuries and prevent damage to the instrument and any products connected to it. To avoid potential hazards, please use the instrument as specified. Only qualified technician should perform service procedures... -
Page 4: Safety Terms And Symbols
SIGLENT Do not Operate with Suspected Failures If you suspect that there is a damage of the instrument, please let a qualified service personnel check it. Avoid Circuit or Components Exposed Do not touch exposed contacts or components when the power is... -
Page 5: General Care And Cleaning
SIGLENT General Care and Cleaning Care: Do not store or leave the instrument in direct sunshine for long periods of time. Notice: To avoid damages to the instrument or probe, please do not leave them in fog, liquid, or solvent. -
Page 6: Table Of Contents
Vertical Control .................. 11 Horizontal Control................13 Trigger Control...................14 RUN/STOP ..................15 SINGLE .....................15 AUTO ....................15 Universal Knob ..................16 Function Menus.................17 DEFAULT SETUP................18 HELP Information ................18 PRINT....................18 User Interface ..................19 Using Security Lock.................22 Troubleshooting .....................23 Contact SIGLENT ..................25 SDS1000CML/CNL/DL Quick Start V... -
Page 7: Quick Start
The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT would not provide free maintenance or replacement. 2. Inspect the instrument. If there are instruments found damaged, defective or failure in electrical and mechanical tests, please contact SIGLENT. -

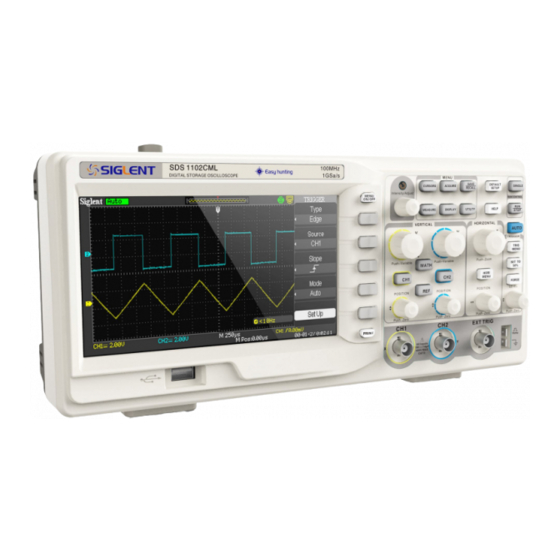

Page 8: Appearance And Dimension
SIGLENT Appearance and Dimension Figure 1 Front View Figure 2 Side View 2 SDS1000CML/CNL/DL Quick Start... -
Page 9: Adjust The Supporting Legs
SIGLENT Adjust the Supporting Legs Adjust the supporting legs properly to use them as stands to tilt the oscilloscope upwards for stable placement as well as easier operation and observation of the instrument. Figure 3 Adjust the Supporting Legs SDS1000CML/CNL/DL Quick Start 3... -
Page 10: Connect To Ac Power Supply
Power socket Note: In want of replacing the fuse, please return the instrument to the factory that produced it to have it repaired by qualified service personnel authorized by SIGLENT. 4 SDS1000CML/CNL/DL Quick Start... -
Page 11: Power-On Inspection
SIGLENT Power-on Inspection When the scope is energized, press the power key at the top of it to turn it on. During the start-up progress, the instrument performs a series of self-test items and you can hear the sound of relay switching. -
Page 12: Connect The Probe
SIGLENT Connect the Probe SIGLENT provides passive probes for the SDS1000CML/CNL/DL series oscilloscope. Please refer to corresponding Probe User Manual for detailed technical information. The following are the probes specified for this oscilloscope. Type Description PB470 70 MHz，passive probe PP510... -
Page 13: Function Inspection
SIGLENT Function Inspection 1. Press “DEFAULT SETUP” to restore the oscilloscope to its default settings. 2. Connect the ground alligator clip of the probe to the Ground Terminal on the front panel. 3. Use the probe to connect the CH1 Input Terminal and the Compensation Signal Output Terminal on the front panel. -
Page 14: Probe Compensation
SIGLENT Probe Compensation You should properly compensate the probe at first use of it. Non-compensated or inadequate compensated probe may cause inaccurate measurement. The following steps are about probe compensation: 1. Perform step 1, 2 , 3 and 4 of “Function Inspection”. - Page 15 SIGLENT The Front Panel 17 16 14 13 12 Description Description Power On/Off Trigger Control Area Menus On/Off Probe Compensation Universal Knob Horizontal Control Area Function Menus EXT TRIG Terminal Default Setup Vertical Control Area Help Channel Input Terminal Single...
-
Page 16: The Rear Panel
SIGLENT The Rear Panel 1. Handle Pull up the handle vertically for easy carrying. Press it down if you do not need the handle. 2. AC Power Input Terminal The power available of the oscilloscope is 100~240V, 45~440Hz. Please use the power cord provided as accessories to connect the instrument to AC power. -
Page 17: Function Introduction Of Front Panel
SIGLENT Function Introduction of Front Panel Vertical Control : Input channels. These two channels are marked with different colors to distinguish different input channels and their waveforms. Pressing the channel button will turn on the corresponding channel as well as its menu, and pressing it twice continuously will turn off the channel. - Page 18 SIGLENT Modify vertical scale of the current channel. Turn clockwise decrease voltage scale while turn counterclockwise to increase it. The amplitude of the waveform will enlarge or reduce and the scale message at the lower-left corner of the screen will also change as the scale changes. Press down the knob to quickly switch the vertical scale adjustment modes between “Coarse”...
-
Page 19: Horizontal Control
SIGLENT Horizontal Control HORIZ MENU : Press the button to open horizontal control menu under which you can turn on/off the delay sweep function and switch the save modes between “long save” and “normal save”. : Modify the trigger position. The trigger point will move left or right relative to the center of the screen when you adjust the knob. -
Page 20: Trigger Control
SIGLENT Trigger Control TRIG MENU : Press the button to open trigger menu under which five trigger modes are supported. SET TO : Press the button to set trigger level to the middle of the maximal voltage and the minimal voltage to quickly stabilize the current waveform. -
Page 21: Run/Stop
SIGLENT RUN/STOP : Press the button to set the state of the instrument to STOP “RUN” or “STOP”. When in “RUN”, the indicator light displays yellow; When in “STOP”, it displays red. SINGLE SINGLE : Press the button to turn the trigger mode to “Single”. -
Page 22: Universal Knob
SIGLENT Universal Knob Adjust waveform brightness While the light above the knob is dark, adjusting the knob will change the waveform brightness, which ranges from 30%~100%. Turning clockwise means increase while counterclockwise means decrease. You can also select “intensity” in “DISPLAY” menu and then adjust the knob to change the waveform brightness. -
Page 23: Function Menus
SIGLENT Function Menus CURSORS : Press the button to enter the cursor measurement function menu. The instrument provides three measure modes: Manual, Track and Auto. : Press the button to enter the acquire function menu, ACQUIRE under which you could set the acquisition mode, sampling mode and dot inserting mode. -
Page 24: Default Setup
SIGLENT addition, some advanced functions are also supported such as Self Calibration, Firmware Update, Pass/Fail test. DEFAULT SETUP DEFAULT : Press the button to restore the oscilloscope to its SETUP default settings. The default voltage scale and time base are respectively 1v/div and 500us. -
Page 25: User Interface
SIGLENT User Interface 1. Product logo SIGLENT is the registered trademark of our company. 2. Working state Available working states include Ready, Auto, Trig’d, Scan and Stop. 3. Waveform memory Display the position of the current waveform in the memory of the oscilloscope. - Page 26 SIGLENT 6. Back USB Device “Back USB” supports two types of interface: USBTMC and Printer. 7. Frequency Counter Display the firmware frequency of current waveform. To display it, you should turn on the “Counter” in menu of “UTILITY”. 8. Trigger Setting ...
- Page 27 SIGLENT 13. Coupling Mode The oscilloscope supports three coupling mode: DC, AC and GND, each of them has unique mark displaying on the screen. 14. Current Channel Display the current working channel. All channels can display at the same time.
-
Page 28: Using Security Lock
SIGLENT Using Security Lock If needed, you could use the security lock (please buy it yourself) to lock the instrument in a fixed location. The method: align the clock with the clock hole and plug it into the lock hole vertically, turn the key clockwise to lock the instrument and then pull the key out. -
Page 29: Troubleshooting
SIGLENT. (3) Restart the instrument after completing inspections above. (4) If it still does not work normally, please contact SIGLENT. 2. After the signal is sampled, there is no corresponding waveform displaying: (1) Check if the probe is correctly connected to the signal connecting cord. -
Page 30: Run/Stop
SIGLENT 4. There is waveform displaying but not stable: (1) Check the trigger source: check whether the “Source” in menu of “TRIG” is the actual operating channel. (2) Check if the waveform is false: it is easy for us to regard the false waveform as the real when a high frequency signal is connected to the instrument. -
Page 31: Contact Siglent
U disk are no larger than 4 G. (4) Restart the instrument and then insert the U disk to check. (5) If it is still in abnormal use, please contact with SIGLENT. Contact SIGLENT SIGLENT TECHNOLOGIES CO., LTD...
