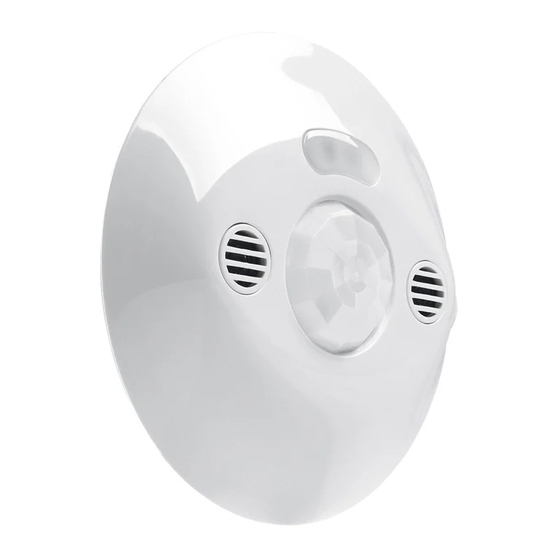

Digital detector - Dual Tech
1. USE
This device allows a light source to be controlled automatically via a
controller through the detection of movement in its surveillance zone.
Movement detector with detection angle of 360°.
Detection type: infra-red (PIR) and ultrasound (US)
Assembly type: ceiling
2. TECHNICAL CHARACTERISTICS
Voltage: 27 V =
No load power consumption: 17 mA
Connection between detector and actuator: RJ 45 lead or cable or
BUS/SCS cable to be fitted with RJ 45 connector
Flush-mounting diameter: 65 mm without flush-mounting box,
68 mm with flush-mounting box
Weight: 150 g
Impact resistance: IK04
Penetration by solid and liquid matter: IP20
Usage temperature: -5ºC to +45ºC
Storage temperature: -20ºC to +70ºC
Cover removed
PIR Detector
Green detection indicator
PIR reception LED
(for configuration tool
or remote control)
Technical data sheet: S000062317EN_6
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel : 0 (+33) 5 55 06 87 87 Fax : 0 (+33) 5 55 06 88 88
www.legrand.com
LEARN button
Green programming
indicator
US Detector
Protection shield
PIR transmission LED
(for configuration tool)
Updated: 23/01/2023
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical characteristics . . . . . . . . . . . . . . . .1
3. Overall Dimensions . . . . . . . . . . . . . . . . . . . . .1
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
5. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
6. Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
7. Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
8. Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . .4
9. Configuration . . . . . . . . . . . . . . . . . . . . . . . . .5
10. Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
11. Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

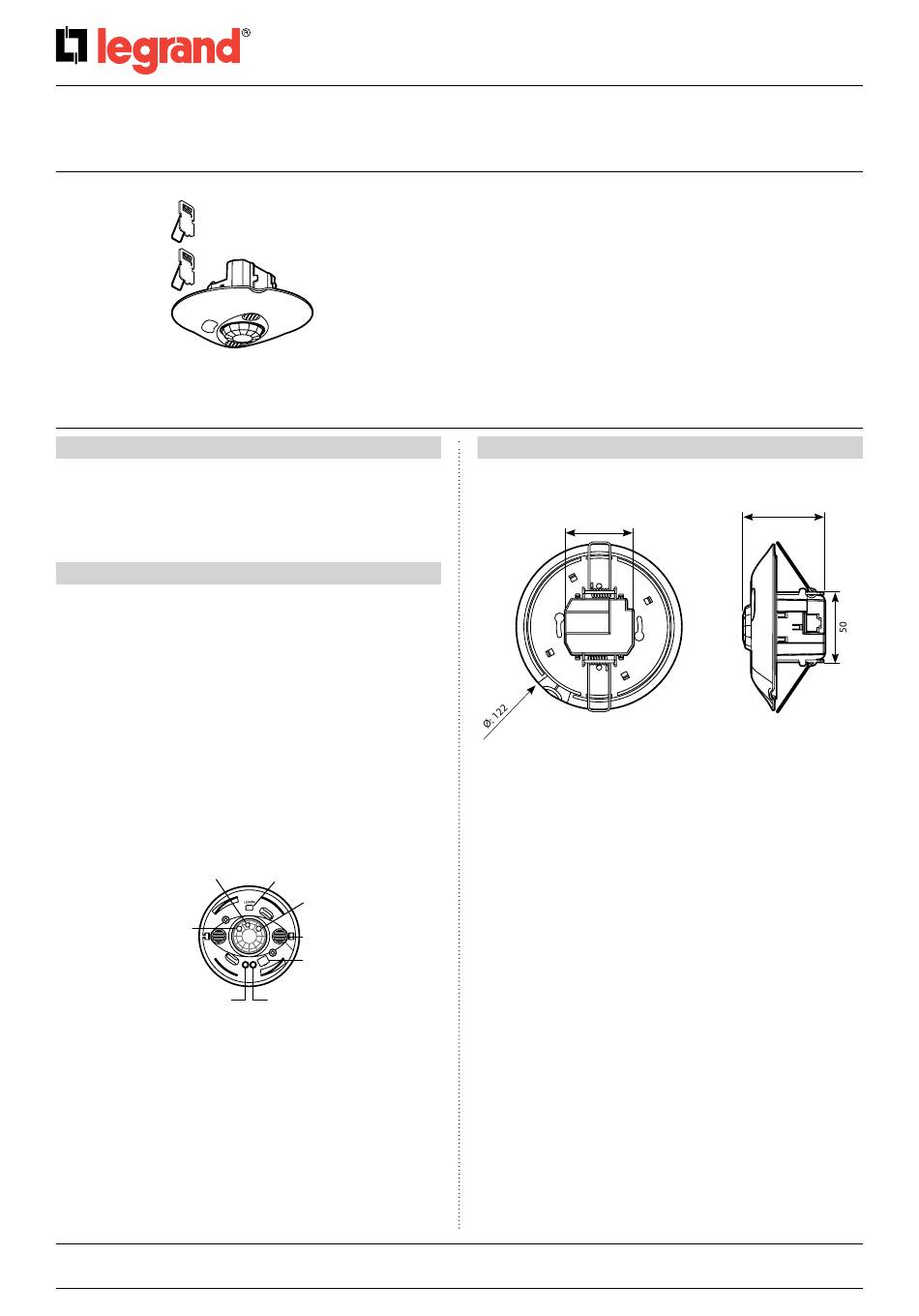

3. OVERALL DIMENSIONS
50
Catalogue Number(s): 0 488 22
Page
58
Created: 18/05/2010
1/5

Advertisement

loading
Need help?

Need help?

Do you have a question about the 048822 and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND 048822

  • Page 1 128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex Tel : 0 (+33) 5 55 06 87 87 Fax : 0 (+33) 5 55 06 88 88 www.legrand.com Digital detector - Dual Tech Catalogue Number(s): 0 488 22 CONTENTS Page 1. Use ........1 2.
  • Page 2: Installation

    Digital detector - Dual Tech Catalogue Number(s): 0 488 22 4. CONNECTION 5. INSTALLATION Type of terminals: RJ 45 RJ 45 0.3 to 30 mm Ø 68 Ø 65   RJ 45 patch and equipment cords   RJ 45 - BUS/SCS connector ...
  • Page 3 Comes on automatically: - At the detection of a presence if there is an insufficient natural level In combination with configuration tool 0 882 40, the Legrand Close Up of light. smartphone app can be used to view and modify all the detector Turns off automatically: parameters with online help.
  • Page 4 Digital detector - Dual Tech Catalogue Number(s): 0 488 22 7.  SETTINGS (continued) 8.  PERFORMANCE (continued) - Modifying the parameters using the configuration tools (continued) • 0 882 30: Configuration tool When the sensor receives an IR command via a configuration tool, - PIR Detection it emits a beep confirming that the modification has been taken into Sensitivity...
  • Page 5 Digital detector - Dual Tech Catalogue Number(s): 0 488 22 9. CONFIGURATION 10. CARE (MYHOME_Suite solfware) Keep the lens clean. Clean the surface with a cloth. Module enabling Yes - No Do not use acetone, tar-removing cleaning agents or trichloroethylene. Stand alone presence sensor Resistant to the following products: - Hexane (EN 60669-1) Scenarios daylight and presence sensor...
