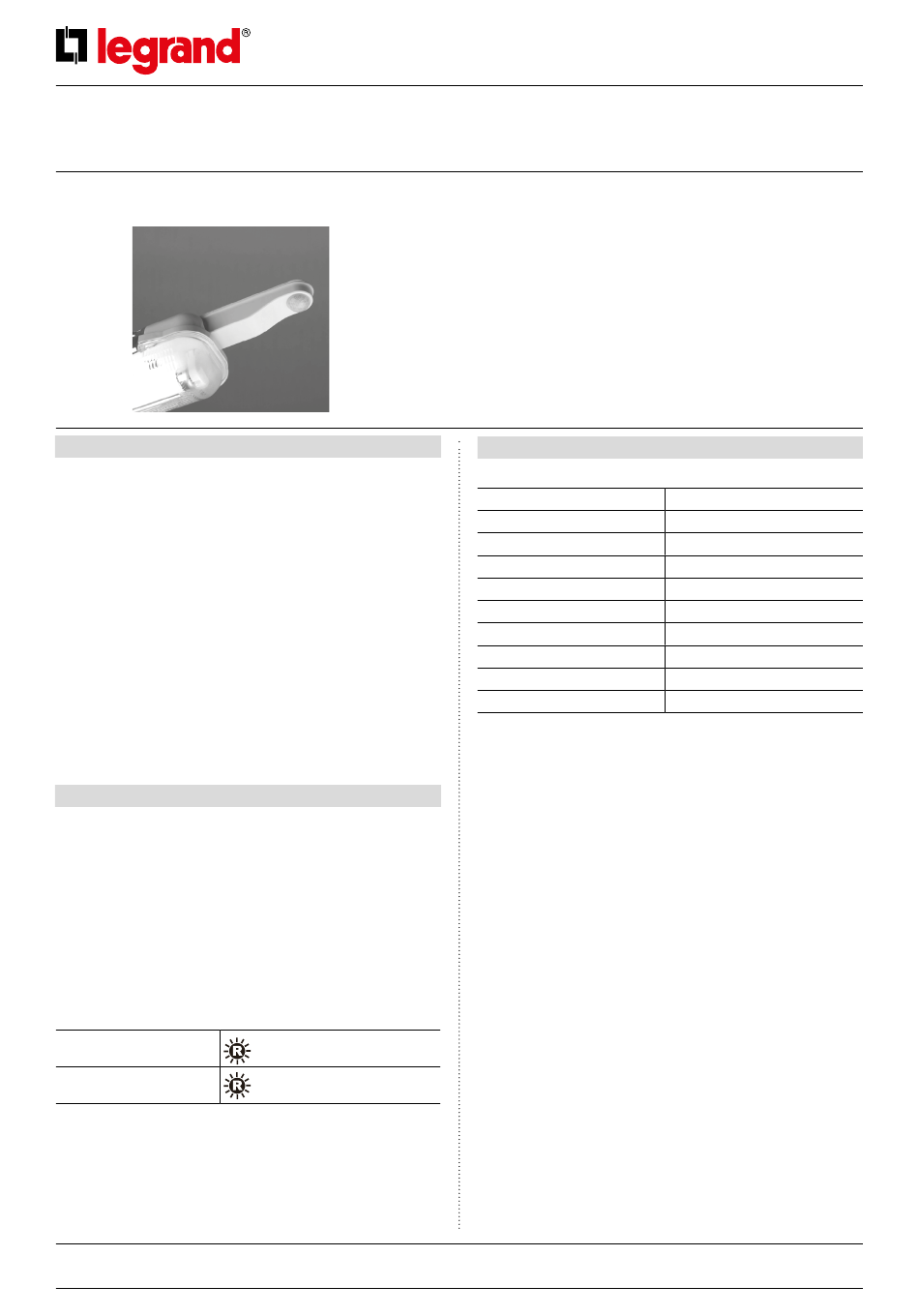

Batten mount PIR detector - ON/OFF
1. USE
This PIR (passive infrared) presence detector provides automatic control
of lighting loads with optional manual control.
It is specially designed to be mounted on a batten-style luminaire.
The unit detects movement using a PIR sensor and turns the load on.
When an area is no longer occupied, the load will switch off after an
adjustable timeout period.
The output channel includes a mains voltage switching relay for ON/OFF
control of lighting.
The units are IP65 rated as standard and are suitable for outdoor use as
well as wet and wash-down areas.
A selection of fixing washers and spacers is supplied to aid fixing to a
variety of luminaires.
All functionality is fully programmable using an infrared configurator.
2. TECHNICAL CHARACTERISTICS
PIR sensor
Detects movement within the unit's detection range, allowing load
control in response to changes in occupancy.
IR receiver
Receives control and programming commands from the infrared
configurator.
Light level sensor
Measures the overall Lux level in the detection area.
LED status
The LED flashes red to indicate the following:
Walk test LED active
Valid setting received
Technical data sheet: S000105445EN_3
CONTENTS
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 Fax: +33(0)5 55 06 88 88
www.legrand.com
When movement is detected
Updated: 17/10/2022
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2. Technical characteristics . . . . . . . . . . . . . . . . . 1
3. Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
5. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
6. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
7. Parameter setting. . . . . . . . . . . . . . . . . . . . . . . . 3
8. Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
9. Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
10. Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
TECHNICAL CHARACTERISTICS (CONTINUED)
Dimensions
Weight
Power supply
Frequency
Power consumption
Operating temperature
Operating humidity
Material
Type
Protection class
Cat. No(s): 0 489 58
Page
See dimensions section
0.1 kg
230 VAC +/-10%
50 Hz
ON 799 mW, OFF 807 mW
-30°C to +35°C
5 to 95% non-condensing
Flame-retardant ABS/PC
Class 2
IP65
Created: 03/12/2018
1/6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND 0 489 58
Summary of Contents for LEGRAND 0 489 58
- Page 1 Tel: +33(0)5 55 06 87 87 Fax: +33(0)5 55 06 88 88 www.legrand.com Batten mount PIR detector - ON/OFF Cat. No(s): 0 489 58 CONTENTS Page 1. Use ........1 2.
-
Page 2: Installation
Batten mount PIR detector - ON/OFF Cat. No(s): 0 489 58 2. TECHNICAL CHARACTERISTICS (CONTINUED) 1 - Halogen lamps 2 - ELV halogen lamps with separate ferromagnetic ballast 3 - Fluorescent tubes with separate ferromagnetic ballast 4 - Compact fluorescent lamps with... -
Page 3: Operation
5° washer can be changed or programmed by an infrared configurator. (optional) (optional) In combination with configuration tool 0 882 40, the Legrand Close Up M20 nut smartphone app can be used to view and modify all the detector IP spacer parameters with online help. - Page 4 Batten mount PIR detector - ON/OFF Cat. No(s): 0 489 58 SETTINGS (CONTINUED) Default Value after Range/ Parameter Description value initialisation option General parameters LED operation When this option is activated, a red LED on the sensor flashes when it detects...
-
Page 5: Troubleshooting
Batten mount PIR detector - ON/OFF Cat. No(s): 0 489 58 SETTINGS (CONTINUED) Default Value after Range/ Parameter Description value initialisation option Manual control modes Shared A single centre-biased retractive switch will be used to control both channels at 2-position the same time. - Page 6 Batten mount PIR detector - ON/OFF Cat. No(s): 0 489 58 9. PERFORMANCE 10. CARE Keep the lens clean, use a cloth to clean the surface. Detection area Do not use acetone, tar-removing cleaning agents or trichloroethylene. CAUTION: Always test before using other special cleaning products.
