Miniature PIR presence detector - DALI dimming
1. USE

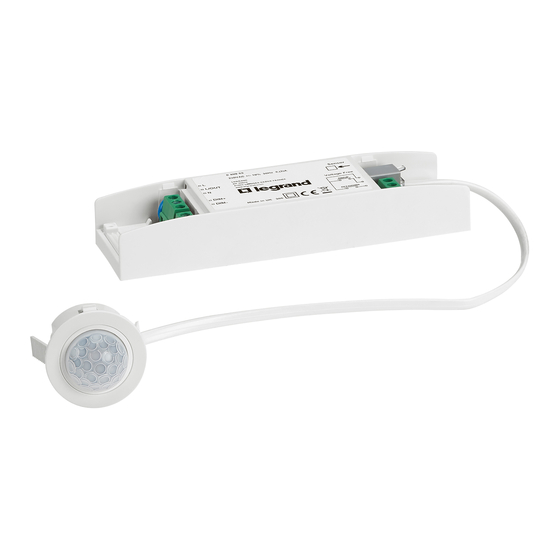

This miniature PIR (passive infrared) presence detector provides
automatic control of lighting loads with optional manual control.
This direct dim variant controls DALI or DSI digital dimming ballasts.
The unit detects movement using a PIR sensor and turns the load on.
When an area is no longer occupied, the load will switch off after an
adjustable timeout period.
These units come complete with accessories allowing flush mounting in
suspended ceilings or surface mounting on ceilings, or side mounting
on a luminaire.
All functionality is fully programmable using an infrared configurator.
2. TECHNICAL CHARACTERISTICS
PIR sensor
Detects movement within the unit's detection range, allowing load
control in response to changes in occupancy.
IR receiver
Receives control and programming commands from the infrared
configurator.
Light level sensor
Measures the overall Lux level in the detection area.
LED status
The LED flashes red to indicate the following:
Walk test LED active
Valid setting received
RJ11 connector
The sensor head has an RJ11 socket for connection to the power supply.
Power supply
This power supply has a 6 A relay. It also has connections for an auxiliary
switch that can be used to turn on the lighting manually.
Technical data sheet: S000104982EN-3
CONTENTS
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 5 55 06 87 87 Fax: +33(0)5 55 06 88 88
www.legrand.com
When movement is detected
Updated: 03/02/2021
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2. Technical characteristics . . . . . . . . . . . . . . . . . 1
3. Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
5. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
6. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
7. Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
8. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 6
9. Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
10. Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
11. Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. TECHNICAL CHARACTERISTICS (continued)
Sensor head
PIR lens
IR receiver
Light level sensor
Status LED
Dimensions
See dimensions section
Weight
Sensor head: 0.02 kg
Power supply: 0.08 kg
Supply
230 VAC +/-10%
Frequency
50 Hz
Number of ballasts
Up to 30 dimming ballasts
Power consumption
ON 923 mW, OFF 308 mW
Terminal capacity
1.5 mm²
Max. power factor
40 μF
correction capacitance
Working temperature
-10°C to +30°C
5 to 95% non-condensing
Material
Sensor head, side mounting bracket:
PA (polyamide) Power supply: PA
(polyamide)
Flush holder: Flame-retardant ABS
Type
Class 2
Protection class
IP 40
Cat. No(s): 0 489 53
Page
Power supply
Created: 25/10/2018
1/6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0 489 53 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LEGRAND 0 489 53
