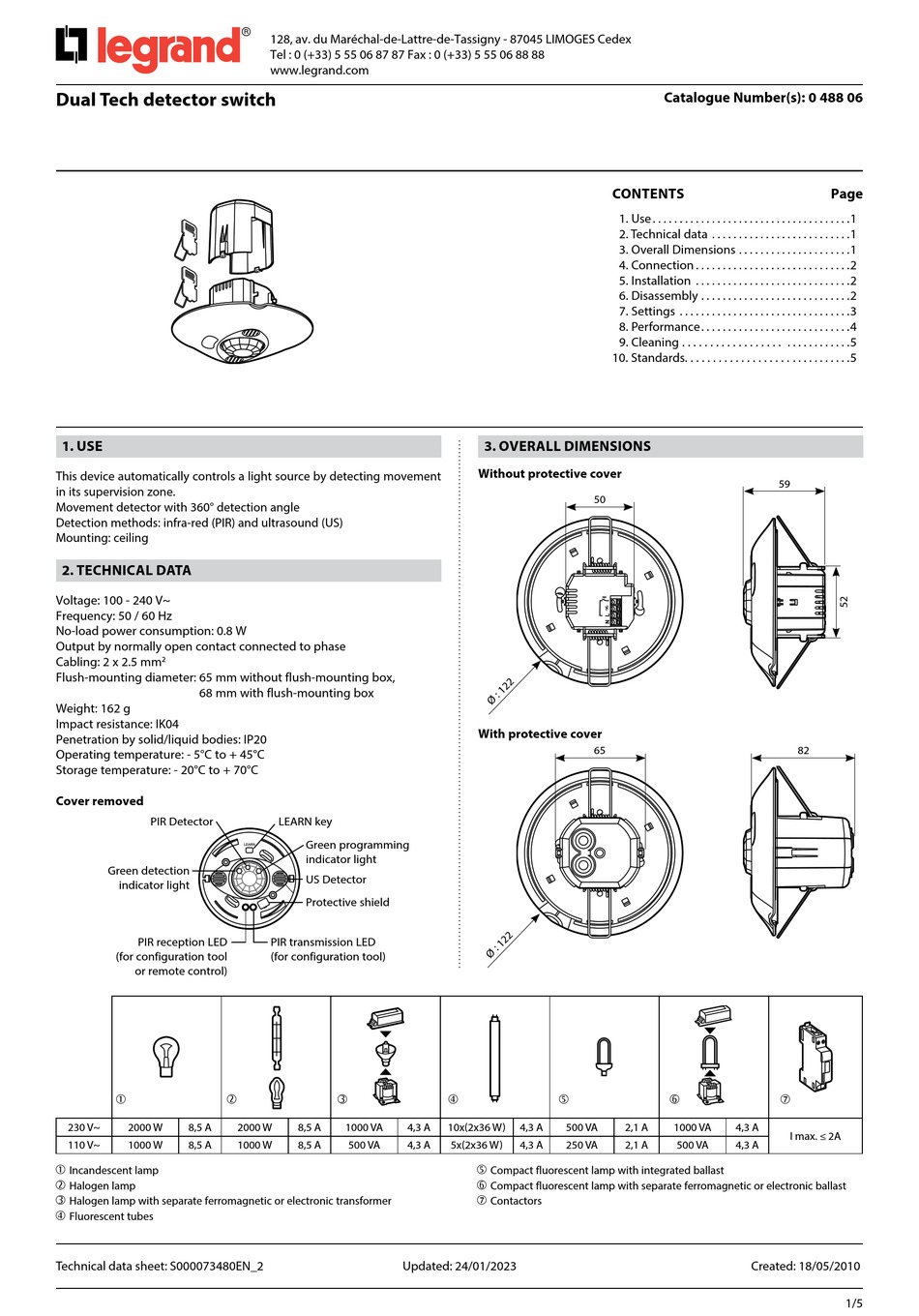

LEGRAND 0 488 06 Quick Start Manual

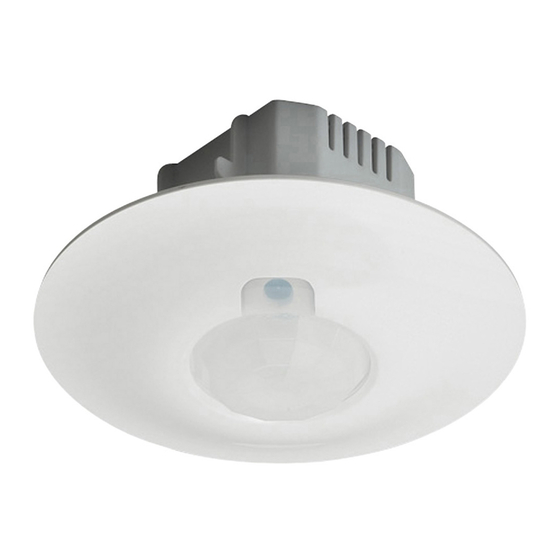

Dual Tech detector switch
1. USE
This device automatically controls a light source by detecting movement
in its supervision zone.
Movement detector with 360° detection angle
Detection methods: infra-red (PIR) and ultrasound (US)
Mounting: ceiling
2. TECHNICAL DATA
Voltage: 100 - 240 V~
Frequency: 50 / 60 Hz
No-load power consumption: 0.8 W
Output by normally open contact connected to phase
Cabling: 2 x 2.5 mm
2
Flush-mounting diameter: 65 mm without flush-mounting box,
68 mm with flush-mounting box
Weight: 162 g
Impact resistance: IK04
Penetration by solid/liquid bodies: IP20
Operating temperature: - 5°C to + 45°C
Storage temperature: - 20°C to + 70°C
Cover removed
PIR Detector
Green detection
indicator light
PIR reception LED
(for configuration tool
or remote control)
 
230 V~ 2000 W 8,5 A
110 V~ 1000 W 8,5 A

Incandescent lamp

Halogen lamp

Halogen lamp with separate ferromagnetic or electronic transformer

Fluorescent tubes
Technical data sheet: S000073480EN_2
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel : 0 (+33) 5 55 06 87 87 Fax : 0 (+33) 5 55 06 88 88
www.legrand.com
LEARN key
Green programming
indicator light
US Detector
Protective shield
PIR transmission LED
(for configuration tool)

2000 W 8,5 A 1000 VA 4,3 A
1000 W 8,5 A 500 VA 4,3 A
Updated: 24/01/2023
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical data . . . . . . . . . . . . . . . . . . . . . . . . . .1
3. Overall Dimensions . . . . . . . . . . . . . . . . . . . . .1
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
5. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
6. Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
7. Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
8. Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . .4
9. Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
10. Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3. OVERALL DIMENSIONS
Without protective cover
50
With protective cover
65
 
10x(2x36 W) 4,3 A 500 VA
5x(2x36 W) 4,3 A 250 VA

Compact fluorescent lamp with integrated ballast

Compact fluorescent lamp with separate ferromagnetic or electronic ballast

Contactors
Catalogue Number(s): 0 488 06
59
82
 
2,1 A 1000 VA 4,3 A
I max. ≤ 2A
2,1 A 500 VA 4,3 A
Created: 18/05/2010
Page
1/5
