LEGRAND 0 489 59 Manual

Pir presence detector for high bay applications - on/off
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

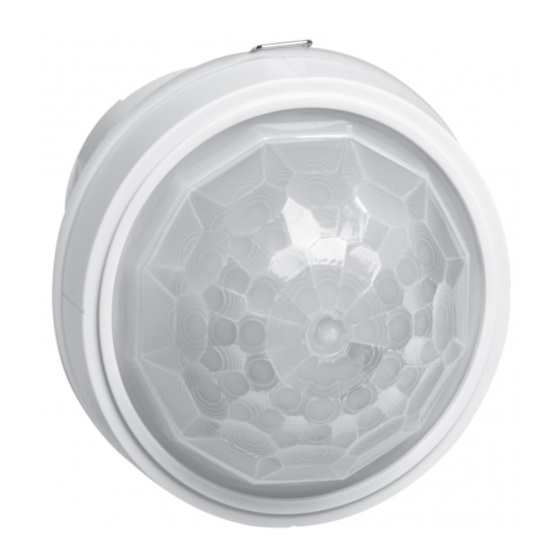

PIR presence detector for high bay applications - ON/OFF
1. USE
This PIR (passive infrared) presence detector provides automatic control
of lighting loads with optional manual control.
It is a high sensitivity PIR detector suitable for high bay applications,
such as warehouses and factories, and where high detection sensitivity
is needed.
The unit detects movement using a PIR sensor and turns the load on.
When an area is no longer occupied, the load will switch off after an
adjustable timeout period.
The output channel includes a mains voltage switching relay for
ON/OFF control of lighting.
The unit can turn lights on when a room is occupied and off when
the room is empty. Optional settings allow lights to be turned off in
response to ambient daylight.
These units come complete with accessories that allow changes to the
detection area and surface mounting.
All functionality is fully programmable using an infrared configurator.
2. TECHNICAL CHARACTERISTICS
PIR sensor
Detects movement within the unit's detection range, allowing load
control in response to changes in occupancy.
IR receiver
Receives control and programming commands from the infrared
configurator.
Light level sensor
Measures the overall Lux level in the detection area.
LED status
The LED flashes red to indicate the following:
Technical data sheet: S000105276EN-2
CONTENTS
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel: +33(0)5 55 06 87 87 Fax: +33(0)5 55 06 88 88
www.legrand.com
Updated: 03/02/2021
CONTENTS
1.
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2.
Technical characteristics . . . . . . . . . . . . . . . . . 1
3.
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
4.
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
5.
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
6.
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
7.
Parameter setting . . . . . . . . . . . . . . . . . . . . . . . 5
8.
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 7
9.
Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
10.
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
11.
Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TECHNICAL CHARACTERISTICS (CONTINUED)
Walk test LED active
Valid setting received
Dimensions
See dimensions section
Weight
0.2 kg (complete unit)
Power supply
230 VAC +/-10%
Frequency
50 Hz
Power consumption
ON 822 mW, OFF 847 mW
Terminal capacity
2.5 mm
Operating temperature
-30°C to +35°C
Operating humidity
5 to 95% non-condensing
Material
Flame-retardant ABS and PC/ABS
Type
Class 2
Protection class
IP40 without gasket and IP65 with
gasket
Cat. No(s): 0 489 59
Page
When movement is detected
2
Created: 27/11/2018
1/8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0 489 59 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LEGRAND 0 489 59

Summary of Contents for LEGRAND 0 489 59

  • Page 1: Table Of Contents

    Tel: +33(0)5 55 06 87 87 Fax: +33(0)5 55 06 88 88 www.legrand.com PIR presence detector for high bay applications - ON/OFF Cat. No(s): 0 489 59 CONTENTS Page Use ........1 Technical characteristics .

  • Page 2: Technical Characteristics

    PIR presence detector for high bay applications - ON/OFF Cat. No(s): 0 489 59 TECHNICAL CHARACTERISTICS (CONTINUED) 1 - Halogen lamps 2 - ELV halogen lamps with separate ferromagnetic ballast 3 - Fluorescent tubes with separate ferromagnetic ballast 4 - Compact fluorescent lamps with...

  • Page 3: Installation

    PIR presence detector for high bay applications - ON/OFF Cat. No(s): 0 489 59 5. INSTALLATION INSTALLATION (CONTINUED) The product is designed to be mounted on the ceiling (surface or flush Surface mounting mounting), using the accessory provided. Use the supplied gasket to ensure IP65 rating (not compatible with ø...
  • Page 4 PIR presence detector for high bay applications - ON/OFF Cat. No(s): 0 489 59 INSTALLATION (CONTINUED) INSTALLATION (CONTINUED) Alignment marks Masking shields trimmed for aisle-shaped detection The sensor head has 4 alignment marks. These correspond to the 4 passive infrared sensors under the lens.

  • Page 5: Operation

    Manual control: short press to turn on, short press to turn off, press and hold for dimming cycle. In combination with configuration tool 0 882 40, the Legrand Close In either case, sensitivity to movement of the PIR sensor can be adjusted Up smartphone app can be used to view and modify all the detector using the Sensitivity parameter.
  • Page 6 PIR presence detector for high bay applications - ON/OFF Cat. No(s): 0 489 59 7. SETTINGS (CONTINUED) Default Value after Range/ Parameter Description value initialisation option General parameters LED operation When this option is activated, a red LED on the sensor flashes when it detects...

  • Page 7: Troubleshooting

    PIR presence detector for high bay applications - ON/OFF Cat. No(s): 0 489 59 7. SETTINGS (CONTINUED) Default Value after Parameter Range/option Description value initialisation Manual control modes Shared A single centre-biased retractive switch will be used to control both channels at 2-position the same time.

  • Page 8: Performance

    PIR presence detector for high bay applications - ON/OFF Cat. No(s): 0 489 59 9. PERFORMANCE 10. CARE Keep the lens clean, use a cloth to clean the surface. Detection area Do not use acetone, tar-removing cleaning agents or trichloroethylene.
