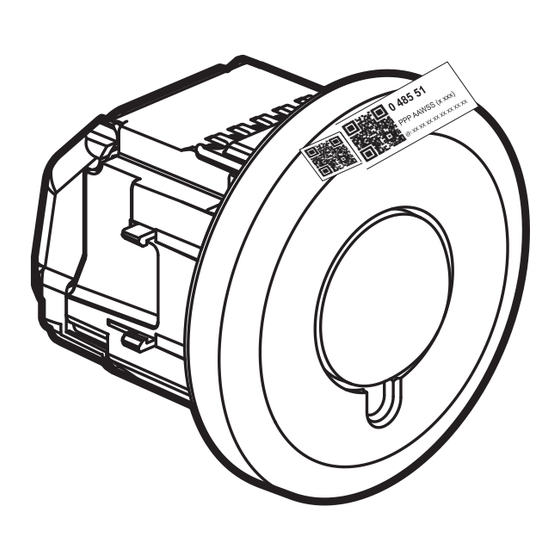

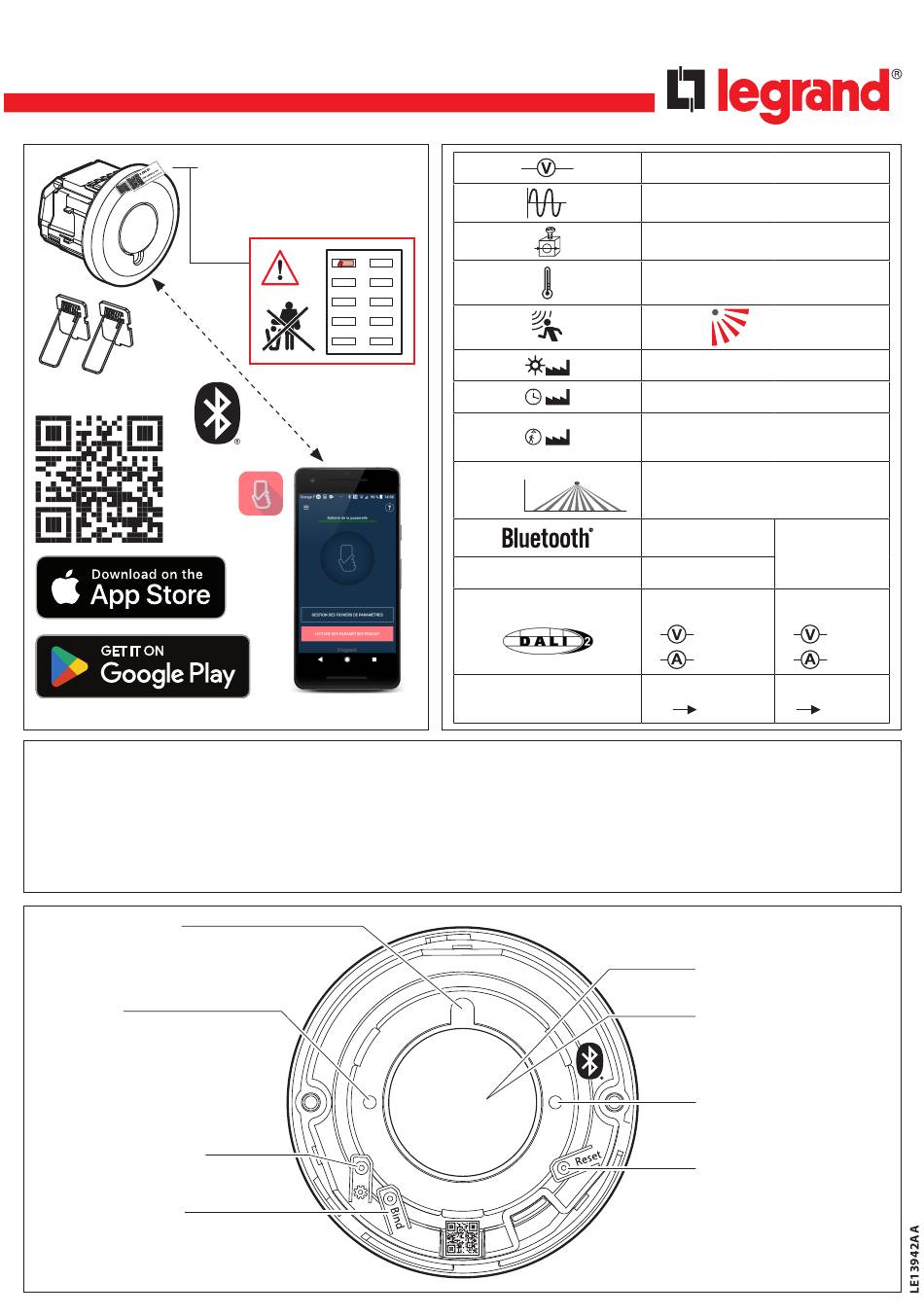

Light UP Détecteur de présence DALI
Light UP Occupancy DALI Detector
0 485 52
Legrand Close Up
F (Fréquence) : 2,4 à 2,483 GHz
P (Puissance) : <100 mW
F (Frequency) : 2.4 to 2.483 GHz
P (Power) : <100 mW
LED de mouvement
Motion LED
LED radio
Radio LED
Bouton radio network
Radio network button
Bouton radio bind
Radio bind button
Étiquette à détacher et à coller
sur le plan du bâtiment
Label to be detached and stuck
on the building plan
Le soussigné, LEGRAND, déclare que l'équipement radioélectrique du type réf. 0 485 52
est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de
conformité est disponible à l'adresse suivante : www.legrandoc.com
The undersigned, LEGRAND, declares that radio equipment of the type cat. no 0 485 52
complies with Directive 2014/53/EU. The full text of the EU declaration of conformity
can be found at: www.legrandoc.com
Hauteur/Height
2.5 m -
1.7 m min -
Radio
DALI
Consommation en veille :
Standby consumption:
110 - 230 V~
50 / 60 Hz
2 x 1.5 mm² ou/or 1 x 2.5 mm²
-10°C / +30°C
PIR
300 lux
15 mn
Mode Passage
Walktrough mode
Ø 12 m (2.5 m)
5.0 compatible 4.2
Portée : 10 m
Reach: 10 m
2.4 - 2.483 GHz
Garantie/
Maximum
Guaranteed
15 V
100 mA
Charge/Load OFF
Charge/Load ON
1.54 W
Capteur de luminosité
Daylight sensor
Capteur infra-rouge
PIR sensor
LED Bluetooth
Bluetooth LED
Retour configuration usine
Reset button
15 V
130 mA
1.54 W
