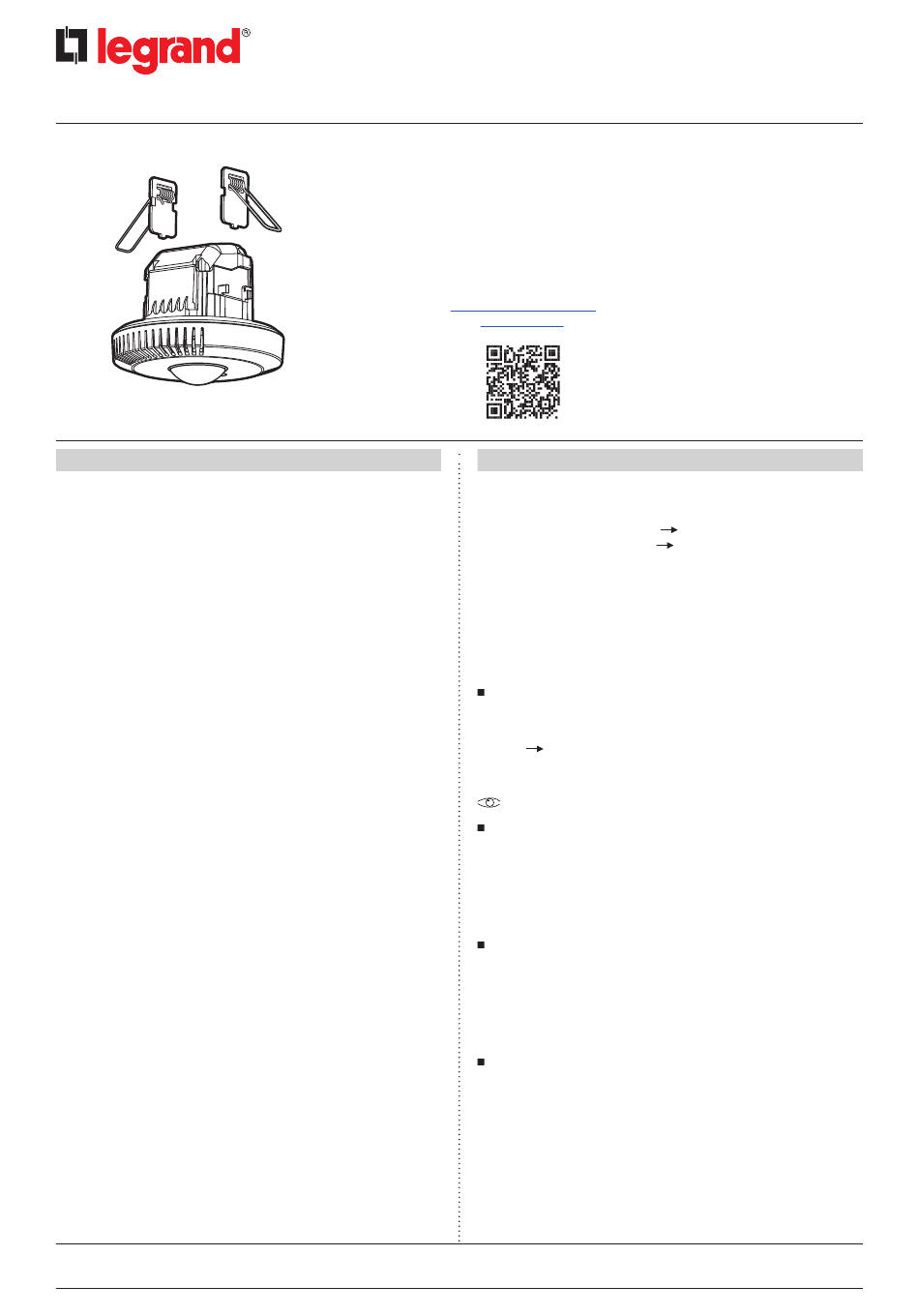

LEGRAND LIGHT-UP 0 485 71 Manual

LIGHT-UP multisensor DALI detector
1. USE
This product is a presence detector, which is used to control light
sources automatically; it is equipped with environmental sensors.
It is mounted on the ceiling and has a 360° detection angle.
It has:
• The option of being paired with a wireless batteryless switch and/or
controlling a connected power outlet.
• 1 auxiliary input for priority lighting using the push-button connected
to the line.
• 1 motion sensor (PIR technology) with lens for detecting occupancy.
• 1 daylight sensor which allows it to regulate the light level
automatically.
• 1 temperature sensor which measures the room temperature in
degrees Celsius.
• 1 relative humidity sensor which measures the relative humidity in
the room as a percentage.
• 1 sound level sensor which measures the ambient noise level in dBspl.
• 1 VOC sensor which estimates the indoor air quality in the room. It
measures the total volatile compounds in ppb, provides an air quality
index such as the UBA index and estimates the CO2 level in ppm called
"eCO2".
• 1 DALI output for supplying the bus and controlling diffuse lighting.
• 1 relay output dedicated to powering Dali ECGs.
• Bluetooth 5.0 (compatible from 4.2 upwards):
• For commissioning the product in a connectable system – using
the Legrand CLOSE UP mobile app.
• Radio (2.4 - 2.483 GHz):
• Creation of a standalone system, in order to pair a power outlet
and/or radio-controlled wireless batteryless switch with it.
Technical data sheet: S00120131EN-3
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex - France
Tel: +33(0)5 55 06 87 87 - Fax: +33(0)5 55 06 88 88
www.legrandgroup.com
Updated: 04/11/2024
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical characteristics . . . . . . . . . . . . . . . . .1
3. Declaration of conformity . . . . . . . . . . . . . . . .2
4. Loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
5 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
6. Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
7. Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
8. Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
9. Detection zone . . . . . . . . . . . . . . . . . . . . . . . . . .5
10. PIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Access to the full LIGHT UP
11. Measuring the light level . . . . . . . . . . . . . . .5
documentation
12. Reducing the detection zone . . . . . . . . . . .6
13. Settings with CLOSE UP . . . . . . . . . . . . . . . . .6
14. Description of buttons and LEDs . . . . . . . .8
15. Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
16. Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
17. Surface mounting . . . . . . . . . . . . . . . . . . . . . .9
18. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 10
2. TECHNICAL CHARACTERISTICS
• Voltage: 110 - 230 V~
• Frequency: 50/60 Hz
• Terminal capacity: 2 x 1.5 mm
• Standby consumption: OFF relay
ON relay
• Connection: cord or RJ 45 cable
• Flush-mounting diameter: 68 mm
• Impact resistance: IK04
• Weight: unpackaged 246 g
packaged 287 g
• Penetration by solid and liquid matter: IP20
• Usage temperature: -10°C to +30°C
• Storage temperature: -20°C to +70°C
2.1 Daylight sensor
Measures natural and artificial light in order to control lighting
according to the desired daylight setpoint.
Range: 5 1275 lux
It is possible to disable daylight measurement with this setpoint value:
1275 lux.
Has the light regulation function.
2.2 Temperature sensor
• Measures the ambient temperature in ° Celsius
• Measurement range: 0° to 50°C
• Resolution: 0.1°C
• Drift: < 0.02°C/year
• Availability of data once commissioned: 1 hour
• Temperature offset: -20°C to +20°C (default: 0)
2.3 Humidity sensor
• Measures the relative humidity in the zone as a percentage
• Measurement range: 20% to 80%
• Drift: < 0.25%/year
• Accuracy: 5%
• Availability of data once commissioned: 1 hour
• Humidity offset: -20% to + 20% (default: 0)
2.4 Acoustic sensor
• Measures the ambient noise in the zone in dB SPL
• Re-activates in all directions
• Measurement range: 38 - 120 dB SPL
• Resolution: 1 dBspl
• Sound level offset: -20 to +20 dB SPL (default: 0)
Cat. No(s): 0 485 71
or 1 x 2.5 mm
2 2
1.15 W
1.9 W
Created: 13/09/2023
PAGE
1/10
