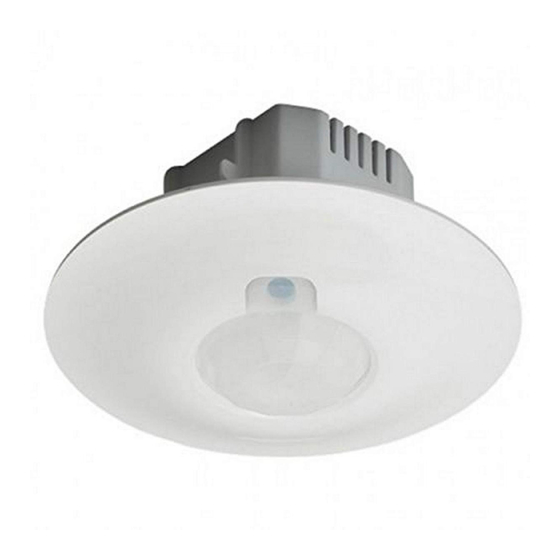

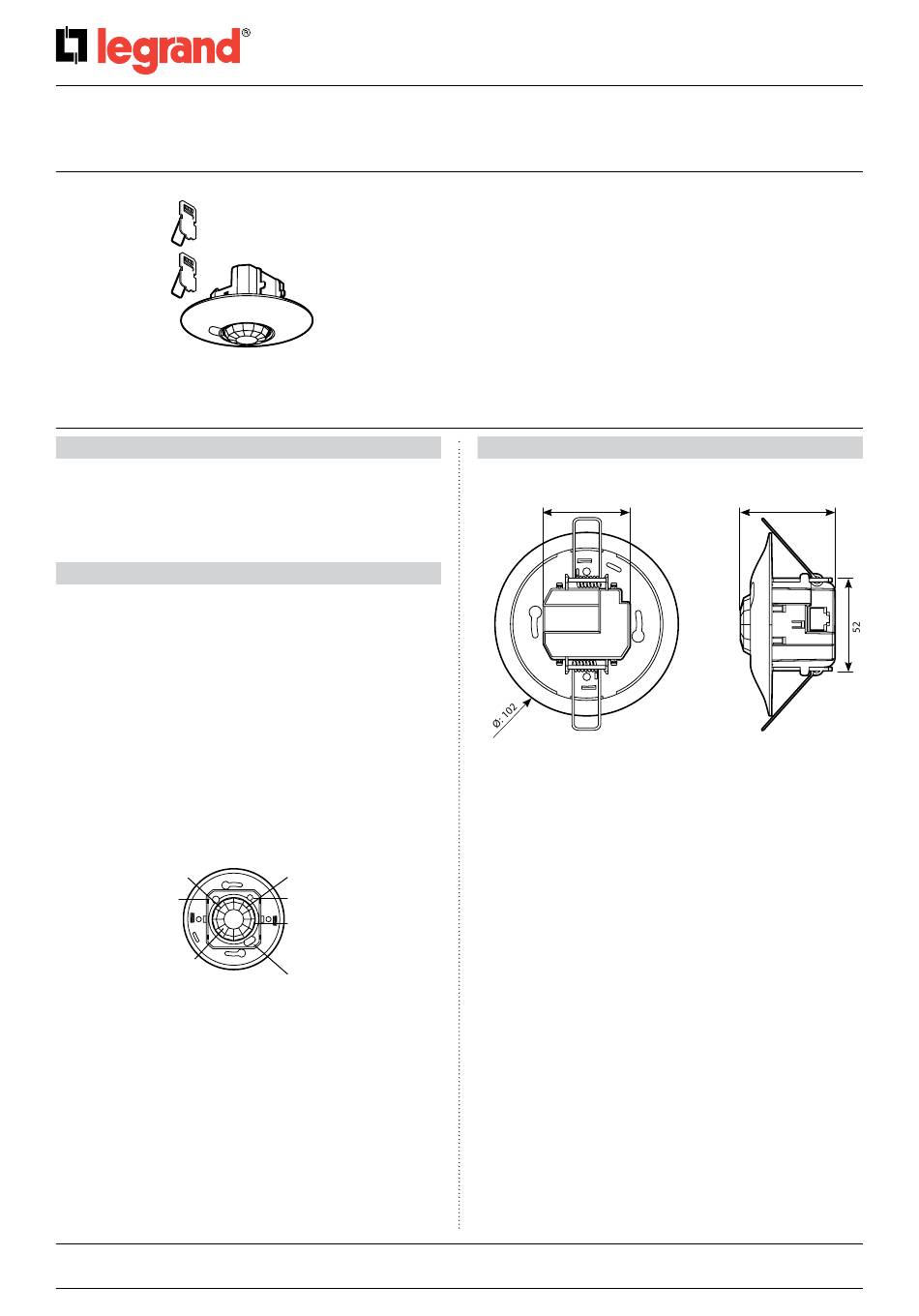

Digital detector - PIR
1. USE
This device allows a light source to be controlled automatically via a
controller through the detection of movement in its surveillance zone.
Movement detector with detection angle of 360°.
Detection type: infra-red (PIR)
Assembly type: ceiling
2. TECHNICAL FEATURES
Voltage: 27 V =
No load power consumption: 12 mA
Connection between detector and actuator: RJ 45 lead or cable or
BUS/SCS cable to be fitted with RJ 45 connector
Fitting diameter: 65 mm without fitting unit,
68 mm with fitting unit
Weight: 100 g
Impact resistance: IK04
Penetration by solid and liquid matter: IP41
Usage temperature: -5ºC to +45ºC
Storage temperature: -20ºC to +70ºC
Cover removed
Green detection indicator
PIR transmission LED
(for configuration tool)
PIR Detector
Technical data sheet: S000101125EN_3
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel : 0 (+33) 5 55 06 87 87 Fax : 0 (+33) 5 55 06 88 88
www.legrand.com
Green programming indicator
LEARN button
PIR receiver LED
(for configuration tool
or remote control)
Protection shield
Updated: 23/01/2023
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical Features . . . . . . . . . . . . . . . . . . . . . .1
3. Overall Dimensions . . . . . . . . . . . . . . . . . . . . .1
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
5. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
6. Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
7. Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
8. Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . .4
9. Configuration . . . . . . . . . . . . . . . . . . . . . . . . .4
10. Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
11. Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3. OVERALL DIMENSIONS
50
Catalogue Number(s): 0 488 20
Page
52
Created: 07/05/2010
1/5
Advertisement
Related Manuals for LEGRAND 048820
Summary of Contents for LEGRAND 048820
- Page 1 128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex Tel : 0 (+33) 5 55 06 87 87 Fax : 0 (+33) 5 55 06 88 88 www.legrand.com Digital detector - PIR Catalogue Number(s): 0 488 20 CONTENTS Page 1. Use ........1 2.
-
Page 2: Installation
Digital detector - PIR Catalogue Number(s): 0 488 20 4. CONNECTION 5. INSTALLATION Type of terminals: RJ 45 RJ 45 0.3 to 20 mm Ø 68 Ø 65 RJ 45 patch and equipment cords RJ 45 - BUS/SCS connector ... - Page 3 Turns off automatically: {19}- If no presence is detected and at the end In combination with configuration tool 0 882 40, the Legrand Close Up of the time delay set. smartphone app can be used to view and modify all the detector - Or if there is a sufficient natural level of light (activated setting).
- Page 4 Digital detector - PIR Catalogue Number(s): 0 488 20 7. SETTINGS (continued) 9. CONFIGURATION (MYHOME_Suite solfware) - Modifying the parameters using the configuration tools (continued) Module enabling Yes - No • 0 882 30: Configuration tool Stand alone presence sensor When the sensor receives an IR command via a configuration tool, Scenarios daylight and presence sensor it emits a beep confirming that the modification has been taken into...
- Page 5 Digital detector - PIR Catalogue Number(s): 0 488 20 10. CARE Keep the lens clean. Clean the surface with a cloth. Do not use acetone, tar-removing cleaning agents or trichloroethylene. Resistant to the following products: - Hexane (EN 60669-1) - Methylated spirit - Soapy water - Diluted ammonia - Bleach diluted to 10%...
