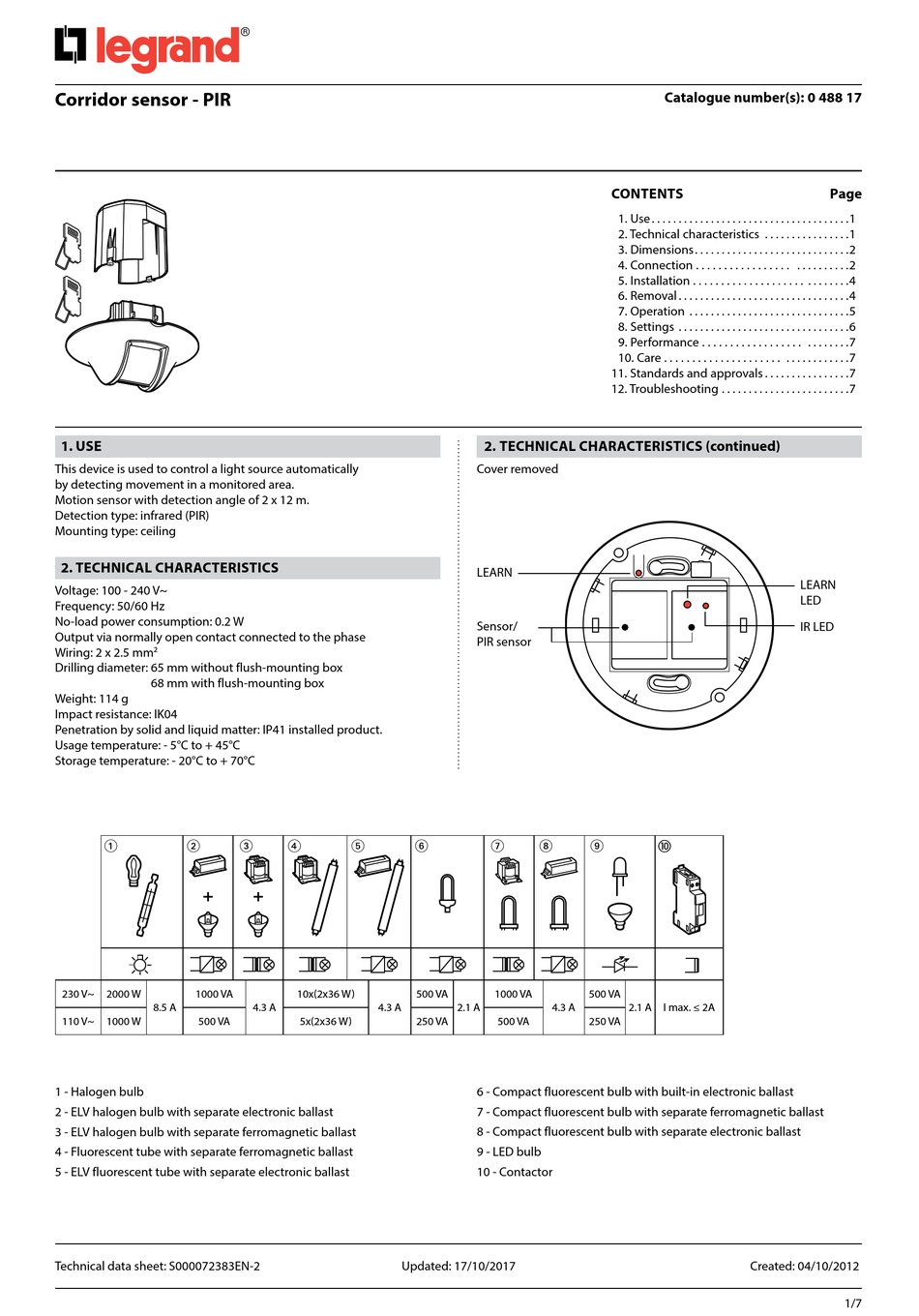

LEGRAND 0 488 17 Technical Data Sheet

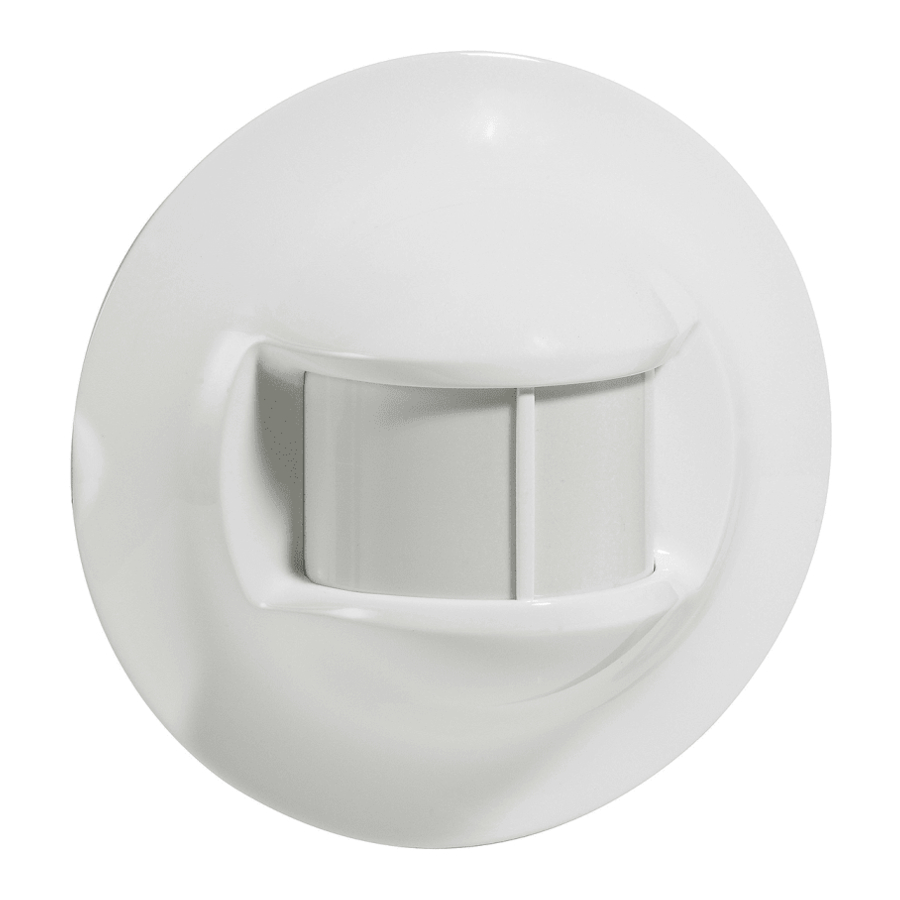

Corridor sensor - PIR
1. USE
This device is used to control a light source automatically
by detecting movement in a monitored area.
Motion sensor with detection angle of 2 x 12 m.
Detection type: infrared (PIR)
Mounting type: ceiling
2. TECHNICAL CHARACTERISTICS
Voltage: 100 - 240 V~
Frequency: 50/60 Hz
No-load power consumption: 0.2 W
Output via normally open contact connected to the phase
Wiring: 2 x 2.5 mm
2
Drilling diameter: 65 mm without flush-mounting box
68 mm with flush-mounting box
Weight: 114 g
Impact resistance: IK04
Penetration by solid and liquid matter: IP41 installed product.
Usage temperature: - 5°C to + 45°C
Storage temperature: - 20°C to + 70°C
1 2
230 V~ 2000 W 1000 VA
8.5 A
110 V~ 1000 W 500 VA
1 - Halogen bulb
2 - ELV halogen bulb with separate electronic ballast
3 - ELV halogen bulb with separate ferromagnetic ballast
4 - Fluorescent tube with separate ferromagnetic ballast
5 - ELV fluorescent tube with separate electronic ballast
Technical data sheet: S000072383EN-2
3 4 5
10x(2x36 W)
4.3 A 4.3 A
5x(2x36 W)
Updated: 17/10/2017
2. TECHNICAL CHARACTERISTICS (continued)
Cover removed
LEARN
Sensor/
PIR sensor
6 7 8
500 VA 1000 VA 500 VA
2.1 A 4.3 A
250 VA 500 VA 250 VA
6 - Compact fluorescent bulb with built-in electronic ballast
7 - Compact fluorescent bulb with separate ferromagnetic ballast
8 - Compact fluorescent bulb with separate electronic ballast
9 - LED bulb
10 - Contactor
Catalogue number(s): 0 488 17
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical characteristics . . . . . . . . . . . . . . . .1
3. Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . .2
5. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
6. Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
7. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
8. Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
9. Performance . . . . . . . . . . . . . . . . . . . . . . . . . .7
10. Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
11. Standards and approvals . . . . . . . . . . . . . . . .7
12. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . .7
9

2.1 A I max. ≤ 2A
Created: 04/10/2012
Page
LEARN
LED
IR LED
1/7
