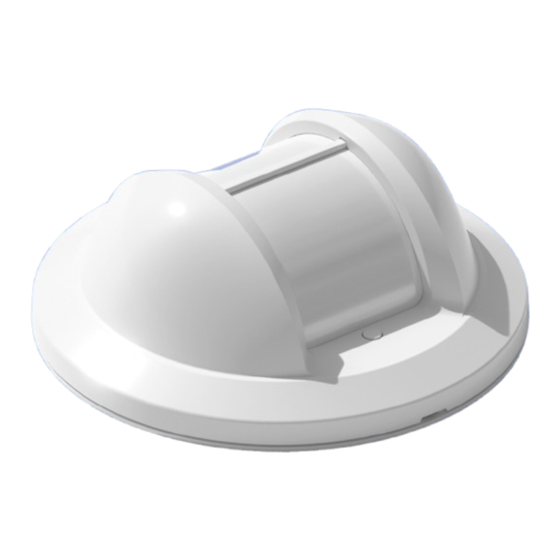

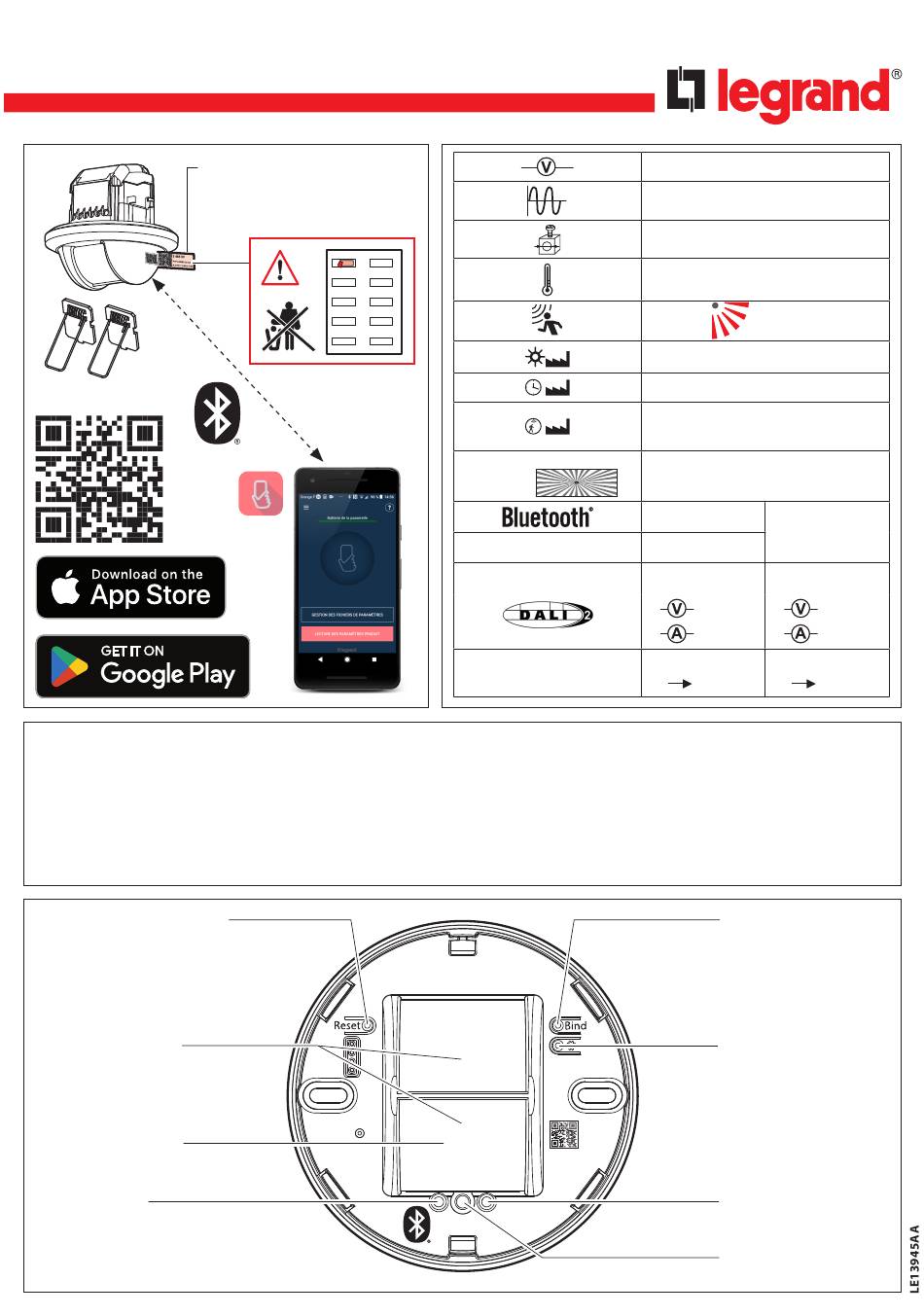

Light UP Détecteur de couloir DALI
Light UP Corridor detector DALI
0 485 54
Close Up Legrand
F (Fréquence) : 2,4 à 2,483 GHz
P (Puissance) : <100 mW
F (Frequency) : 2.4 to 2.483 GHz
P (Power) : <100 mW
Retour configuration usine
Reset button
Capteur infra-rouge
PIR sensor
LED de mouvement
Motion LED
LED Bluetooth
Bluetooth LED
Étiquette à détacher et à coller
sur le plan du bâtiment
Label to be detached and stuck
on the building plan
Le soussigné, LEGRAND, déclare que l'équipement radioélectrique du type réf. 0 485 54
est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de
conformité est disponible à l'adresse suivante : www.legrandoc.com
The undersigned, LEGRAND, declares that radio equipment of the type cat. no 0 485 54
complies with Directive 2014/53/EU. The full text of the EU declaration of conformity
can be found at: www.legrandoc.com
Hauteur/Height
1.7 m min
Radio
DALI
Consommation en veille :
Standby consumption:
110 - 230 V~
50 / 60 Hz
2 x 1.5 mm² ou/or 1 x 2.5 mm²
-10°C / +30°C
PIR
100 lux
10 mn
Mode Passage
Walktrough mode
3 m x 24 m (2.5 m)
5.0 compatible 4.2
Portée : 10 m
Reach: 10 m
2.4 - 2.483 GHz
Garantie/
Maximum
Guaranteed
15 V
100 mA
Charge/Load OFF
Charge/Load ON
1.72 W
Bouton Radio bind
Radio bind button
Bouton Radio réseau
Radio network button
LED Radio
Radio LED
Capteur de luminosité
Daylight sensor
15 V
130 mA
1.72 W
