Curt Manufacturing 18009 User Manual

Cautions:
1) Read and follow instructions carefully. Save owner's manual for future reference or parts information.
2) Be certain any future user of this carrier is aware of correct attachment and use.
3) Vehicle should be in good condition in the area at which the hitch is located. Refer to table on cover page for load capacities and limitations.
4) Make sure bike tires are not directly behind exhaust pipe.
5) Do not exceed maximum load capacity of the carrier.
6) This hitch mounted carrier is not recommended for off road use.
7) Do not mount on any type of trailer.
8) Do not take carrier through car wash.
9) Replace straps at the first sign of wear.
10) It's the consumers responsibility to ensure that the use of this rack complies with local regulations, regarding issues such as distance
behind vehicle & partial covering of license plate and tail lights.
Warning and Disclaimer:
This carrier has been designed to carry bicycles on specific vehicles. Before installation, user must read and follow enclosed instructions.
User must attach carrier correctly to the vehicle, check its attachment before each use, and inspect carrier parts for wear. Carrier's attach-
ment to the vehicle is critical and beyond the control of the manufacturer. Manufacturer and seller expressly disclaim any and all liability for
personal injury, property damage or loss, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use, inade-
quate maintenance, or neglect of this carrier.
Warranty:
We warrant this product to the first consumer to be free from defect in material and workmanship for a period of one year from date of pur-
chase. (Please retain your sales slip for your records.) Any product or part thereof found to be defective within that period will be replaced
without charge provided that: (1) the product was not misused; (2) no alterations or modifications were made; (3) its failure resulted from a
defect in material or workmanship and not from normal wear expected in the use of the product; (4) the product or part is delivered, freight
prepaid, to Graber Products. Please call us at 800-783-7257 to get return autherization prior to return. Manufacturers only obligation shall be
to replace such products or parts proved to be defective.
16756A 05/07
Please READ and FOLLOW all instructions carefully.
Model #18009
Patents:
DON'T GO BACK TO THE STORE! If you have any questions about your new bike rack, please contact us at 1-800-738-7213. We can help you more quickly if you have your Model Number and assembly
Made in USA
instructions ready when calling.

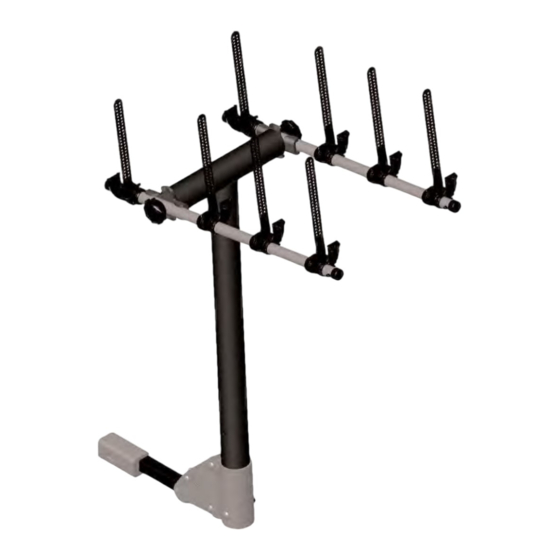

Hitch Rack 4
Item #
1 End Cap
2 Security Screw
3 Hold Down
4 Knob 5/16 - 18 x 2.25"
5 Washer, SAE 5/16" Stl, Zc, Blk
6 Base Tube
7 4-Bike Arm
8 Tilt Bracket 1-1/4"
9 Receiver Tube 1-1/4"
10 Clevis Pin, 3/8 x 3/25"
11 Cotter Pin
12 Carriage Bolt 3/8 - 16 x 2.5"
13 Carriage Bolt 3/8 - 16 x 3.5"
14 Washer, Flat 3/8"
15 Nut, Nylock, 3/8"
16 Adapter Block
17 Hitch Tite 1-1/4"
Tongue Weight Limitations
Hitch Type Tongue Weight Maximum Load
1-1/4" 200 lbs.
1-1/4"
300 lbs.
2" 300 lbs.
USER MANUAL
Parts List
Description Part #
6210-30
910-69
10036
13103
1008-81B
11857
11885
11872
11875
12014
11965
11216
12045
8001-82
10797
13849
10541
3 bikes/105 lbs.
4 bikes/140 lbs.
4 bikes/140 lbs.
