Installation INSTRUCTIONS
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
TOWABLE

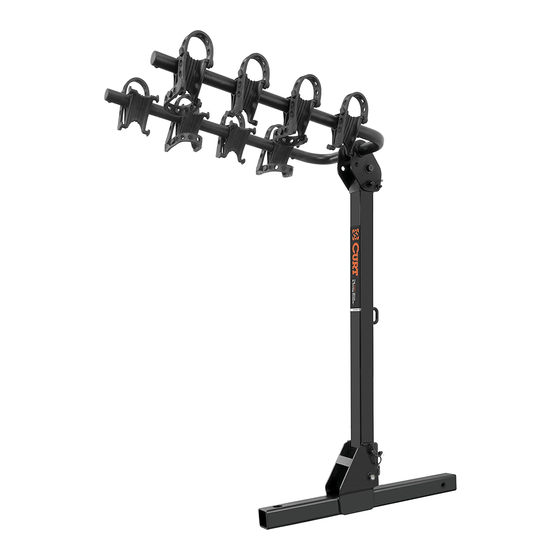

HITCH-MOUNTED BIKE RACK
PARTS LIST
Item#
Qty
Description
1
1
Arm post
2
1
Shank, 2"
3
12
Arm straps, rubber
4
1
Bolt kit, hex head (bolt, two washers, nut)
5
1
Anti-rattle bolt and clip
6
1
Allen wrench, 8mm
7
1
Wrench, 19mm
WARNINGS
Check straps for wear, and replace if worn.
This product is not intended for off-road use,
tandems or recumbents.
Do not install on a trailer or other towed vehicle.
Check tightness of all bolts periodically.
