RTKA-BDGSTKEV2Z
Industrial Analog and Power
All information contained in these materials, including products and product specifications,
represents information on the product at the time of publication and is subject to change by
Renesas Electronics Corp. without notice. Please review the latest information published by
Renesas Electronics Corp. through various means, including the Renesas Electronics Corp.
website (http://www.renesas.com).
Renesas Electronics Corporation
www.renesas.com
User's Manual: Evaluation Board
Rev.2.00
Jul.9.19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTKA-BDGSTKEV2Z and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renesas RTKA-BDGSTKEV2Z

Summary of Contents for Renesas RTKA-BDGSTKEV2Z

  • Page 1 All information contained in these materials, including products and product specifications, represents information on the product at the time of publication and is subject to change by Renesas Electronics Corp. without notice. Please review the latest information published by Renesas Electronics Corp. through various means, including the Renesas Electronics Corp.

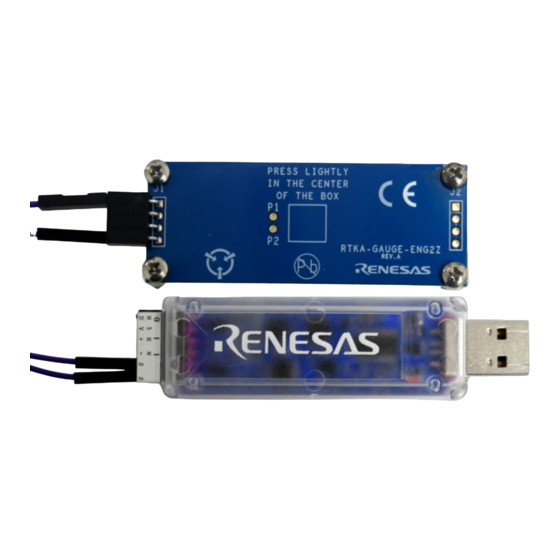

  • Page 2 RTKA-BDGSTKEV2Z Evaluation Board The DAQ on a Stick, Renesas Strain Gauge is one of a series of reference designs highlighting Renesas precision products. This reference design is a self contained demonstration showing a complete signal chain solution using Renesas precision parts and a Renesas microcontroller. The complete reference design is conveniently housed in a USB stick form factor.

  • Page 3: Getting Started

    4. Launch the application by checking the Launch R12UZ0045_DAQ_V250 box, then click Finish. Running the Evaluation Software 1. After installing the software, plug the RTKA-BDGSTKEV2Z board into a USB port on the computer and click the Renesas DAQ shortcut (created in “Loading the...
  • Page 4 RTKA-BDGSTKEV2Z 1. Getting Started 1.4.1 Connecting the Foil Strain Gauge The foil gauge is supplied with the evaluation board. Complete the following steps to connect the foil gauge. 1. Plug the wires into the “S” ports (either top row or the bottom row; the columns are connected) on the DAQ on a Stick.
  • Page 5 RTKA-BDGSTKEV2Z 1. Getting Started Figure 6 shows the Measurement Display screen. From this screen, you can stop and start data collection, adjust the minimum and maximum X and Y axis, and go back to the setup screen by clicking Show Main. The Calibrate button zeroes out the voltage reading when the board is not under strain.

  • Page 6: Design Considerations

    RTKA-BDGSTKEV2Z 2. Design Considerations Design Considerations ISL28134 The ISL28134 is an ideal choice for the input amplifier for a strain gauge design. The ISL28134 uses auto-correction circuitry to provide ultra low offset voltage (2.5μV) and low offset temperature drift (15nV/°C). The very low 1/f noise corner (<0.1Hz) and low input noise voltage (8nV/√Hz at 100Hz) of the amplifier makes the...
  • Page 7 Bill of Materials Package Part Number Ref Des Value Tol. Voltage Type JEDEC Type Description GRM21BR71C475KA73L 4.7µF CAP_0805 Murata Ceramic Cap Generic C7, C12, C13, 0.01µF 10% CAP_0402 Various Multilayer Cap Generic C5, C8, C9, 0.1µF CAP_0402 Various Multilayer Cap C11, C14, C25, Generic C21, C22...
  • Page 8 Thick Film Chip Resistor Generic R18, R21, R24 0.1% 1/10W RES_0805 Various Thick Film Chip Resistor ISL26102AVZ TSSOP TSSOP24_173_256 Renesas 24 Pin 173 Mil TSSOP Package ISL21010CFH341Z SOT23-3 Renesas 3 Pin SOT23-3 Package ISL28134FHZ U3, U4 SOT23-5 Renesas 5 Pin SOT23 Package...
  • Page 9 RTKA-BDGSTKEV2Z 2. Design Considerations RTKA-BDGSTKEV2Z Evaluation Board Layout Figure 7. Top Layer Figure 8. Bottom Layer Figure 9. Top Assembly Drawing Figure 10. Bottom Assembly Drawing R12UZ0045EU0200 Rev.2.00 Page 9 of 14 Jul.9.19...
  • Page 10 - - &20% 12$ 811$0('BB,6/B,B 811$0('BB605(6B,B% 12% ,6/,5= &20$ - 12% 12$ 811$0('BB605(6B,B$ (1$%/($ 12$ 811$0('BB+($'(56B,B,1 - - $''$ (1$%/(% $''% 9 - 811$0('BB605(6B,B$ $''$ ,6/&)+=7. 811$0('BB605(6B,B$ 811$0('BB605(6B,B$ 811$0('BB605(6B,B$ 811$0('BB605(6B,B$ 57.$%'*67.(9= 5(9 $  Figure 11. RTKA-BDGSTKEV2Z Strain Gauge Schematic...
  • Page 11 2) 7+( %2$5' & 9 811$0('BB5)-%&$1$B,B 9 6'25'< < 6&/. &6 811$0('BB5)-%&$1$B,B $''% 5)-%&$1$ 811$0('BB,1'B,B$ $''$ 6&/ 3 811$0('BB5)-%&$1$B,B 811$0('BB5)-%&$1$B,B 811$0('BB5)-%&$1$B,B 811$0('BB5)-%&$1$B,B 811$0('BB5)-%&$1$B,B 811$0('BB5)-%&$1$B,B 811$0('BB,3&=B,B 811$0('BB,3&=B,B 811$0('BB60/('B,B$ 9 < & & 811$0('BB60&$3B,B% 3) 3) 1;*$0 Figure 12. RTKA-BDGSTKEV2Z MCU Schematic...

  • Page 12: Revision History

    RTKA-BDGSTKEV2Z 3. Revision History Revision History Rev. Date Description 2.00 Jul.9.19 Updated Bill of Materials 1.01 Jun.5.19 Updated ISL21010 information. 1.00 Apr.5.19 Initial release. R12UZ0045EU0200 Rev.2.00 Page 12 of 14 Jul.9.19...

  • Page 13: Corporate Headquarters

    Koto-ku, Tokyo 135-0061, Japan version of a document, or your nearest sales office, please visit: www.renesas.com www.renesas.com/contact/ Trademarks Renesas and the Renesas logo are trademarks of Renesas Electronics Corporation. All trademarks and registered trademarks are the property of their respective owners.
  • Page 14 RTKA-BDGSTKEV2Z Renesas Electronics Corporation www.renesas.com R12UZ0045EU0200...
