RTKA211250DE0010BU
The RTKA211250DE0010BU board evaluates the
RAA211250
(HTSSOP version), a DC/DC
synchronous step-down regulator with programmable
switching frequency.
The RAA211250 supports a wide input voltage range
(from 4.5V to 30V) and adjustable output voltage. It
delivers up to continuous 3A output current with
premium load regulation and line regulation
performance.
V
IN
Up to 30 V
C
IN1
R16UZ0038EU0101 Rev.1.01
Oct 7, 2022
VIN
C
IN2
R
IN1
EN
R
IN2
RAA211250
PGND
VCC
FS
VCC
SS
PG
AGND

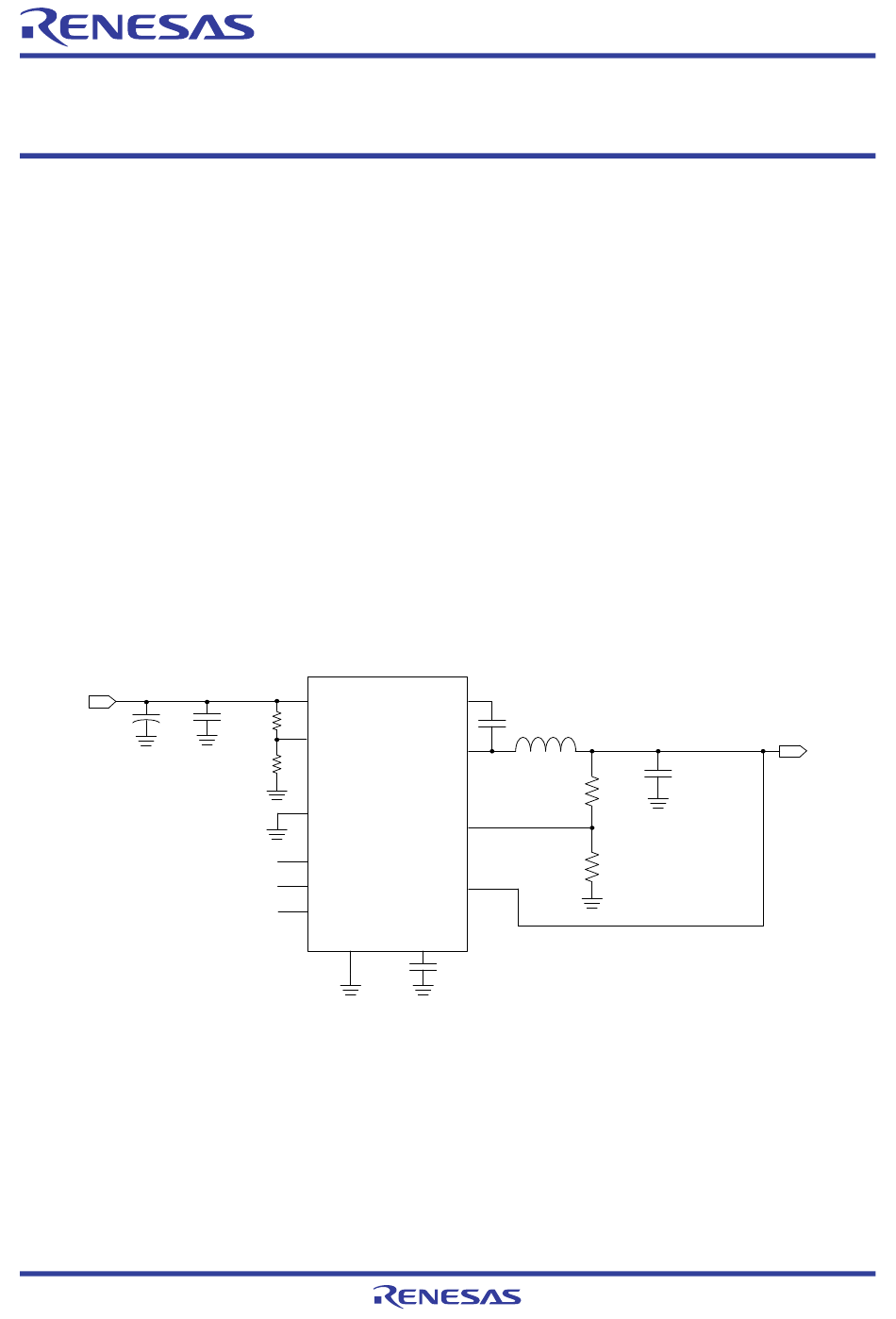

Figure 1. Simplified Circuit
Evaluation Board Manual
Features
▪ Simple and flexible design
▪ 4.5V to 30V V
▪ Convenient power conversion
Specifications
The following are the design specifications for the
RTKA211250DE0010BU:
▪ Input voltage (V
▪ Output voltage (V
▪ Maximum output current: 5A
BST
C
BOOT
SW
L
R
FB1
FB
R
FB2
EBIA
S
VCC
C
VCC
range
IN
): 4.5V to 30V
IN
): 3.3V
OUT
V
3.3V
OUT
C
OUT
3×47µF
© 2022 Renesas Electronics
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTKA211250DE0010BU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renesas RTKA211250DE0010BU

Summary of Contents for Renesas RTKA211250DE0010BU

  • Page 1 Evaluation Board Manual RTKA211250DE0010BU Features The RTKA211250DE0010BU board evaluates the RAA211250 (HTSSOP version), a DC/DC ▪ Simple and flexible design synchronous step-down regulator with programmable ▪ 4.5V to 30V V range switching frequency. ▪ Convenient power conversion The RAA211250 supports a wide input voltage range (from 4.5V to 30V) and adjustable output voltage.

  • Page 2: Table Of Contents

    RTKA211250DE0010BU Evaluation Board Manual Contents Functional Description ..............3 Operational Characteristics .

  • Page 3: Functional Description

    The RAA211250 (HTSSOP version) is an easy-to-use synchronous Buck switching regulator with integrated 90mΩ (high-side) and mΩ (low-side) MOSFETs. The RTKA211250DE0010BU board demonstrates the operations of RAA211250 (HTSSOP version). The board allows you to evaluate the performance of the part with different application circuits, and it also provides you a reference for board layout.

  • Page 4: Board Design

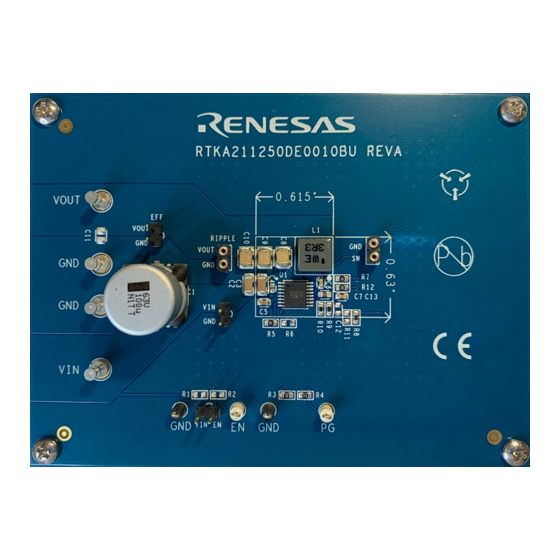

    RTKA211250DE0010BU Evaluation Board Manual Board Design Figure 3. RTKA211250DE0010BU Evaluation Board (Top) Layout Guidelines For detailed layout guidelines reference the Layout Guidelines section in the RAA211250 Datasheet. R16UZ0038EU0101 Rev.1.01 Page 4 Oct 7, 2022...
