Renesas RTKA223012DR0050BU Manual

RTKA223012DR0050BU, RTKA223012DR0060BU

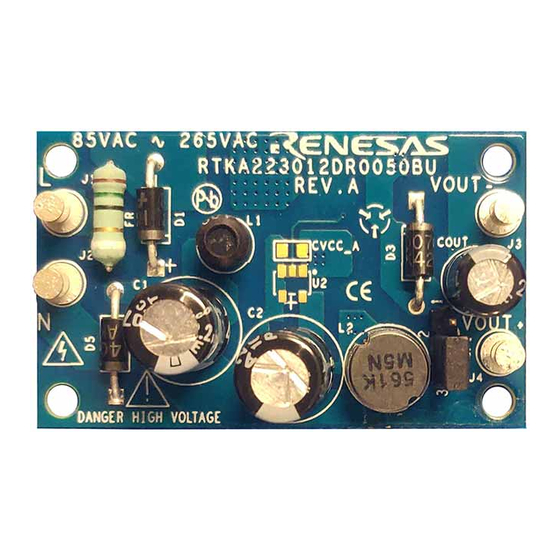

The RAA223012 demonstration boards
(RTKA223012DR0050BU and
RTKA223012DR0060BU) are high voltage buck or
buck/boost converters that demonstrate low-cost high
performance non-isolated AC/DC conversion from a
universal input of 85V
AC
a -5V with the output current up to 150mA.
The board can be configured to a Buck or a
Buck/Boost converter by using jumper (JP1) without
changing the output polarity. It has built-in
overcurrent, short-circuit, input brownout, and
over-temperature protection, and is designed on a
compact PCB with a low-cost half-wave input
rectification. It is pre-compliant with conducted and
radiated EMI requirements by EN55022/CISPR22
and the 1.5kV surge test by IEC61000-4-5 standard.
RTKA223012DR0050BU comes with a RAA223012
in a SO8 package. RTKA223012DR0060BU comes
with a RAA223012 in aSOT23-5 package.
R16UZ0016EU0102 Rev.1.2
Jul 28, 2021
to 265V , to a 5V output or
AC
Demonstration Board Manual
Features
▪ Universal input range
▪ Compact PCB with low-cost external components
▪ EMI compliance for EN55022/CISPR22
▪ Surge test compliance to IEC61000-4-5 up to
1.5kV
▪ Standby power less than 10mW
▪ No audible noise
Specifications
This board is optimized for the following operating
conditions:
▪ Input voltage: 85V
AC
▪ Output voltage: 5V
DC
▪ Output current: 150mA maximum
▪ Output power: 0.75W
▪ Efficiency: >62.5% at 100% load; 65% at 50% load
(Buck); >61% at 100% load; 63% at 50% load
(Buck/Boost)
▪ No-load power: <10mW at 230V
▪ Load regulation: -3%, load range 10% to 100%
▪ Operating temperature: -45~85°C
▪ Board dimension: 48mm x 29mm
~ 265V
AC
or -5V
DC
AC
