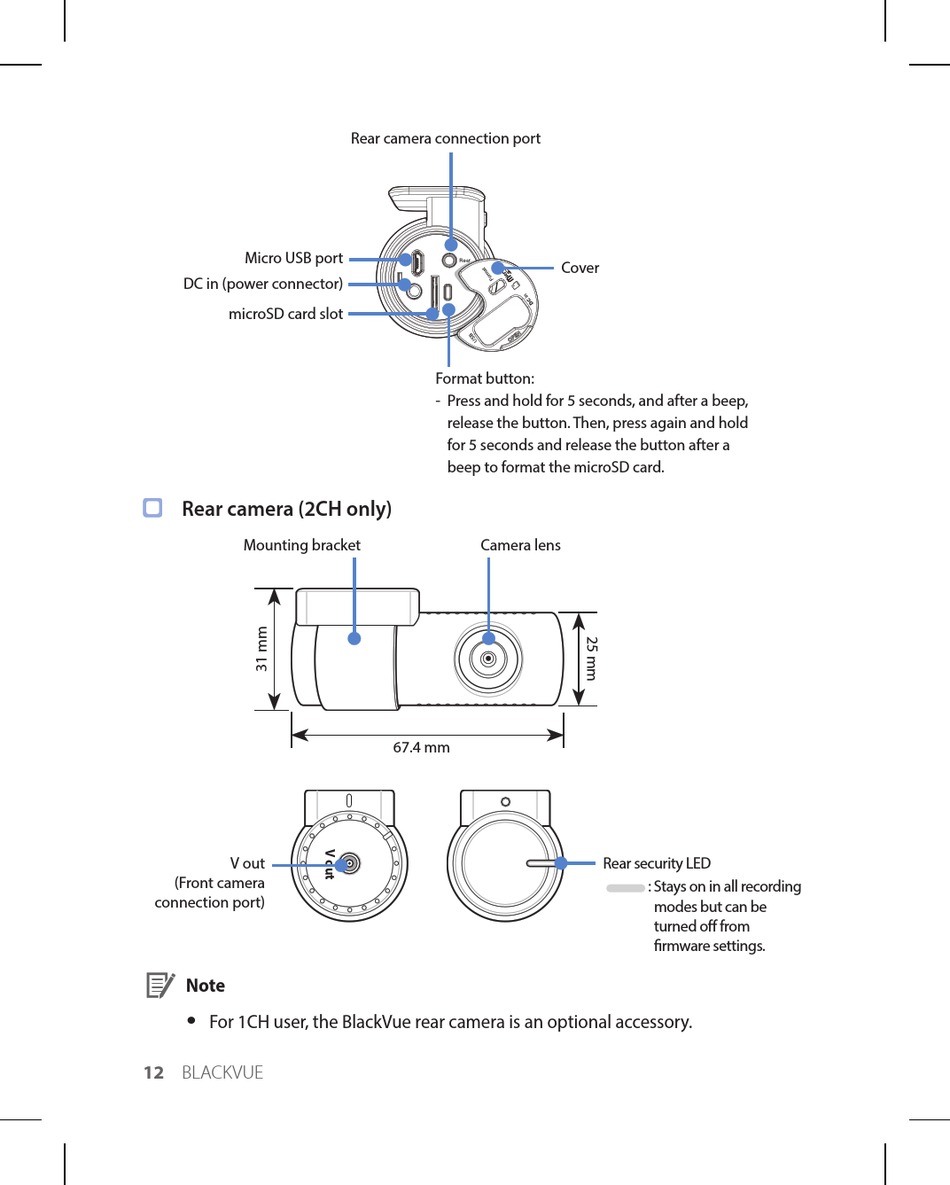

Micro USB port
DC in (power connector)
microSD card slot
Rear camera (2CH only)
Mounting bracket
V out
(Front camera
connection port)
Note
y For 1CH user, the BlackVue rear camera is an optional accessory.
12 BLACKVUE
Rear camera connection port
Format button:
- Press and hold for 5 seconds, and after a beep,
release the button. Then, press again and hold
for 5 seconds and release the button after a
beep to format the microSD card.
Camera lens
67.4 mm
Cover
Rear security LED
: Stays on in all recording
modes but can be
turned off from
firmware settings.
