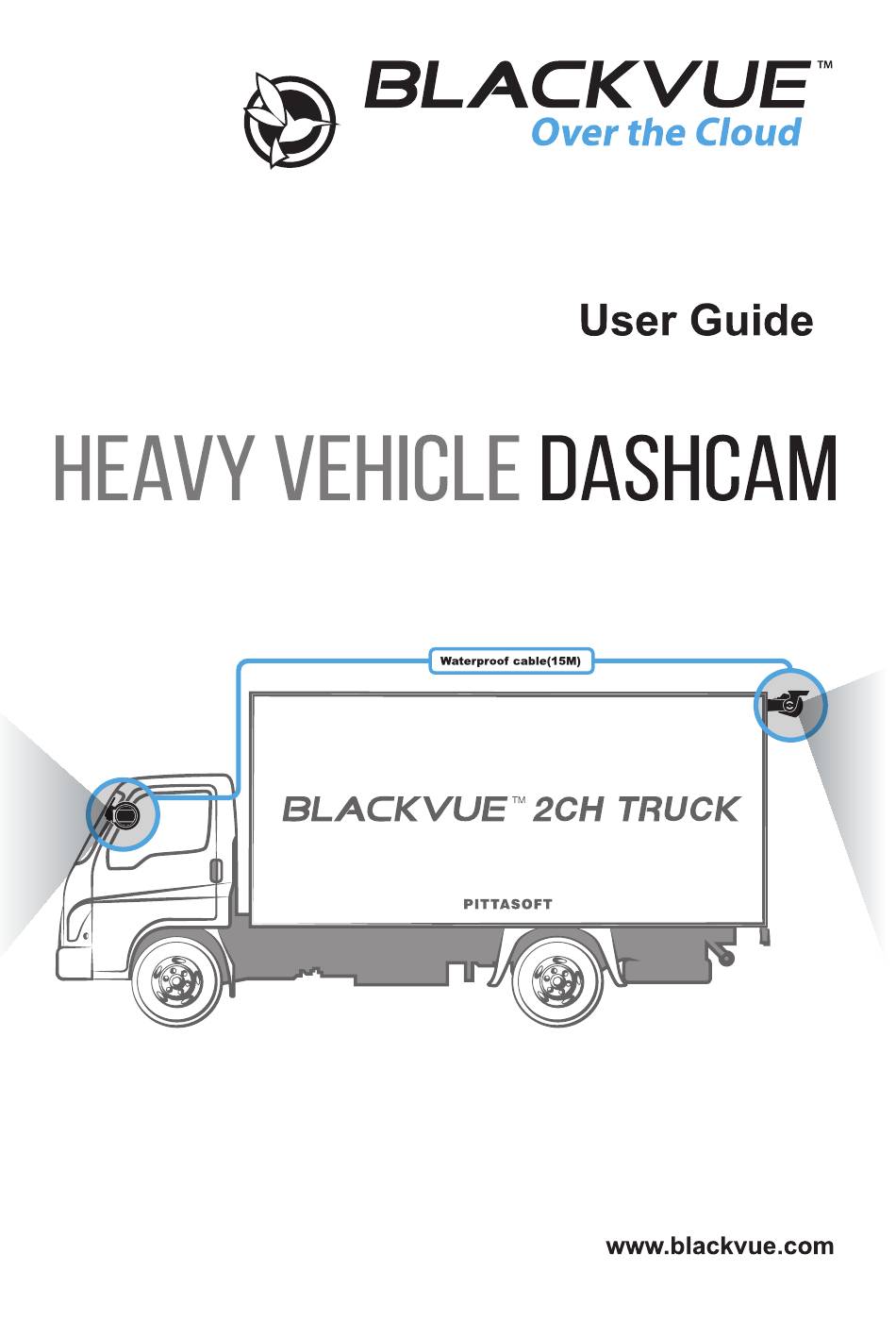

- Page 1 DR750S-2CH Truck...
- Page 2 BLACKVUE DR750S-2CH Truck For manuals, customer support and FAQs go to www.blackvue.com...
- Page 3 In the box Check the box for each of the following items before installing the BlackVue dashcam. Front camera External rear camera Rear camera connection Power cord cable (15m long waterproof) Double-sided tape and screws for the microSD Card mounting brackets...
-
Page 4: Front Camera
At a glance The following diagrams explain each part of the BlackVue dashcam. Front camera 118.5 mm Lock button Camera lens Mounting bracket Front security LED : Blinks slowly during normal mode and parking mode motion detection standby. : Blinks quickly when (i) an event is being... - Page 5 : Blinks when connected to the internet (Cloud connected). Proximity Sensor: Touch or wave a finger within 20mm of the sensor to turn on/off audio recording. Alternatively, it can be set as a manual recording trigger in the firmware settings. DR750S-2CH Truck...
-
Page 6: Rear Camera
The rear camera housing is completely dust-proof and waterproof (tested to function normally after being immersed in 1m of water for 30 minutes). The integrated hood helps shield the lens from the elements. BLACKVUE... - Page 7 Adjust the angle of the lens by rotating the body of the front camera. We recommend pointing the lens slightly downwards (≈10° below horizontal), so as to record video with a 6:4 road to background ratio. DR750S-2CH Truck...
- Page 8 Note y If the waterproof coaxial cable is mounted externally, we recommend covering it to secure it in place and protect it against the elements. Plug the power cord into the cigarette lighter socket and the front camera. BLACKVUE...
- Page 9 Rear camera connection cable Power cord Turn on the engine. The BlackVue dashcam will power up and start recording. Video files are stored on the microSD card. When the microSD card fills up, the newest video files will start to replace the oldest video files (called loop recording) – so you will always have the most recent video files.
-
Page 10: Product Specifications
Product specifications Model Name DR750S-2CH Truck Front: Black / Width 118.5 mm x Height 36 mm / 90g Color/Size/Weight Rear: Black / Width 70.0 mm x Height 44.4 mm / 180g Memory microSD Card (16GB / 32GB / 64GB / 128GB) - Page 11 Adaptive Format Free File Management System * STARVIS is a trademark of Sony Corporation. The DR750S-2CH Truck model uses the same firmware as the DR750S-2CH model and has all of the same great features. For more information about using the DR750S-2CH Truck, please download the DR750S-2CH manual from www.blackvue.com >...
- Page 12 DR750S-2CH Truck...
