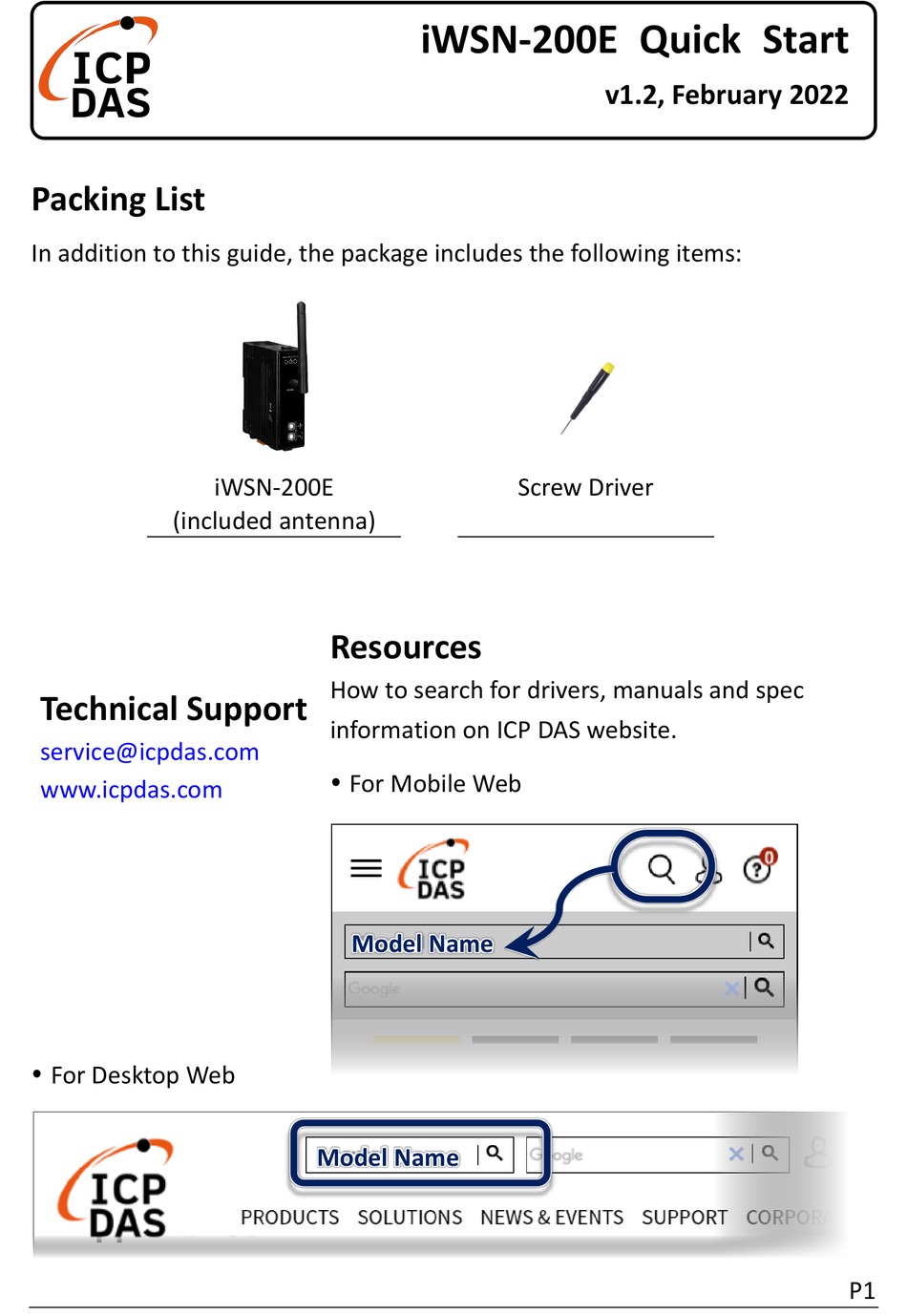

Packing List
In addition to this guide, the package includes the following items:
(included antenna)
Technical Support
service@icpdas.com
www.icpdas.com
For Desktop Web
iWSN-200E
Resources
How to search for drivers, manuals and spec
information on ICP DAS website.
For Mobile Web
Model Name
Model Name
iWSN-200E Quick Start
Screw Driver
v1.2, February 2022
P1
Advertisement
Table of Contents
Related Manuals for ICP DAS USA iWSN-200E
Summary of Contents for ICP DAS USA iWSN-200E
- Page 1 Quick Start v1.2, February 2022 Packing List In addition to this guide, the package includes the following items: iWSN-200E Screw Driver (included antenna) Resources How to search for drivers, manuals and spec Technical Support information on ICP DAS website.
- Page 2 1. Appearance Number Instructions LED indicators Antenna connector (type RP-SMA) Rotary switch of Communication parameter setting Terminal and Ethernet port DIP switch of operation mode 2. Pin Assignments Number Name Instructions Ethernet port RJ-45 and supply interface PoE power +10V~+30VDC Ground F.G.
- Page 3 3. Communication Parameter Rotary Instructions switch 0 ~ F = ch 0 ~ ch F Channel Group 0 ~ 7 = GID 0 ~ GID 7 8 ~ F = Reserved, fix GID 0 4. LED Indicators The module provides three LED indicators, including power, wireless transmission and wireless reception status.
- Page 4 Confirm both firewalls of Windows and antivirus software has closed or correct setting in your computer to avoid “Search Server” function in chapter 6 can’t search to iWSN-200E. (Please conform to your administrator) Connecting iWSN-200E and computer to same Hub/Switch or...
- Page 5 B. Double click the eSearch Utility shortcut icon in desktop. C. Click “Search Server” button to search your iWSN-200E. D. Double click your iWSN-200E to open “Configure Server (UDP)” configuration dialog. The factory default values of iWSN-200E as below table: IP Address 192.168.255.1...
- Page 6 F. After 2 seconds, click “Search Server” to search iWSN-200E, and confirm the network configuration of previous step whether be correct set. 二、Using browser Note: If your using browser is Internet Explorer, in order to ensure the web server of iWSN-200E can display properly, please be sure to close the IE cache first, the step as below: (If your using browser isn’t Internet Explorer, please skip these...
- Page 7 A. After key in password in Login password field, click “Submit” button. Default password： admin B. After click “Network” item, the web will display IP Address Selection page. Key in network configurations (IP/Mask/Gateway), and click “Update Setting” button. C. After click “Port1” item, the web will display Setting page. Key in Port number, and click “Submit”...
- Page 8 “Tools” ”Modbus TCP Master” to open Modbus TCP Master Utility. B. Key in the IP address of iWSN-200E in Modbus TCP Master, and then click ”Connect” button to connect iWSN-200E. C. Key in Modbus command such as: 1 2 0 0 0 6 1 4 0 1 0 1 in command field, and then click “Send command”...
