- Page 1 INSTRUCTIONS FOR USE C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION FANTINI COSMI S.p.A. Via dell’Osio, 6 20049 Caleppio di Settala, Milano - ITALY Tel. +39 02 956821 | Fax +39 02 95307006 | info@fantinicosmi.it www.fantinicosmi.it...
-
Page 2: Package Contents
The documentation reflects the characteristics of the product. However, due to regulatory or commercial developments, customers are advised to check the availability of updates to this documentation on the website at FANTINI COSMI S.p.A. pdf.fantinicosmi.it, by framing the QR-code you will be directed directly to the link. -
Page 3: Table Of Contents
4.2 - C800WIFI-APP SYNCHRONISATION ........25 EDITABLE FUNCTIONS/PARAMETERS ......5 4.3 - PROGRAMMING C800WIFI ..........26 MODEL C800WIFI ............6 4.4 - GENERAL SETTINGS FOR THE C800WIFI ......29 DESCRIPTION OF DISPLAY KEYS ........7 5 - TECHNICAL FEATURES ..........48 1 - INSTALLATION ............8 6 - DISPOSAL .............. -
Page 4: Operation

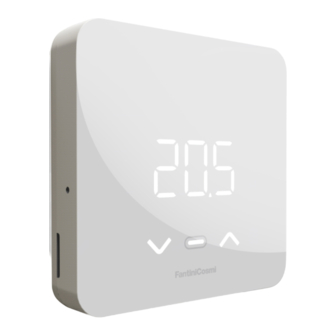

PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION OPERATION The C800WIFI is a programmable LED thermostat with WIFI connection and integrated relay equipped with a temperature and relative humidity sensor which allows the management of heating and cooling in flats. Equipped with a “virtual” graphic interface that can be used via the APP, it optimises use of the room heating and cooling system with Artificial Intelligence algorithms, with the aim of providing the best conditions of comfort with the lowest possible consumption. -
Page 5: Editable Functions/Parameters
Upper and lower temperature limits (Summer/Winter) Programmable Thermostat LED brightness level WIFI activation AP (Access Point) activation Communication time between C800WIFI and Server (8 levels) AUTO profile programming Consumption display (system switch-on hours) Daylight Saving Time setting APP language selection... -
Page 6: Model C800Wifi
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION MODEL C800WIFI C800WIFIQ front + square base C800WIFIR front + rectangular base C800AL mains power supply C800WIFIPRO = C800WIFIQ + rectangular base + C800AL... -
Page 7: Description Of Display Keys
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION DESCRIPTION OF DISPLAY KEYS Reset switch Down key - Decreases Mode key + Heating/cooling LED Up key - Increases Temperature and basic functions display... -
Page 8: Installation
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 1 - INSTALLATION ATTENTION! Installation must be carried out by qualified personnel in compliance with the requirements concerning the installation of electrical devices. ATTENTION! Make sure that the power supply is disconnected before performing installation. - Page 9 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION It must be installed at a height of about 1.5 m above the floor in a suitable position to correctly detect the room temperature. 1.5 m...
-
Page 10: Wall Mounting
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 1.1 - WALL MOUNTING (battery-powered) Break the feet behind the square or rectangular base. Connect the wires of the boiler contact to the relay. Fasten the base to the wall with the 2 screws. -
Page 11: Flush Mounting (230V~Mains Supply)
1.2 - FLUSH MOUNTING (230V~mains supply) Connect the leads to the C800AL power supply. Connect the cables (boiler contact to relay + power supply) coming out of the C800AL to the base of the C800WIFI. Power supply 3.3 VDC ON-OFF relay Attach the 4 feet of the baseplate to the C800AL. - Page 12 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION Attach the feet behind the base of the C800WIFI Powering the C800AL. (square or rectangular) to the C800AL. 230 Vac ON-OFF relay Note: ■ Square base for box type 500 and 502 ■ Rectangular base for box type 503 Built-in box 500 - 502.
-
Page 13: Battery Replacement
Note: 120s maximum battery change time to avoid losing programming time settings. When changing batteries perform a RESET (as indicated in paragraph “3.3 - RESET”). Synchronisation with the APP is also recommended (as indicated in paragraph “4.2 - C800WIFI-APP SYNCHRONISATION”). -
Page 14: Electrical Connection
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 2 - ELECTRICAL CONNECTION ATTENTION! Electrical connections must be made by qualified personnel. ATTENTION! Electrical connection operations must be done with the system’s power disconnected. Electrical connections must be made referencing the following diagrams. -
Page 15: Programming Guide
PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 3 - PROGRAMMING GUIDE 3.1 - LETHARGY STATUS If the C800WIFI is detached from the wall plate, it is insensitive to any stimulus. Once reconnected to the wall plate, the C800WIFI enters stand-by status: in this state the device is waiting to resume the operating conditions and shows the display always off. -
Page 16: Reset
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 3.3 - RESET When powering up for the first time and if necessary, reset the device by pressing the Reset Switch on the side with a tip. After a few seconds, the device enters stand-by. -
Page 17: Change Mode (Man - Auto - Off)
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 3.5 - CHANGE MODE (MAN - AUTO - OFF) Press the MODE key (for 1s) to switch to the View Mode screen. Press the UP key or DOWN key to change the operating mode. -
Page 18: Change Setpoint Temperature
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 3.6 - CHANGE SETPOINT TEMPERATURE From the View Temp screen, press the UP or DOWN key (for 3s) to switch to the View Setpoint screen. Press UP or DOWN key to change the setpoint temperature. -
Page 19: Last Communication Status Display
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 3.8 - LAST COMMUNICATION STATUS DISPLAY From the View Temp screen, press the MODE key (for 3s) to switch to the View Communication screen. Digit 2* The status of the last communication is displayed. Pressing the MODE key returns you to the View Temp screen. -
Page 20: Battery Status Display
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 3.9 - BATTERY STATUS DISPLAY In the case of low batteries, instead of viewing the status of the last communication from the View Temp screen, pressing the MODE key (for 3s) switches to View Battery. -
Page 21: Access Point
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 3.11 - ACCESS POINT Press the Reset Switch on the side with a tip. Press the UP and DOWN keys simultaneously for 3 seconds. Note: Put the device in AP to associate it with the Intelliclima+ APP. The MAC address and Serial Number of the device are indicated on the label inside the product (see image). -
Page 22: Programming Via App
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 4 - PROGRAMMING VIA APP Download the APP Intelliclima+, available free of charge from the Google Play Store and Apple Intelliclima+ App Store. By framing the QR-code you will be directed directly to the link. - Page 23 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION The APP automatically detects the network with the strongest signal. The user can switch networks. Enter the network password and press the NEXT key. Activate the ACCESS POINT mode on the programmable thermostat as described in paragraph “3.11 -...
- Page 24 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION Press the OK key when it turns green. Wait for the APP to automatically search for the initial wifi network. If more than 10 seconds pass, press the WIFI SETTINGS key to search for the network manually.
-
Page 25: C800Wifi-App Synchronisation
3. 4.2 - C800WIFI-APP SYNCHRONISATION After installing the APP, force a transmission on the Programmable thermostat to synchronise data with the C800WIFI. From the View Temp screen, press the MODE key (for 3s) to switch to the View Communication screen. -
Page 26: Programming C800Wifi
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 4.3 - PROGRAMMING C800WIFI Home name Zone name Season Current relative humidity (RH) Current setpoint General App settings Home settings General settings for Programmable Thermostat Current room temperature Operating mode... - Page 27 CHANGE AUTO PROGRAMS”). Note: To preserve the programmable thermostat's battery life, the C800WIFI and the APP do not communicate in real time. The variable communication interval, which can be changed via the APP (see page 39) is such that changes made by the APP are not immediately taken over by the programmable thermostat, but it is necessary to wait a certain amount of time.
- Page 28 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 4.3.3 - OFF STATUS In OFF mode, the programmable thermostat is switched off.
-
Page 29: General Settings For The C800Wifi
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 4.4 - GENERAL SETTINGS FOR THE C800WIFI Press the icon shown to access the general settings list for managing the C800WIFI. Back to HOME Accesses the PROGRAM sub-menu Accesses the CONSUMPTION sub-menu Accesses the ADVANCED SETTINGS sub-menu... - Page 30 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 4.4.1 - CHANGE AUTO PROGRAMS Changing the weekly programs for AUTO mode (inherent to the chosen season). Different profiles can be created, edited, duplicated from the APP. Each day of the week can be associated with a different profile.
- Page 31 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION Click on the profile to change it. When you log in for the first time, the TUTORIAL with an indication of how to edit the profile is automatically displayed; otherwise, to display it again, press the HELP key.
- Page 32 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 4.4.1.1 - CHANGE AUTO TEMPERATURES Changing the Comfort (Sun) and Economy (Moon) temperatures for AUTO mode (inherent to the chosen season). Move the Temperature slider to Economy must be less than the Economy must be less than the Economy must be less than the Comfort.
- Page 33 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 4.4.2 - CONSUMPTION From the APP it is possible to view the consumption of the SYSTEM (hours of operation), of the programmable thermostat (BATTERY charging) and the ENERGY SAVINGS achieved through the smart functions of the C800WIFI.
- Page 34 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION Displays the CO savings obtained by activating the smart functions on the C800WIFI compared to traditional programmable thermostat operation calculated according to the climate zone to which it belongs. Saving CO is equivalent to planting new trees, while increasing emissions is equivalent to cutting them down.
- Page 35 SMART function - Adaptive Gain Control (AGC) SMART Function - Geolocation Changes season Changes various temperature limits Changes anti-freeze temperature Changes communication time between C800WIFI and APP Changes C800WIFI display brightness Changes adjustments (differential and offset) SMART function - perceived temperature Open window alarm...
- Page 36 This allows the C800WIFI to perform optimal start-up/shut-down control of the system to ensure the desired temperature at the desired time. Note: activation of this SMART function is only possible in AUTO mode. If AGC is active, the GEOLOCATION function cannot be managed and vice versa.
- Page 37 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 4.4.3.2 - ADVANCED SETTINGS: GEOLOCATION This function calculates the distance from home of your smartphone and adjusts the setpoint to avoid unnecessary energy waste when you are away from home. Note: activation of this SMART...
- Page 38 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 4.4.3.3 - MIN/MAX TEMP. ALARM Activates an alarm signal if the Room Temperature is lower than the set Minimum Temperature and/or higher than the set Maximum Temperature. 4.4.3.4 - ADVANCED SETTINGS: SEASON Changes the Season (Summer/Winter) of operation of the programmable thermostat.
- Page 39 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 4.4.3.5 - ADVANCED SETTINGS: TEMPERATURES Changes the max. and min. limits of the setpoint temperatures in Winter and Summer. Note: only qualified personnel should perform this modification. Move the slider to increase or decrease the limit temperatures.
- Page 40 PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 4.4.3.7 - ADVANCED SETTINGS: COMMUNICATION Changing communication between programmable thermostat C800WIFI and the APP. IMPORTANT: the shorter the set communication time, the higher the battery consumption. If the programmable thermostat is a C800WIFIPRO or powered via C800AL, we recommend setting communication to 1 minute.
- Page 41 PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 4.4.3.9 - ADVANCED SETTINGS: ADJUSTMENTS From the APP, you can change the control differential of the C800WIFI and the offset of the temperature read by the programmable thermostat. Note: both settings should be changed by trained personnel only.
- Page 42 (in yellow) instead of the room temperature read by the programmable thermostat. The C800WIFI will also show the perceived temperature on the display. 4.4.3.11 - ADVANCED SETTINGS: OPEN WINDOW ALARM Open window detection uses sudden temperature changes to detect whether a window is open. In this case, an alarm is sent and the programmable thermostat switches to Economy mode.
- Page 43 The user can decide whether or not to activate DAYLIGHT SAVINGS automatically or manually. He or she can also set a TIME ZONE different from the one automatically taken by the smartphone. Example: the C800WIFI is installed in a city other than the one you normally live in, with a different time zone from the smartphone.
- Page 44 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 4.4.4 - ZONE NAME Change the name of the zone where the programmable thermostat is installed. 4.4.5 - BACKGROUND Change the background of the zone where the programmable thermostat is installed. Note: you can take default photos...
- Page 45 APP compared to the “owner” user of the programmable thermostat. 4.4.8 - F.A.Q. Questions and answers about programmable thermostat C800WIFI It is possible to consult these questions and answers at the link www.fantinicosmi.it/faq-c800wifi/ or directly from the app with the F.A.Q.
- Page 46 C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 4.4.10 - DELETE PROGRAMMABLE THERMOSTAT Allows the programmable thermostat to be removed from the home with which it is associated. Note: the operation cannot be restored with a CLICK! You should reinstall the programmable thermostat from scratch, following all the steps.
- Page 47 PUSH notifications are the alerts that arrive on mobile phones if there are various anomalies in the operation of the Intelliclima+ system on FANTINI COSMI S.p.A. Note: only work on WIFI devices and if you activate data service on your smartphone.
-
Page 48: Technical Features
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 5 - TECHNICAL FEATURES Battery power supply 2 AA 1.5V alkaline batteries Battery life >1 year ( In STANDARD mode ) Nominal supply voltage (optional) 3.3 Vdc @1500 mA MAX Max. mains power consumption... -
Page 49: Disposal
C800WIFI PROGRAMMABLE LED THERMOSTAT WITH WIFI CONNECTION 6 - DISPOSAL The symbol of the crossed-out wheeled bin indicates that the products must be collected and disposed of separately from household waste. The batteries and integrated accumulators may be disposed of together with the product. - Page 50 FANTINI COSMI S.p.A. Via dell’Osio, 6 20049 Caleppio di Settala, Milano - ITALY Tel. +39 02 956821 | Fax +39 02 95307006 | info@fantinicosmi.it www.fantinicosmi.it...
