Swivel Lumilight Led - Zephyr Titan AK7754BS Use, Care And Installation Manual

Maintenance

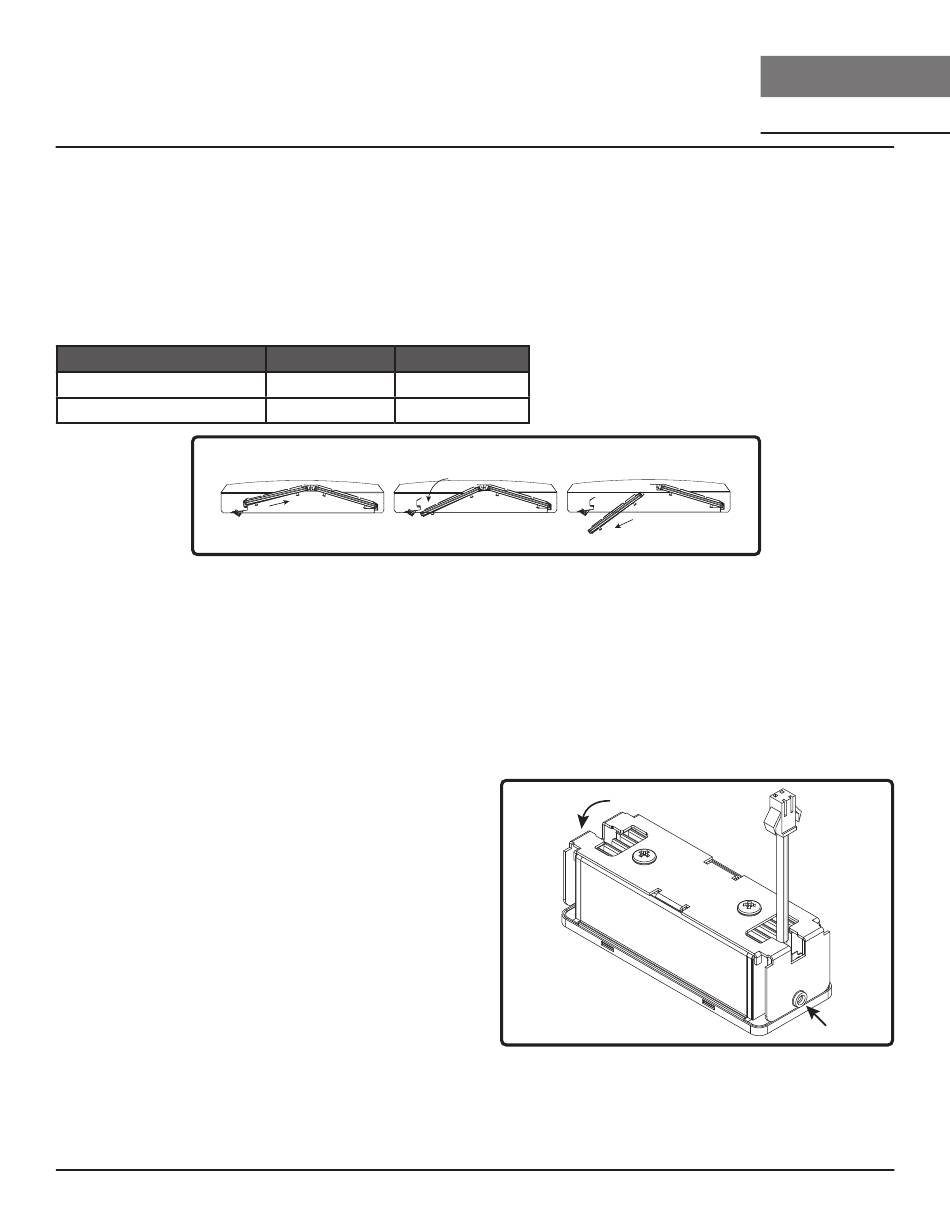

Removing Baffle Filters, FIG. K
1. Push filter away from front of range hood using handles.
2. Pivot front of filter downward.
3. Remove filter by pulling away from hood.
Replacing Baffle Filters
Hood Model
AK7736BS/AK7742BS
AK7748BS/AK7754BS

Swivel LumiLight LED

In the unlikely event that your swivel LumiLight LED fails, please contact Zephyr to order replacement
parts. See the list of parts and accessories page for part numbers and contact information.
LED Removal, FIG. L
1. Remove grease filters.
2. (If applicable) remove both side spacer panels
for each spacer panel.
3. Remove screws on light panel.
4. Disconnect LED light quick connector.
5. Remove (2) screws from the sides per LED light.
6. Push LED light through the light panel opening.
24
2
3
1
Part Number Qty. to Order
50210036
50210036
1
4
6
2
FIG. K
Titan Island Use, Care, and Installation Guide
