2.1.4 PCIE Socket

BMC228A PCIE socket is X4 (Figure 6①)and can be used for X4, X8, X16. Its PCI Express
Protocol standard is V2.0 (Gen2) and the BMC228A motherboard requirements are as shown in
Table 2-3.

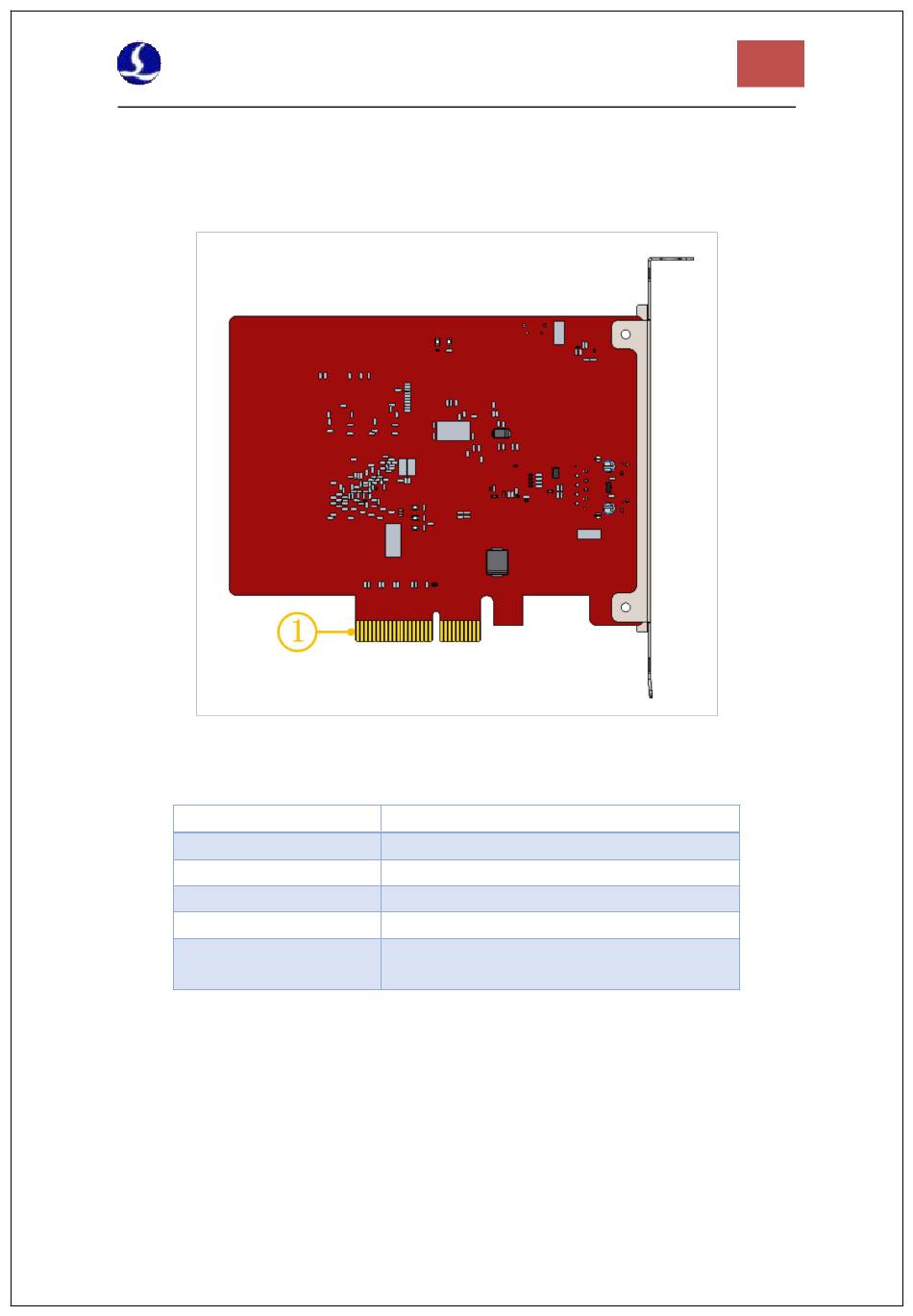

Figure 6 Gold Fingers
System 64-Bit Win7/10
CPU Intel i3 8100 and up
Memory 4GB and up
PCIE Socket X4 and up
PCI Express PCI Express2.0 (Gen2) and up
Motherboard PCIE power 12V/1A and up
supply
Table 2-3 Motherboard Requirements
