Axes are defined in the table below.
Pin
1 yellow
2 blue
3 black
4 orange
5 red
6 green
7 green
blac
k
8 brown
+24V, 0V: 24VDC power for the servo driver.
PUL: digital signal, pulse signal for the driver.
DIR: digital signal, direction signal for the driver.
SON: output servo drive enable signal.
ALM: Receive the alarm signal of the servo drive.
A+, A-, B+, B-, Z+, Z-: three phases of the encoder, input signal.
Please refer to the figure below for the wiring with the Yaskawa servo drive.
Yaskawa Servo Wiring
FSCUT2000E User Manual
Figure 9 Servo drive interface

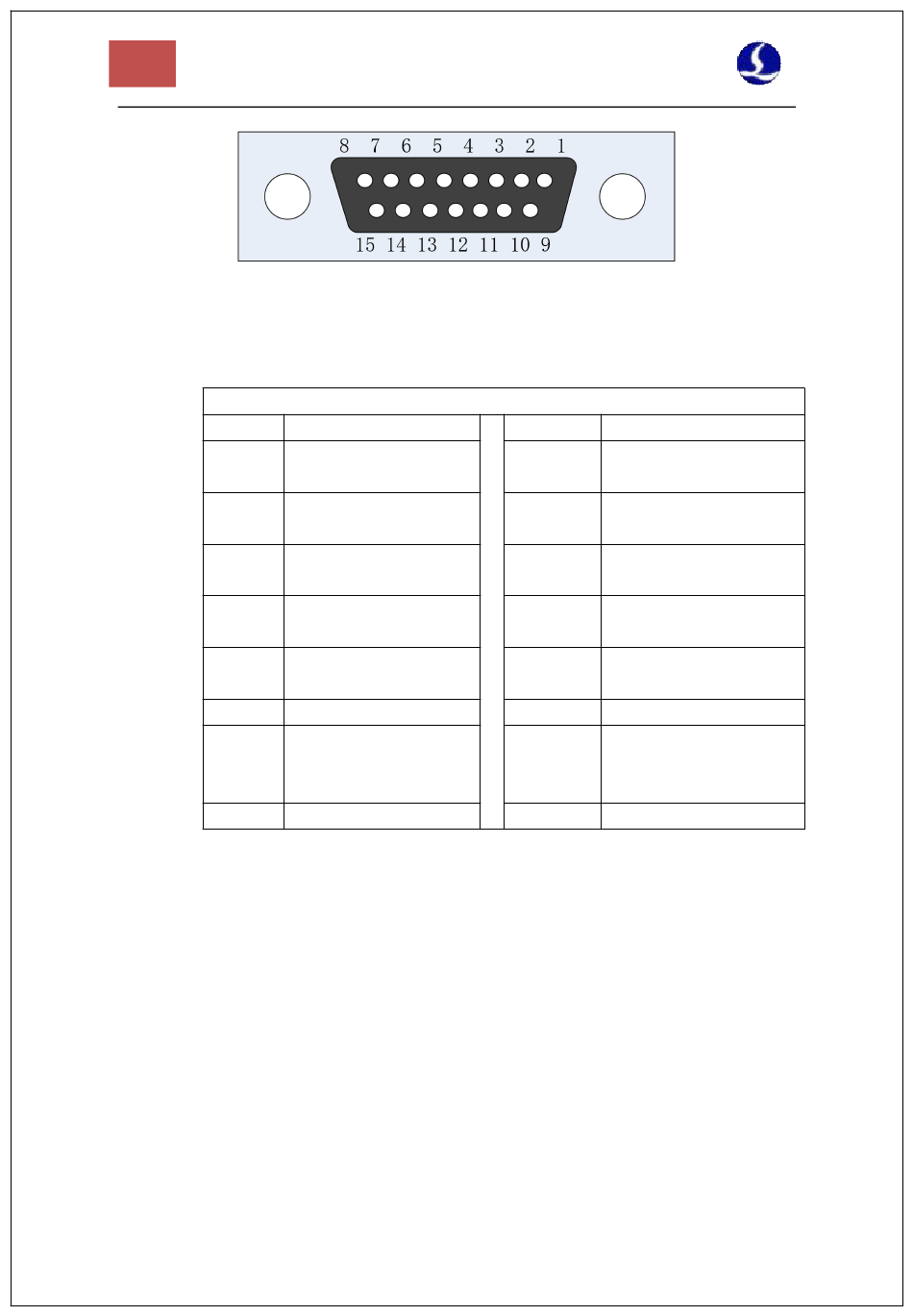

Servo Axis Interface Definition
15-pin Female Servo Control Interface
Signal name
PUL+
DIR+
A+(encoder)
B+(Encoder)
Z+(encoder)
SON(servo enable)
-
24V(power output)
Pin Signal name
9 yellow PUL-
black
10 blue DIR-
black
11 black A-(encoder)
white
12 orange B-(encoder)
black
13 red Z-(encoder)
black
14 purple ALM(alarm)
15 brown 0V(power ground)
black
