Chapter 2 Wiring Instruction

2.1

BMC228A Installation

BMC228A Control Card is a motion control card based on the EtherCAT Its 1.0Ghz
main chip provides excellent overall performance and has passed Friendess stringent testing
standards.
BMC228A
EtherCAT Control
Card
Bus Protocol
PCI Express
Power Supply
Anti-interference
Level
Dimension
Weight
Cooling
Operating
Environment
Storage temperature
Humidity
Certification
The waterproof and dustproof grade of the Control Card is IP00, unprotected. Please place the
computer in a clean, dust-free environment.
FSCUT2000E User Manual
EtherCAT Master Protocol
PCI Express2.0 (Gen2)
Powered by PCIe motherboard, max 12V/1A, no hot plug
ESD 3 (6kV contact, 8kV air), EFT 4 (4kV power supply, 2kV signal),
Surge international 2 (2kV AC line, 1kV DC line)
Dimension and Weight
(L x W x H) 127.6mm x121.0mm x21.45mm
Feature
0% to 90% (non-condensation
Environment Requirement

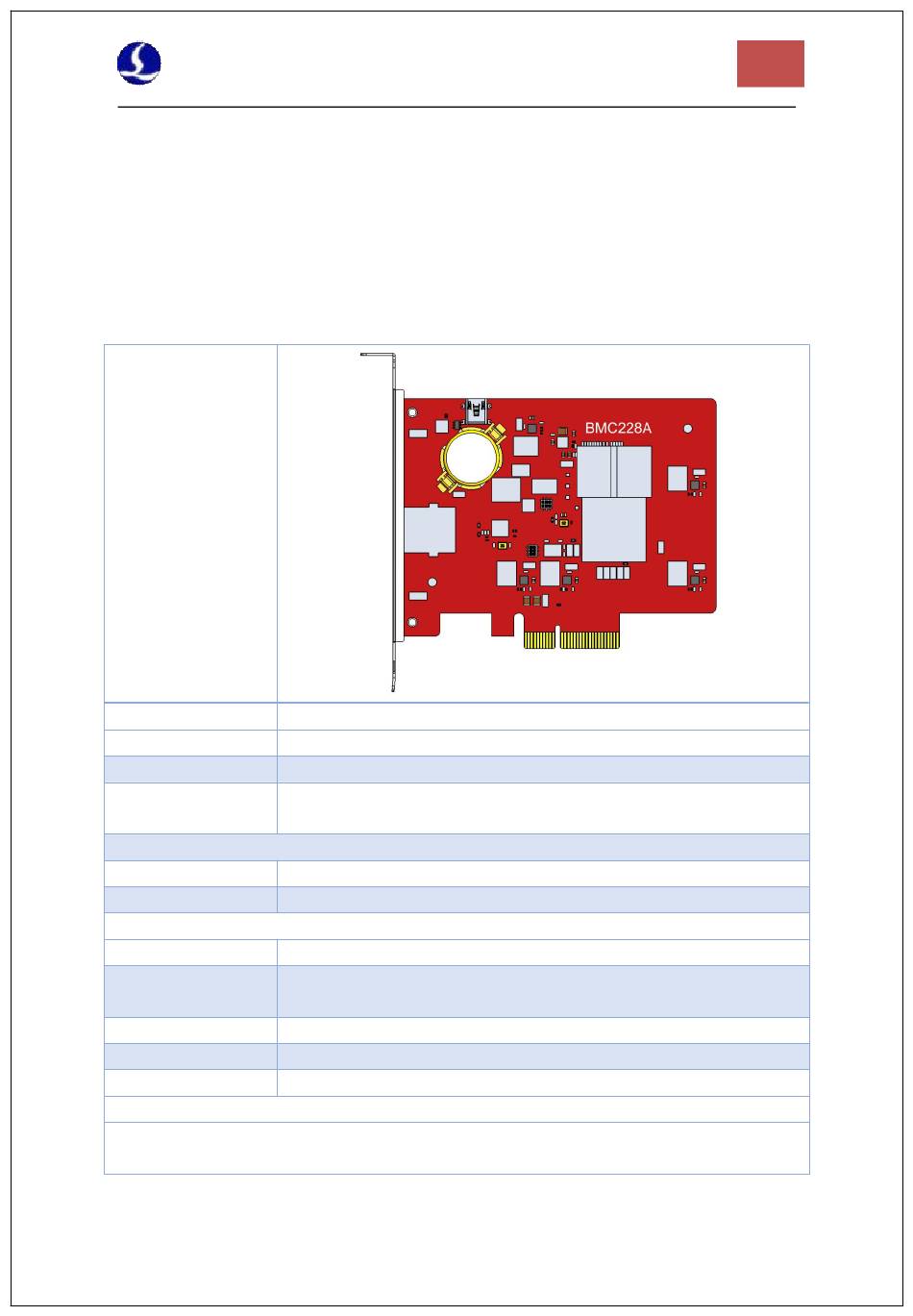

Table 2-1 BMC228A Technical Data
80g
Nature Cooling
0~+60℃
-20~+70℃
CE
